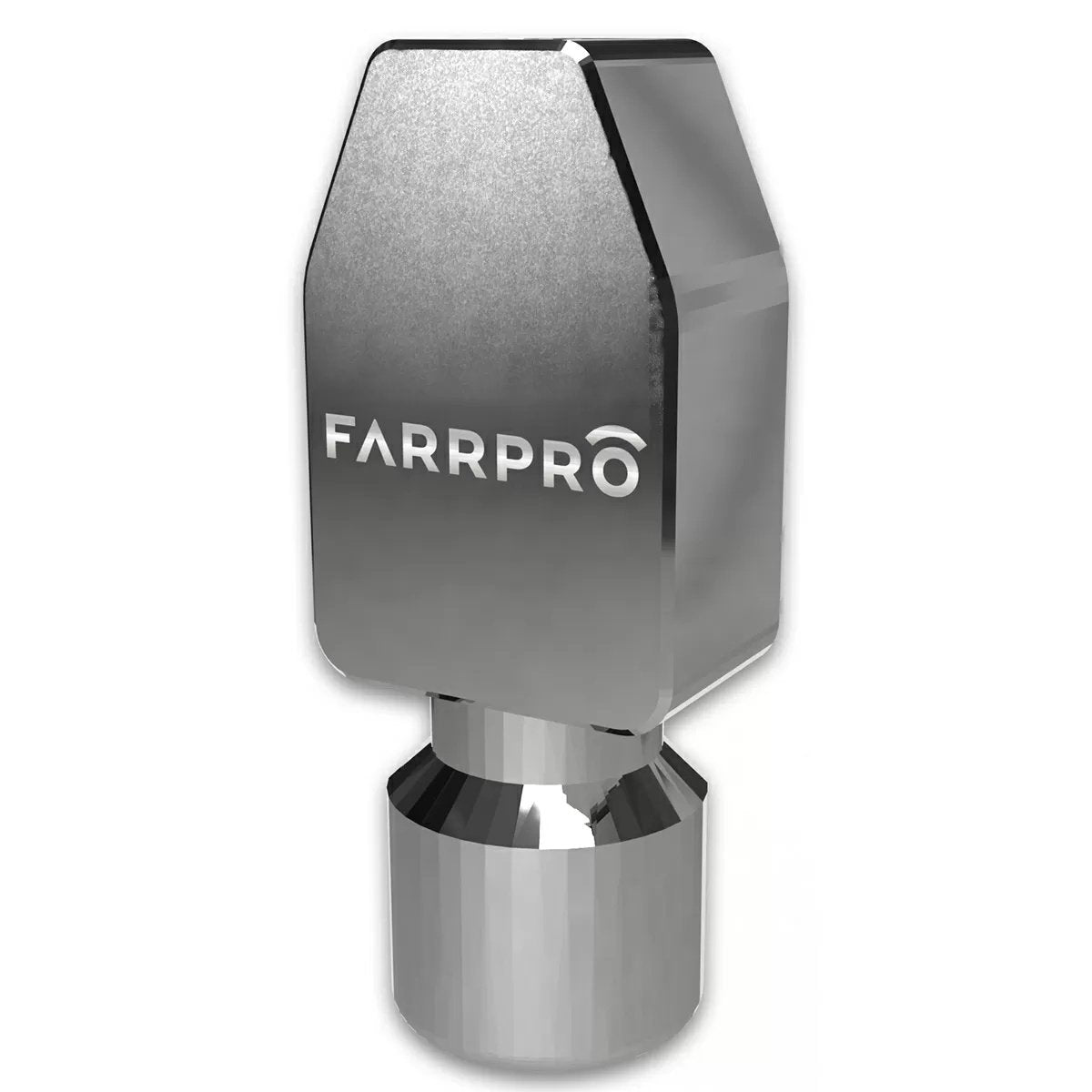

OmniJet Pressure Washing Nozzles 3.0 8.0
More about OmniJet Pressure Washing Nozzles 3.0 8.0
Constructed from a single piece of stainless steel with no moving parts, these 3.0-8.0 OmniJet Nozzles outperform rotary turbo nozzles both in power and lifespan. They require no maintenance, they don’t suffer from jams, and they all come backed by an industry-leading 2-year manufacturer warranty.
OmniJet’s innovative use of fluid dynamics and unique internal geometry create an oscillating 30° sweeping jet spray pattern. This side-to-side oscillation is superior to the spray pattern of fan jet nozzles because it distributes the water better and it results in more efficient cleaning. The water droplets projected from an OmniJet Nozzle are larger than those seen in traditional nozzles. They land with more force and maintain a higher temperature for increased cleaning power, while also saving you time and money.
Features
- Utilizes innovative fluid dynamics to create an oscillating spray
- Sprays in large droplets for more cleaning power
- Greatly reduced water usage
- The larger droplets help to maintain a higher temperature upon impact
- 6 times more durable than roto-tip nozzles
- 2/3 lighter than roto-tip nozzles
- Less vibration and significantly quieter than roto-tip nozzles
- Industry-leading 2-year manufacturer warranty
- Robust spraying
- Bulletproof design
- Single-piece stainless steel construction
- No moving parts
- Lightweight design for easy maneuvering
Specifications
- Size: 2.25" x 0.9" x 0.55"
- Connection Type: 1/4" female NPT
- Spray Angle: 30°
- Pressure Range: 870-3,200 PSI
Available Sizes
- QC Part #111033 - Size 3.0, 0.218 lbs
- QC Part #111034 - Size 4.0, 0.214 lbs
- QC Part #111035 - Size 4.5, 0.214 lbs
- QC Part #111036 - Size 5.0, 0.212 lbs
- QC Part #111037 - Size 5.5. 0.209 lbs
- QC Part #111038 - Size 6.0, 0.207 lbs
- QC Part #111039 - Size 6.5, 0.207 lbs
- QC Part #111040 - Size 7.0, 0.313 lbs
- QC Part #111041 - Size 8.0, 0.311 lbs
Omnijet Nozzle Chart
| QC Part # | Nozzle Size | 1,000 PSI | 1,500 PSI | 2,000 PSI | 2,500 PSI | 3,000 PSI | 3,500 PSI | 4,000 PSI | 4,500 PSI |
|---|---|---|---|---|---|---|---|---|---|
| 111033 | 3 | 1.65 | 2.07 | 2.33 | 2.64 | 2.93 | 3.31 | 3.31 | 3.84 |
| 111034 | 4 | 2.28 | 2.76 | 3.11 | 3.51 | 3.78 | 4.12 | 4.56 | 5.12 |
| 111035 | 4.5 | 2.60 | 3.11 | 3.71 | 3.94 | 4.38 | 4.74 | 5.19 | 5.76 |
| 111036 | 5 | 2.91 | 3.46 | 4.08 | 4.42 | 4.72 | 5.35 | 5.82 | 5.82 |
| 111037 | 5.5 | 3.23 | 3.80 | 4.49 | 4.76 | 5.30 | 5.97 | 6.46 | 6.46 |
| 111038 | 6 | 3.52 | 4.15 | 4.91 | 5.55 | 5.76 | 6.51 | 7.04 | 7.04 |
| 111039 | 6.5 | 3.81 | 4.49 | 5.02 | 5.62 | 6.22 | 7.04 | 7.62 | 7.62 |
| 111040 | 7 | 3.91 | 4.75 | 5.57 | 6.09 | 6.68 | 7.57 | 7.82 | 8.20 |
| 111041 | 8 | 4.45 | 5.44 | 6.31 | 7.04 | 7.67 | 8.64 | 8.90 | 9.37 |
| 111042 | 8.5 | 4.73 | 5.79 | 6.74 | 7.46 | 8.21 | 9.17 | 9.46 | 9.95 |
| 111043 | 9 | 5.02 | 6.14 | 7.17 | 8.17 | 8.68 | 9.26 | 10.03 | 10.53 |
| 111044 | 10 | 5.59 | 6.85 | 8.06 | 9.04 | 9.45 | 10.31 | 11.18 | 11.69 |
| 111045 | 11 | 6.16 | 7.56 | 8.73 | 9.66 | 10.75 | 11.36 | 12.33 | 12.86 |
| 111046 | 12.5 | 7.03 | 8.63 | 9.90 | 10.84 | 12.19 | 12.95 | 14.06 | 14.60 |
| 111047 | 13 | 7.32 | 8.98 | 10.17 | 11.26 | 12.32 | 13.48 | 14.64 | 15.19 |
| 111048 | 15 | 8.23 | 10.10 | 11.72 | 13.17 | 14.31 | 15.60 | 16.47 | 17.51 |
| 111049 | 17.5 | 9.65 | 11.97 | 13.64 | 15.50 | 16.96 | 18.26 | 19.31 | 20.42 |
| 111050 | 20 | 10.99 | 13.51 | 15.78 | 17.45 | 19.18 | 20.86 | 21.97 | 23.33 |
Also available in sizes 8.5-20.0, click here for info.
