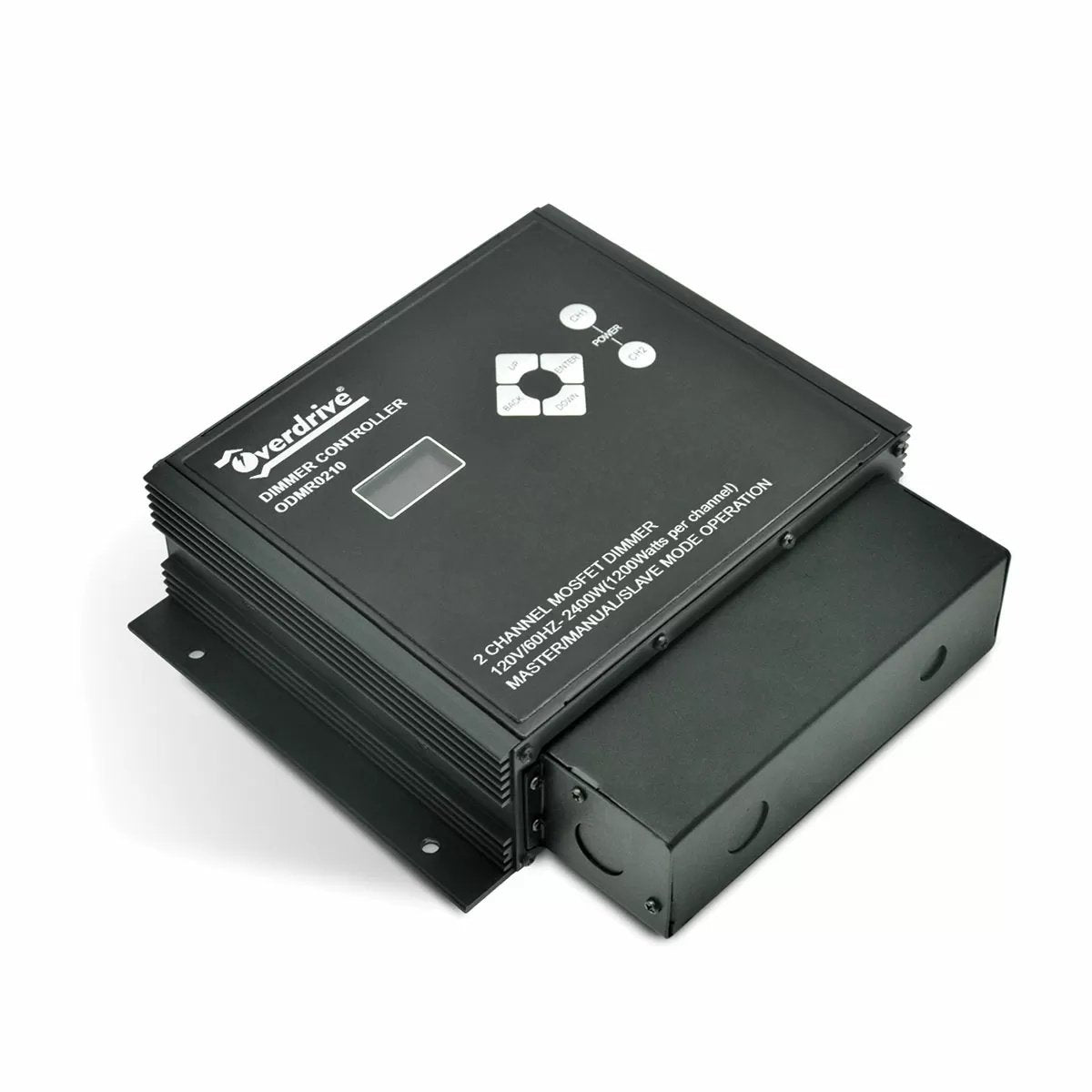

With a maximum load of 10 amps for each channel, the Overdrive ORMR0210 Dimmer Controller with MOSFET control provides dimming for low light levels and strong lamp re-ignition. Dual output channels can run independent lighting schedules, which can illuminate or dim two lighting zones simultaneously. It is both a dimmer and a controller. For optimum performance and long life, use this dimmer controller with Overdrive dimmable bulbs.

Features

• Dual output zones can run independent lighting schedules; maximum load for each channel is 1,200 watts (at 120V)/10 amps
• 3 programs - Master, Manual, & Slave mode for easy and quick programming
• Master Mode with programmable auto lighting control
• Manual Mode with keypad control
• Slave Mode with 0 to 10V DC analog voltage control
• Supports memory function
• Supports ISP function and complies with EU-BUS protocol
• Integrated 1.3" OLED display
• Fully integrated digital control system for precise and consistent dimming
• 4kV surge protection, over voltage protection & short circuit protection
• Replaceable output fuses
• MOSFET Control reduces dimmer power loss and runs cooler

Maximum Overdrive Dimmable A19 LED Lamp on Dimmer

Please Note: Do not mix multiple wattage LED light bulbs on the same controller.
