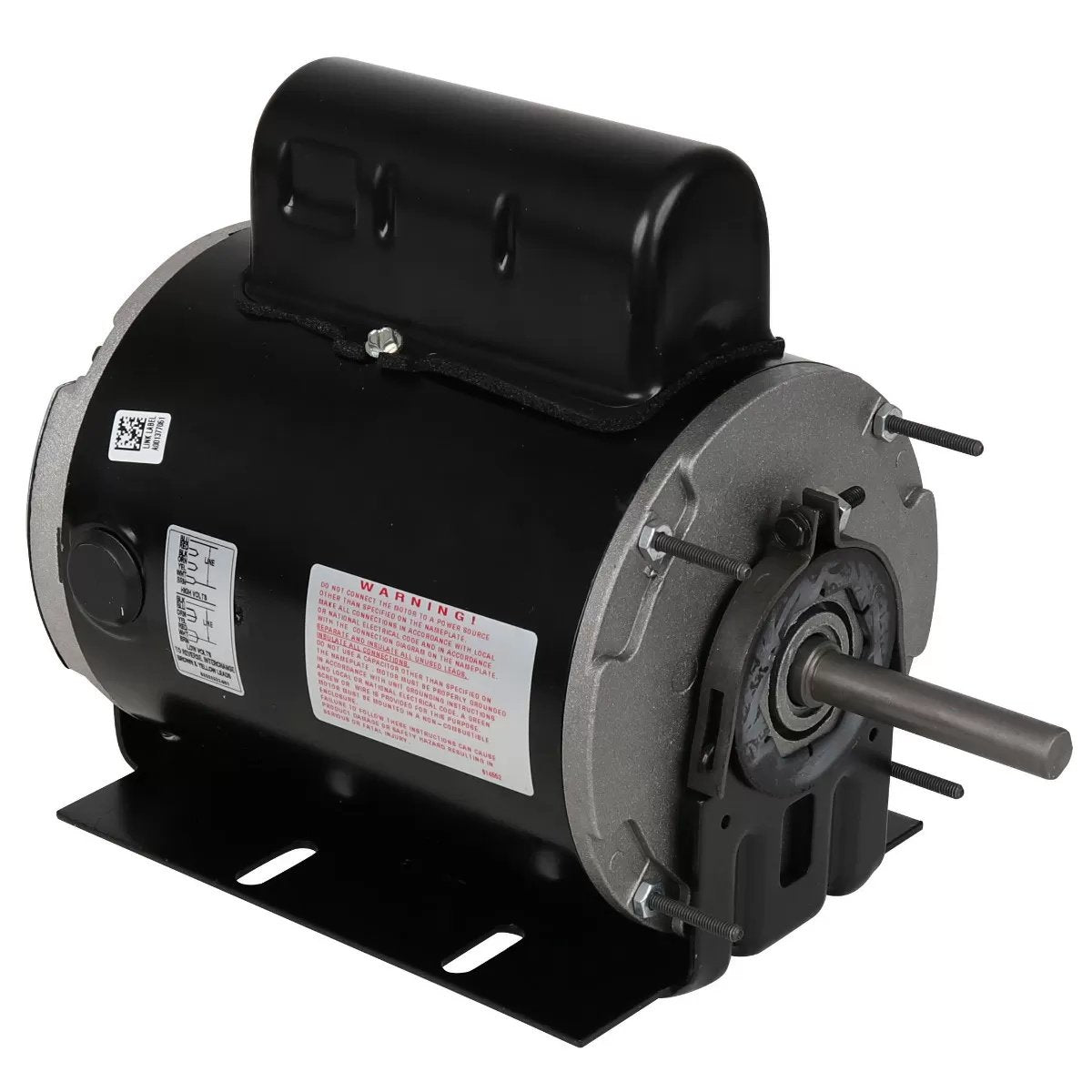

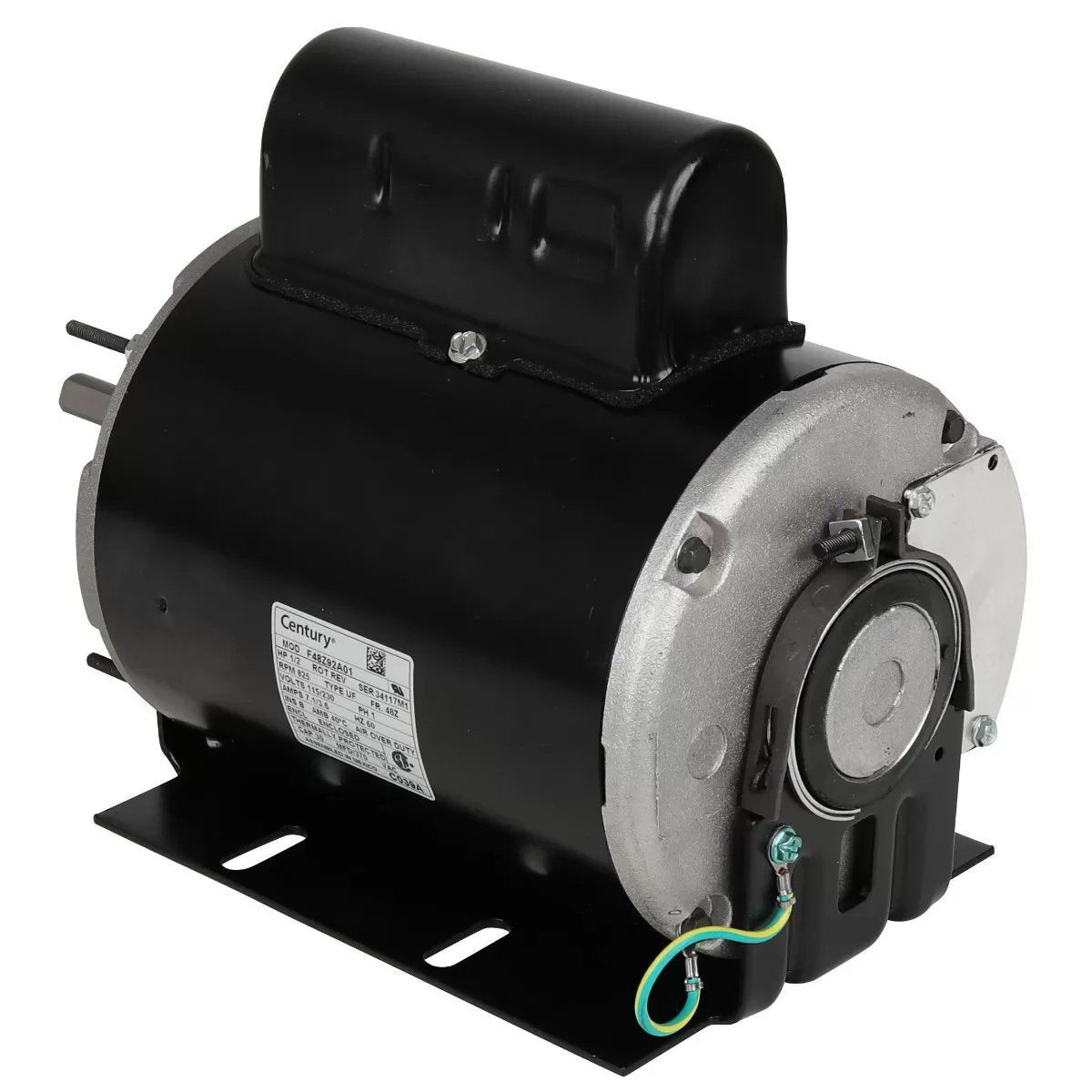

Century® CO39A Single Speed Fan Motor - 1/2 HP
SKU:
QC Part #190016 | MFR # C039A
Regular price
$347
99
Sale price
$347
99
Regular price
Unit price
per
Currently available on backorder
This item is temporarily out of stock, but you can still order it. We’ll ship your item as soon as it’s restocked. Contact us for estimated delivery timing.
This item is temporarily out of stock, but you can still order it. We’ll ship your item as soon as it’s restocked. Contact us for estimated delivery timing.
Description
Reviews
Q&A
Documents
More about Century® CO39A Single Speed Fan Motor - 1/2 HP
Extend the life of your fan with this Single Speed Fan Motor from Century. This motor has a totally enclosed air over and auto overload with direct drive. Includes double-sealed ball bearings. 1/2 HP; 900 RPM; 48Z frame.
- 1/2 HP
- 900 RPM
- Permanent split capacitor

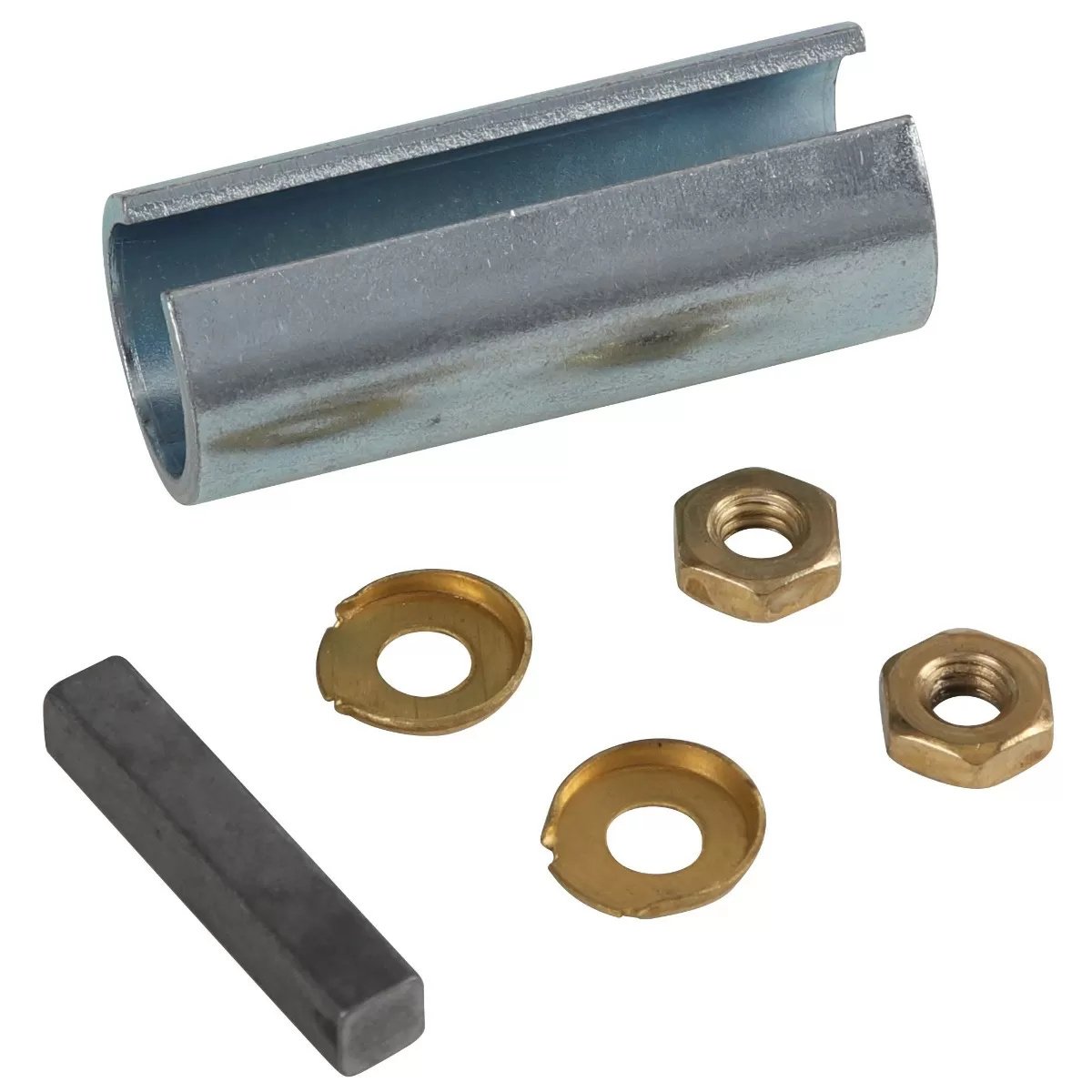

- Shaft sleeve and key supplied for 5/8" diameter
- Shaft N-W = 2.5" with 2 flats 0.04 deep, 2.16" long, 90° apart
- Auto protector
- Double sealed ball bearings
- Extended 10-32 thru-bolts 3/4" past nut
- Fully gasketed
- Reversible
- Service Factor 1.0
- 60 Hz
- Totally enclosed, air over
| QC Part # | Model # | HP | RPM | Shaft | Volts | Frame | Amps | Approx. Wgt. |
|---|---|---|---|---|---|---|---|---|
| 190000 | CO45A | 1/4 | 1,100 | 1/2" or 5/8" x 3 1/4" | 115/230 | 48Z | 4.0/2.0 | 16 |
| 190001 | CO42A | 1/4 | 1,700 | 1/2" or 5/8" x 3 1/8" | 115/230 | 48Z | 3.4/1.7 | 19 |
| 190017 | CO42A | 1/4 | 1,700 | 1/2" or 5/8" x 3 1/8" | 115/230 | 56Z | 3.4/1.7 | 19 |
| 190002 | CO46A | 1/3 | 1,100 | 1/2" or 5/8" x 3 1/4" | 115/230 | 48Z | 4.2/2.3 | 18 |
| 190003 | CO43A | 1/3 | 1,725 | 1/2" or 5/8" x 3 1/8" | 115/230 | 48Z | 3.6/1.8 | 20 |
| 190004 | CO43A | 1/3 | 1,725 | 1/2" or 5/8" x 3 1/8" | 115/230 | 56Z | 3.6/1.8 | 20 |
| 190005 | CO47A | 1/2 | 1,100 | 1/2" or 5/8" x 3 1/8" | 115/230 | 48Z | 6.5/3.25 | 23 |
| 190006 | CO44A | 1/2 | 1,700 | 1/2" or 5/8" x 3" | 115/230 | 48Z | 5.5/2.8 | 24 |
| 190007 | FM66 | 1/2 | 1,700 | 1/2" or 5/8" x 3" | 115/230 | 56Z | 5.5/2.8 | 24 |
| 190008 | CO48 | 1/2 | 900* | 5/8" x 2 1/2" | 115/230 | 56Z | 6.6/3.3 | 33 |
| 190016 | CO39A | 1/2 | 900* | 1/2" x 2 1/2" | 115/230 | 48Z | 7.1/3.6 | 21 |
| 260030 | Power Supply Cords | |||||||
| *Single speed only. | ||||||||
