More about Chemilizer™ HN55 Fixed Ratio Injectors

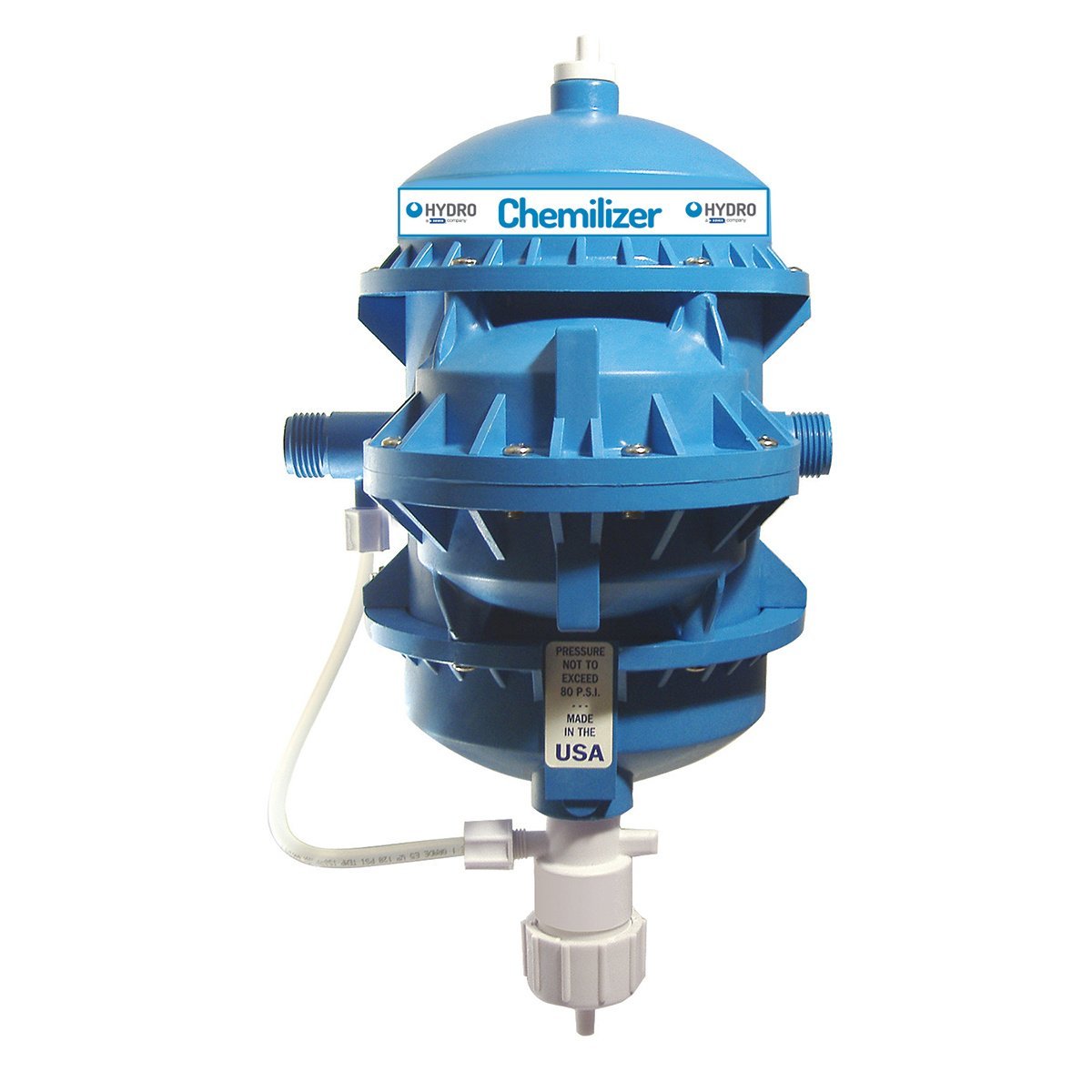

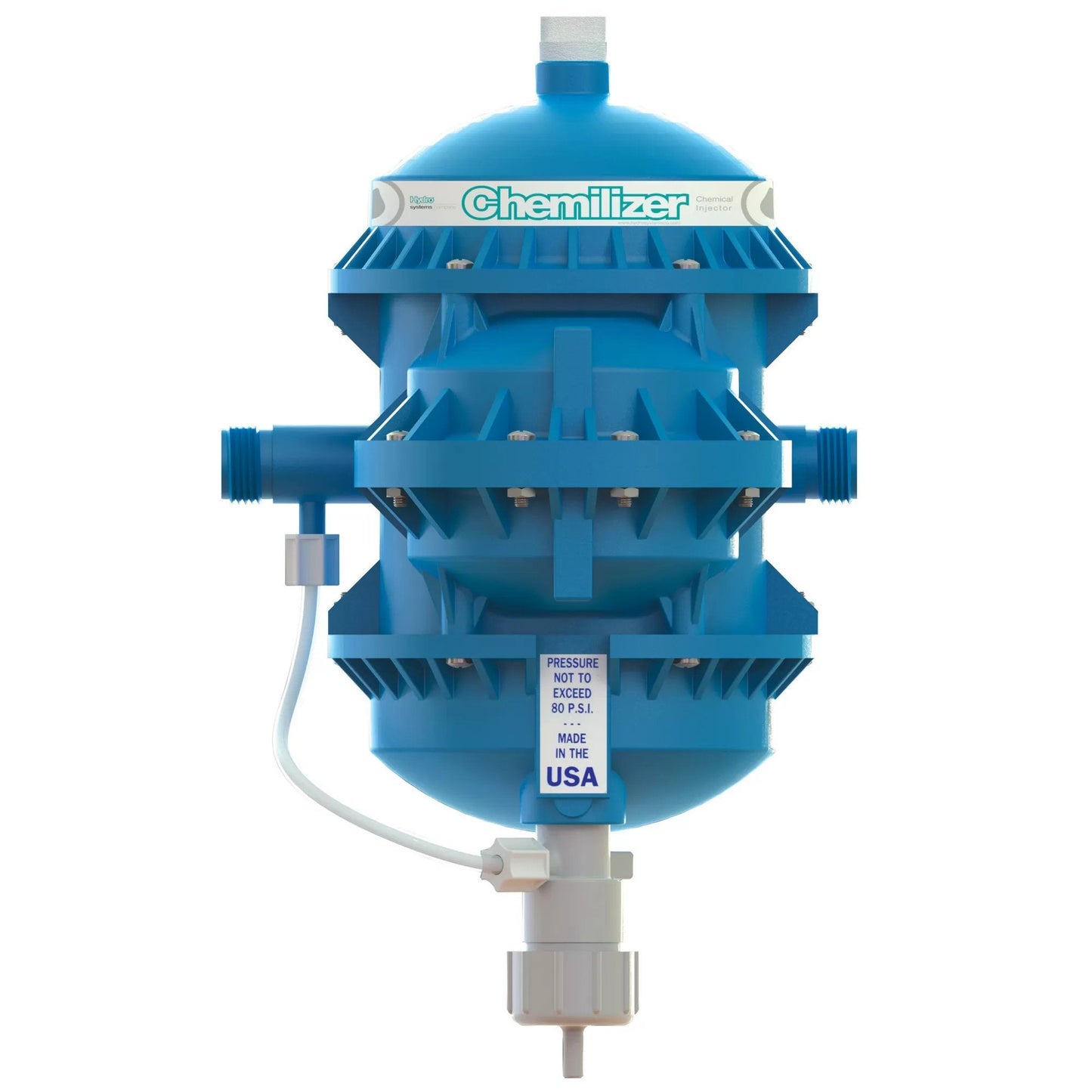

The ChemilizerѢ HN55 Fixed Ratio Injector is an industry-leading injector utilizing years of proven diaphragm technology. Powered by the existing water supply, the internal motor drives the chemical pump, injecting very precise amounts of chemical. The speed of the water motor and pump are proportional to the water flow, ensuring the ChemilizerѢ will inject consistent amounts of chemical regardless of fluctuation in water pressure and flow.
This injector runs off of water flow and works with system flows as low as 1 gallon per hour up to 780 gallons per hour (13 gallons per minute). The HN55 will work with gravity via a water drop of as little as 5 feet (1.5 meters).
Applications:Disinfectants, sanitizers, fertilizers, micronutrients, biologicals, fungicides, algaecides, animal health supplements and medications, soaps, surfactants, and many other chemicals and solutions.
Selection is typically determined by the chemicals to be injected. ChemilizerѢ HN55 Injectors with adjustable pump are also available. For help choosing the right injector to meet your needs, give one of our experts a call today 1-888-433-5275.
Features/Specifications
- No water filtration needed
- Unique bypass chemical injection design
- Excellent low flow capabilities
- Flow Rate: 0.02-11 GPM
- Pressure Rating: 3-85 PSI
- Weight: 6.75 lbs
- Size: 11" H x 8.5" W x 10" D
QC Part # | Model | Injection Ratio | System Water Flow | Operating Pressure | Inlet / Outlet | Weight |
---|---|---|---|---|---|---|
120177 | HN55 | 1:128 | 1 GPH - 780 GPH | 3-85 PSI | 3/4" MGHT | 6.75 lbs. |
120193 w/Ceramic Sleeve | HN55 | 1:128 | 1 GPH - 780 GPH | 3-85 PSI | 3/4" MGHT | 6.75 lbs. |
120177-1:100 | HN55 | 1:100 | 1 GPH - 780 GPH | 3-85 PSI | 3/4" MGHT | 6.75 lbs. |
