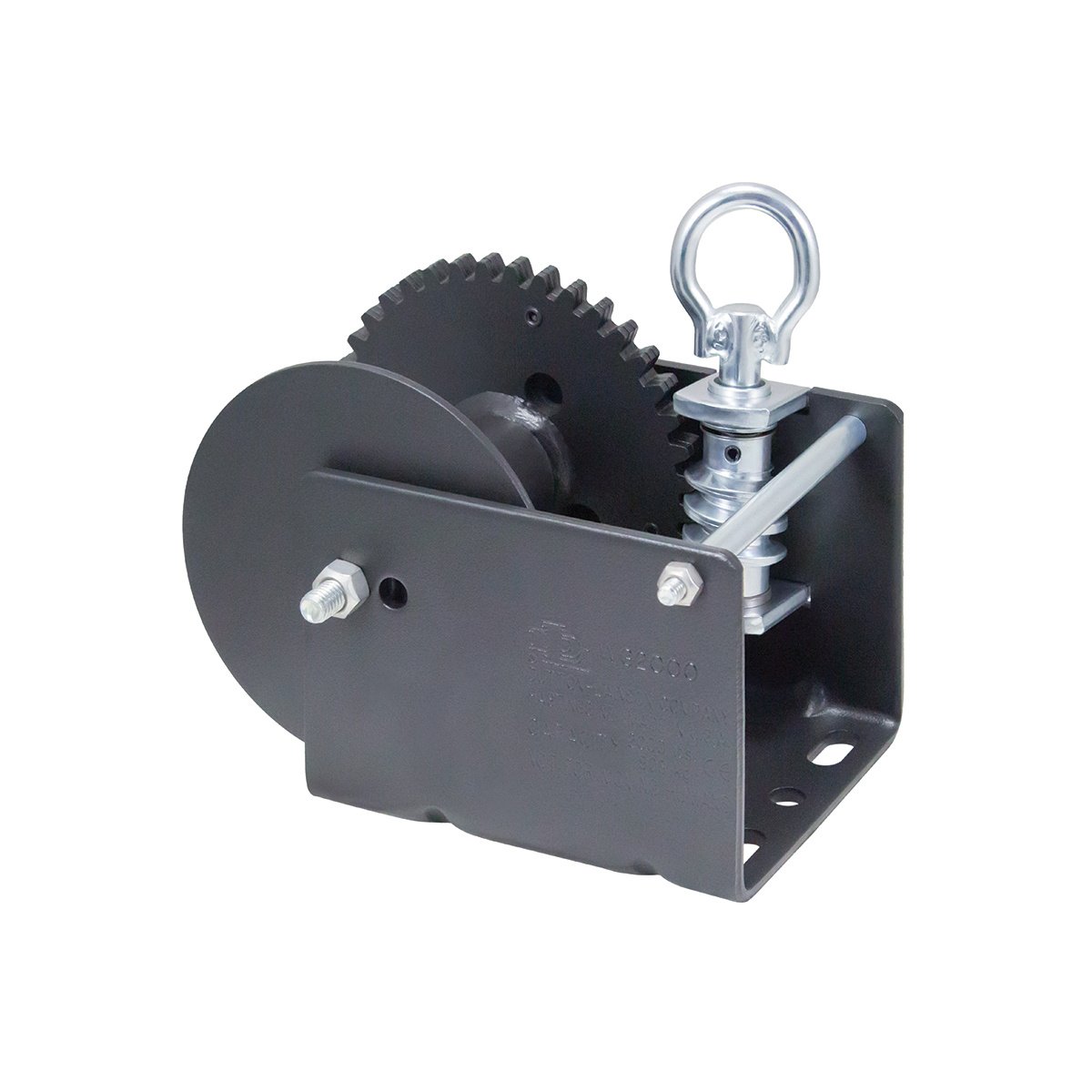

More about Dutton-Lainson® Loop Drive Worm Gear Winch - Reg. Drum 2,000 lb. Load Capacity
This Dutton-Lainson worm gear winch is designed for horizontal pulling and vertical lifting. It has a 2,000 lb. capacity and a loop drive that allows the winch to be mounted out of reach and operated with a long shepherd's hook and, if desired, with a variable-speed electric drill. The standard reel automatically stops turning whenever cranking is stopped, locking the load in place. This winch features a powder-coated finish, zinc plated TUFFPLATE® finish on hardware. It will hold up to 82' of 7/32" cable, up to 59' of 1/4" cable, or up to 49' of 9/32" cable (cable sizes smaller or larger than these are not recommended). Color may vary. Made in the U.S.A.
- Permanently lubricated bearings
- Designed for horizontal pulling and vertical lifting applications
- 2,000 lb. capacity
- The loop drive allows winch to be mounted out of reach and operated with a long shepherds hook
- Standard reel automatically stops turning whenever cranking is stopped, locking load in place
- Powder coated finish, zinc plated TUFFPLATE finish on hardware
- Will hold up to 81' of 3/16" cable, up to 61' of 7/32" cable, or up to 43' of 1/4" cable
- Color may vary
- Made in the U.S.A
