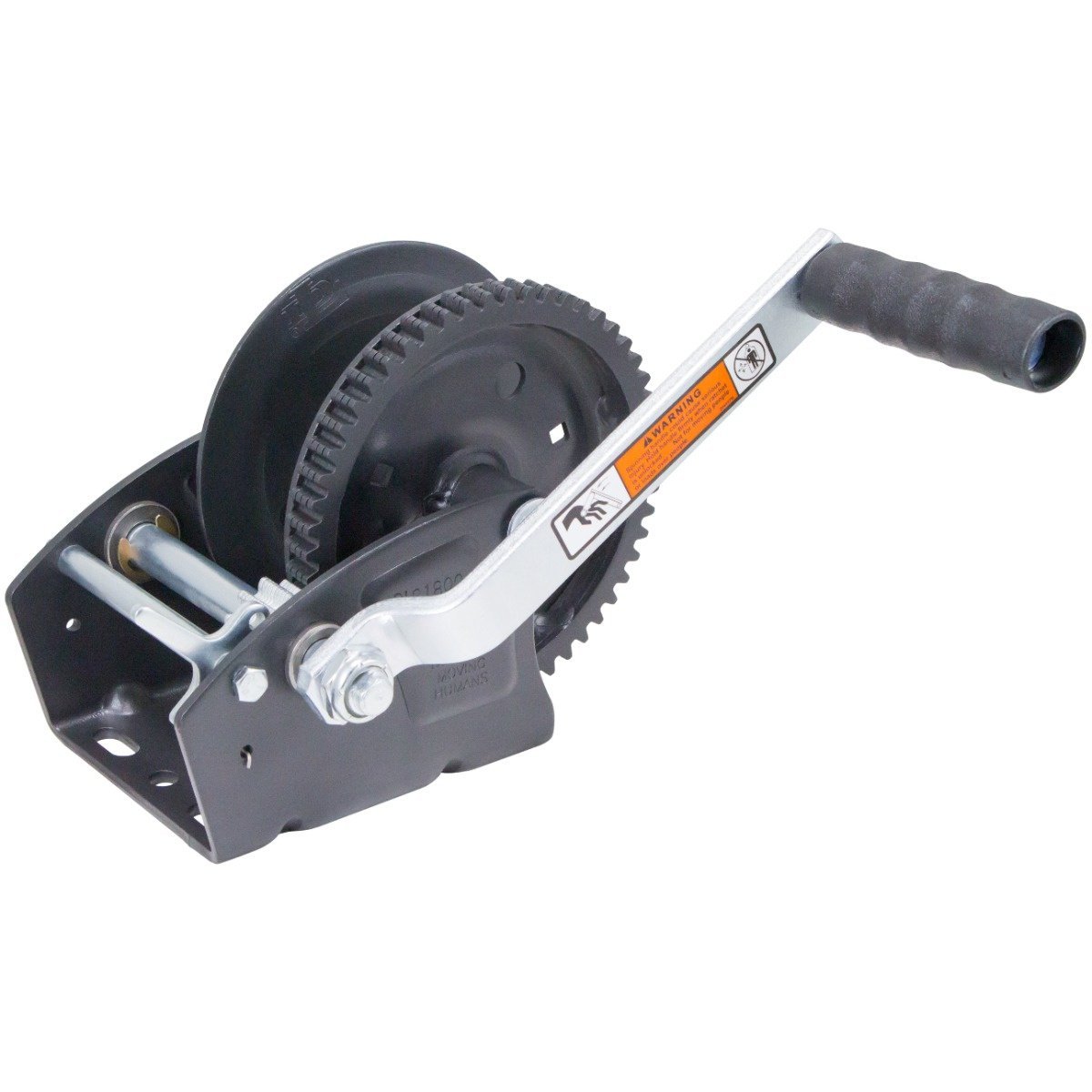

More about Dutton Lainson® Standard Winch - 1,800 lb. Load Capacity
Equipped to pull heavy loads, this ratchet-type Dutton Lainson Standard Winch has a 1,800 lb. Load Capacity. This winch comes in handy for hauling and pulling waterers, heat lamps, livestock curtains, loading chutes and doors up to 1,800 lbs. Its rigid, welded reel construction allows you to handle loads with minimal effort. Features arc-welded gears and copper brazed drive gears for durability.
Features/Benefits:
- Ideal for many commercial and agricultural applications
- Arc-welded gears and copper brazed drive gears for durability
- Rigid, welded reel construction for added strength
- Load matched gear ratios for easier cranking
- All drive shafts have permanently lubricated bearings
- Heavy-duty steel handles with molded plastic grips
- The color of what is sent may differ from the photo due to a manufacturer change. You will either receive bronze as pictured or black.
| QC Part # | Load Capacity |
Hub Diameter |
Gear Ratio |
Handle | Ratchet Type |
Reel Capacity |
|---|---|---|---|---|---|---|
| 91120 | 600 lbs. | 5/8" | 3.2:1 | 7" | One Way | 5/32" x 61' |
| 91121 | 900 lbs. | 5/8" | 3.2:1 | 7" | One Way | 3/16" x 40' |
| 91122 | 1,100 lbs. | 7/8" | 3.7:1 | 7" | One Way | 3/16" x 81' |
| 91123 | 1,300 lbs. | 7/8" | 4.4:1 | 7" | One Way | 7/32" x 57' |
| 91124 | 1,400 lbs. | 7/8" | 4.4:1 | 7 1/2" | Two Way | 1/4" x 41' |
| 91125 | 1,800 lbs. | 1 1/8" | 5.4:1 | 9 1/2" | Two Way | 9/32" x 61' |
| 91126 | 2,000 lbs. | 1 1/8" | 12.4:1/5.4:1 | 9 1/2" | Two Speed | 9/32" x 61' |
| 91127 | 2,500 lbs. | 1/o 1/8" | 17.3:1/5.4:1 | 9 1/2" | Two Speed | 5/16" x 49' |
