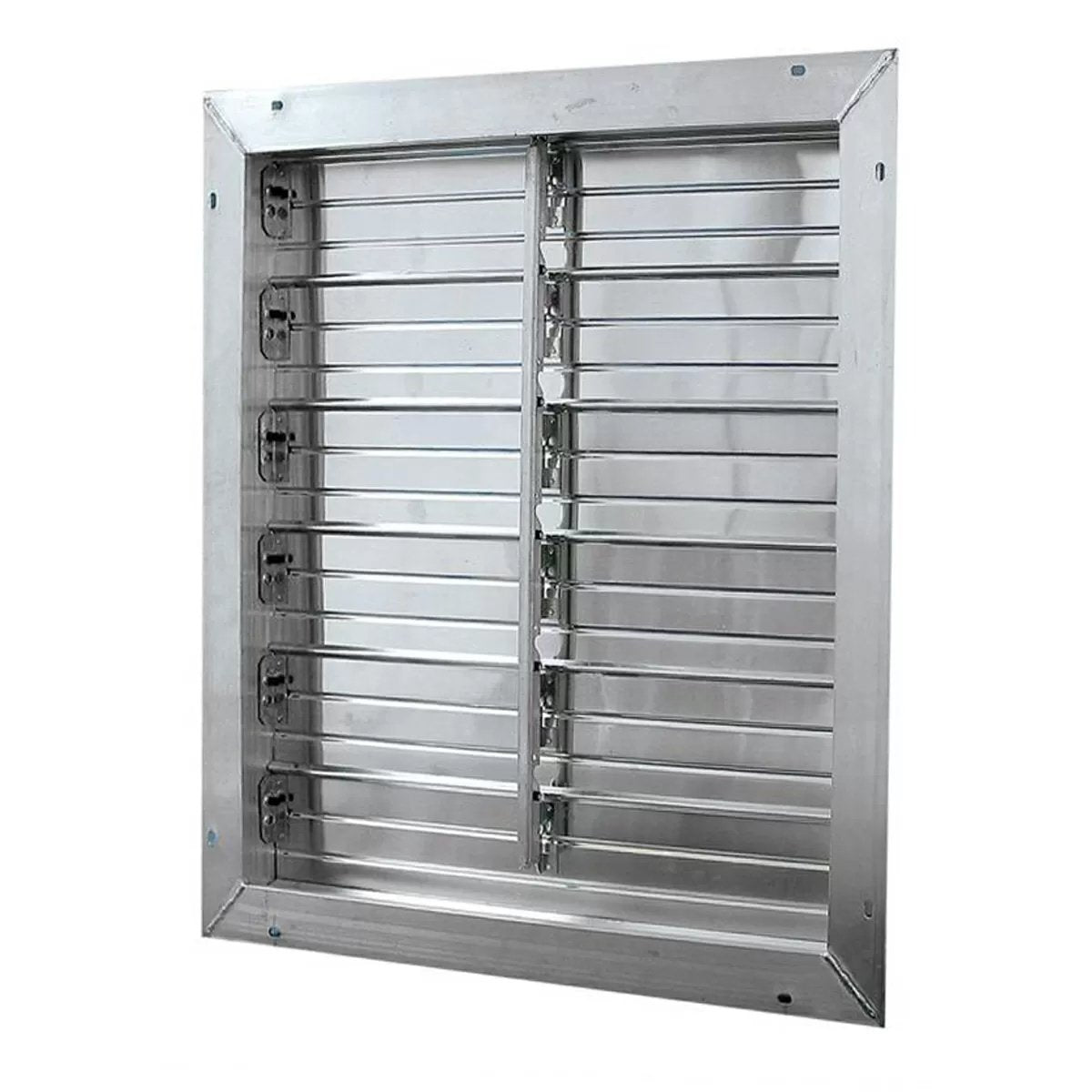

J&D Manufacturing Aluminum Intake Shutter Only Single Panel

QC Part #11127 | MFR # VRSG30A-C
$111 99
$111 99
Sale Sold out
Size
5-7 Business Days

View full details
!
NOTE:
This item can not ship via USPS.
!
NOTE:
This item has to be shipped via motor freight.
Description
Reviews
Q&A
Documents

More about J&D Manufacturing Aluminum Intake Shutter Only Single Panel

Designed to be used with a J&D Manufacturing Exhaust Fan, this Single Panel Aluminum Intake Shutter is constructed with heavy-duty aluminum and strong welded corners.

Features

  • High-efficiency shutter with tie bar to eliminate shutter flapping
  • Nylon bearings and solid shafts for smooth performance
  • Frame comes with pre-drilled mounting holes to save installation time
  • Corners are precision milled & welded for durability
  • Interlocking louvers for maximum weather seal
  • Motorized shutter kits are available to turn any aluminum shutter into a power shutter
  • To maximize efficiency in air movement, shutters should be periodically cleaned of debris
  • Some assembly is required
Size Rough Opening Item #
Shutter Only		 Item #
Shutter with Motorized Kit		 Item #
Shutter with
Motorized Kit & 10' Cord		 Ships
12" x 12" 12.5" x 12.5" 11111 11112 11113 UPS
16" x 16" 16.5" x 16.5" 11114 11115 11116 UPS
18" x 18" 18.5" x 18.5" 11117 11118 11119 UPS
20" x 20" 20.5" x 20.5" 11120 11121 11122 UPS
24" x 24" 24.5" x 24.5" 11124 11125 11126 UPS
30" x 30" 30.5" x 30.5" 11127 11128 11129 UPS
36" x 36" 36.5" x 36.5" 11130 11131 11132 Motor Freight
40" x 40" 40.5" x 40.5" 11133 11134 11135 Motor Freight
42" x 42" 42.5" x 42.5" 11136 11137 - Motor Freight
48" x 48" 48.5" x 48.5" 11139 11140 11141 Motor Freight
54" x 54" 54.5" x 54.5" 11142 11143 11144 Motor Freight
60" x 60" 60.5" x 60.5" 11145 11146 11147 Motor Freight
75" x 75" 75.5" x 75.5"   13500 13493 Motor Freight

Motor Freight Shipments: We will contact you with charges for approval before shipping.
Filter by rating

Customer Reviews

Based on 10 reviews
40%
(4)
30%
(3)
30%
(3)
0%
(0)
0%
(0)
T
Tomcat
Worked really well for me

I have now installed 3 of these vents in my metal shop building to increase air flow. They were shipped in good time, arrived in good shape and installed easily. I would definitely recommend them.

S
Shawn
Works Great

I purchased this product to ventilate my generator shed while charging batteries. It was easy to install and is working like I expected it to.

B
Bruce
Does the Job

Install these shutters in the doors of equipment enclosure buildings to allow air to enter when the HVAC system is circulating outside air into the building. Simple operation with no need for power supply to open the louvers.

S
Scooter
Light weight, poor sealing

I would be willing to pay more if they were built a little heavier & sealed better.

R
Royal Releaf
Works just fine

I grabbed two 16" shutters to work with a single 24" shutter fan. These will not open very far from suction alone but enough to let some air in. I am getting the motor kits to work in conjunction with the fan (Fan on / Shutters open) To get these to open 100%. Other than that, the quality of these shutters is easily worth the 30 bucks I paid.

12

Customer Reviews

Based on 10 reviews
40%
(4)
30%
(3)
30%
(3)
0%
(0)
0%
(0)
T
Tomcat
Worked really well for me

I have now installed 3 of these vents in my metal shop building to increase air flow. They were shipped in good time, arrived in good shape and installed easily. I would definitely recommend them.

S
Shawn
Works Great

I purchased this product to ventilate my generator shed while charging batteries. It was easy to install and is working like I expected it to.

B
Bruce
Does the Job

Install these shutters in the doors of equipment enclosure buildings to allow air to enter when the HVAC system is circulating outside air into the building. Simple operation with no need for power supply to open the louvers.

S
Scooter
Light weight, poor sealing

I would be willing to pay more if they were built a little heavier & sealed better.

R
Royal Releaf
Works just fine

I grabbed two 16" shutters to work with a single 24" shutter fan. These will not open very far from suction alone but enough to let some air in. I am getting the motor kits to work in conjunction with the fan (Fan on / Shutters open) To get these to open 100%. Other than that, the quality of these shutters is easily worth the 30 bucks I paid.

12
There are no file attachments for this product.
