More about LB ® I-17 Infraconic® Radiant Heater - Pilot Light Ignition - Zone Controlled (NG)

To honor LB White's No Advertised Price Policy we are not able to show pricing on L.B. White heaters or genuine LB White replacement parts. QC Supply is more committed than ever to help support the LB White product line. Please call 1-800-433-6340 or contact a local store for expert advice and access to the largest stocking parts inventory in the industry.

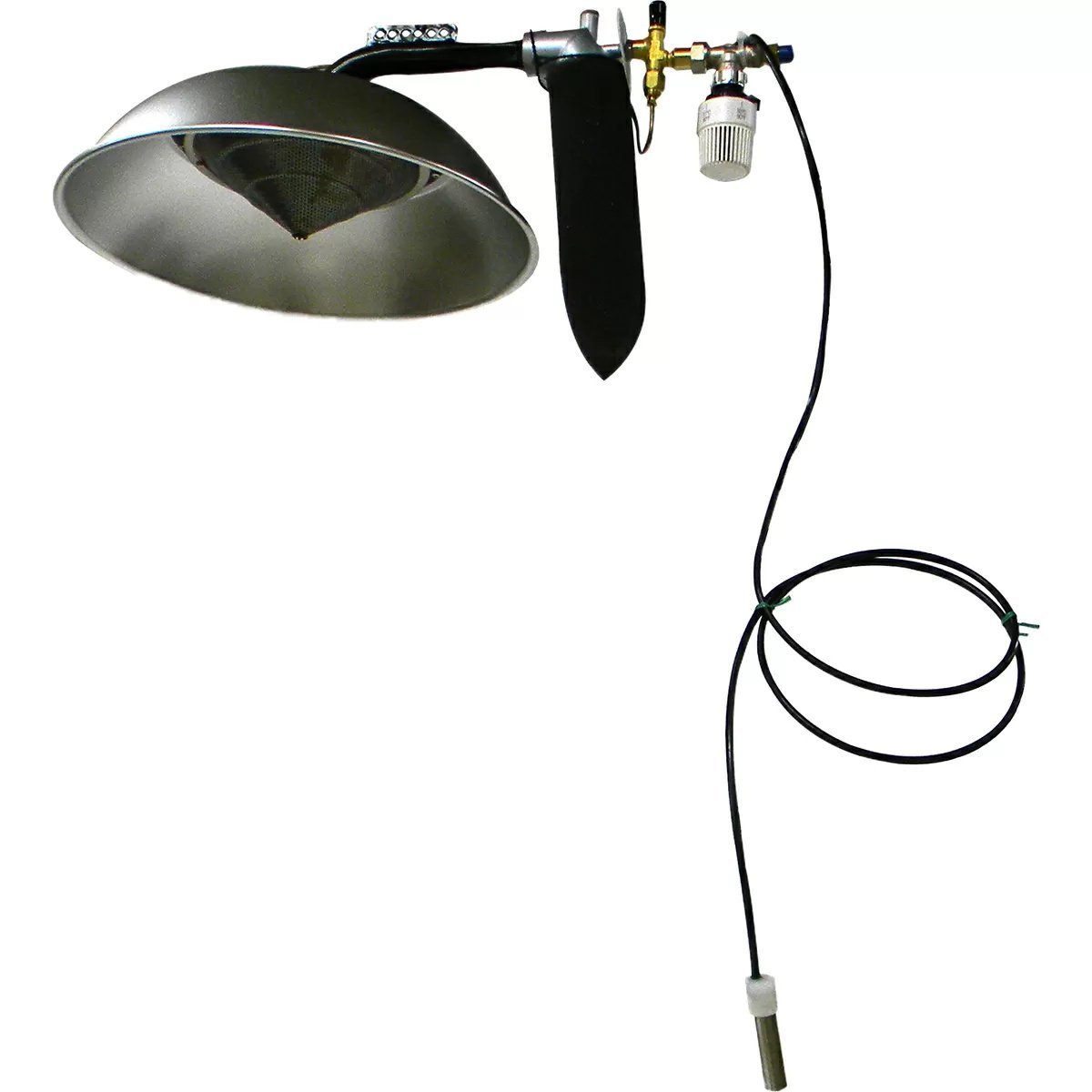

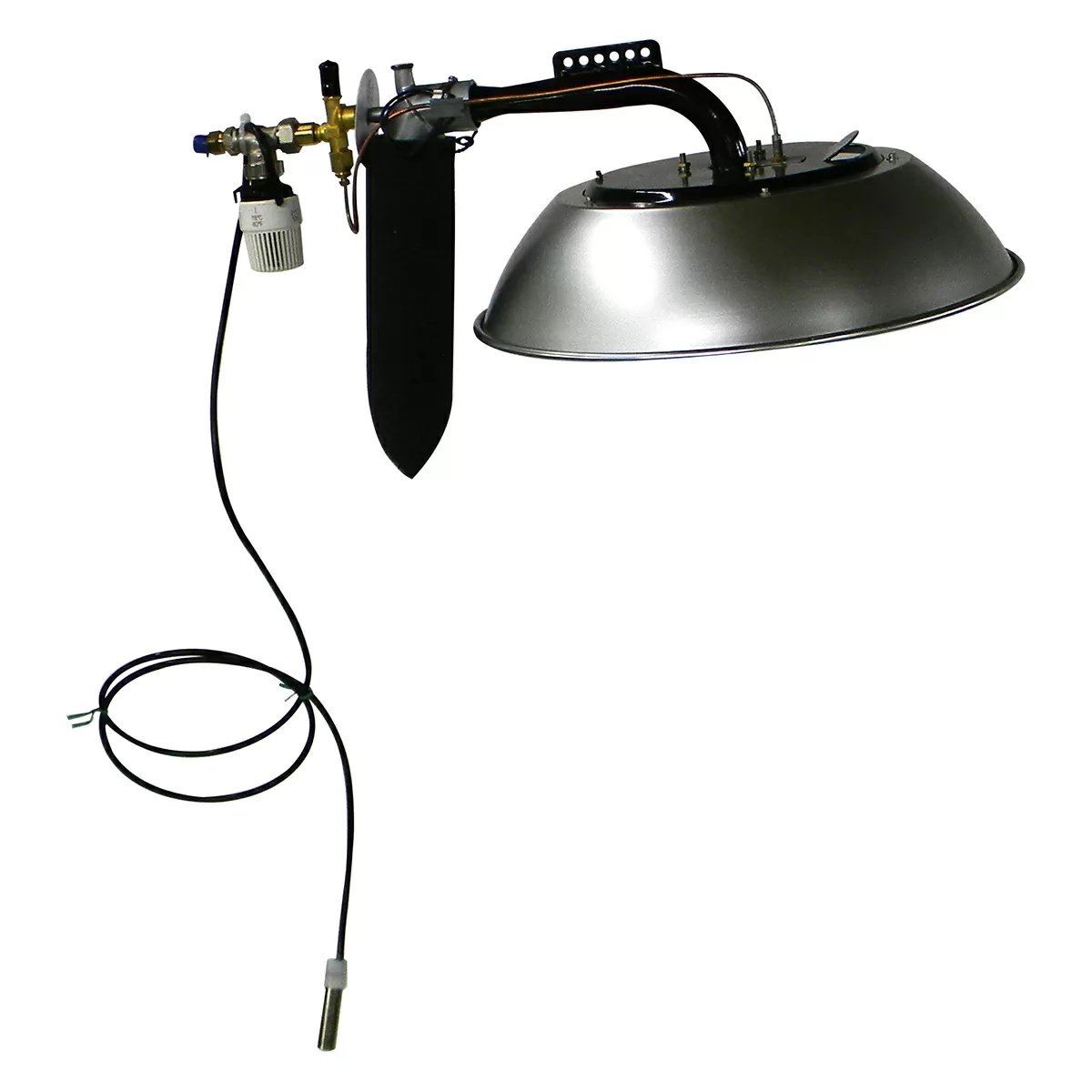

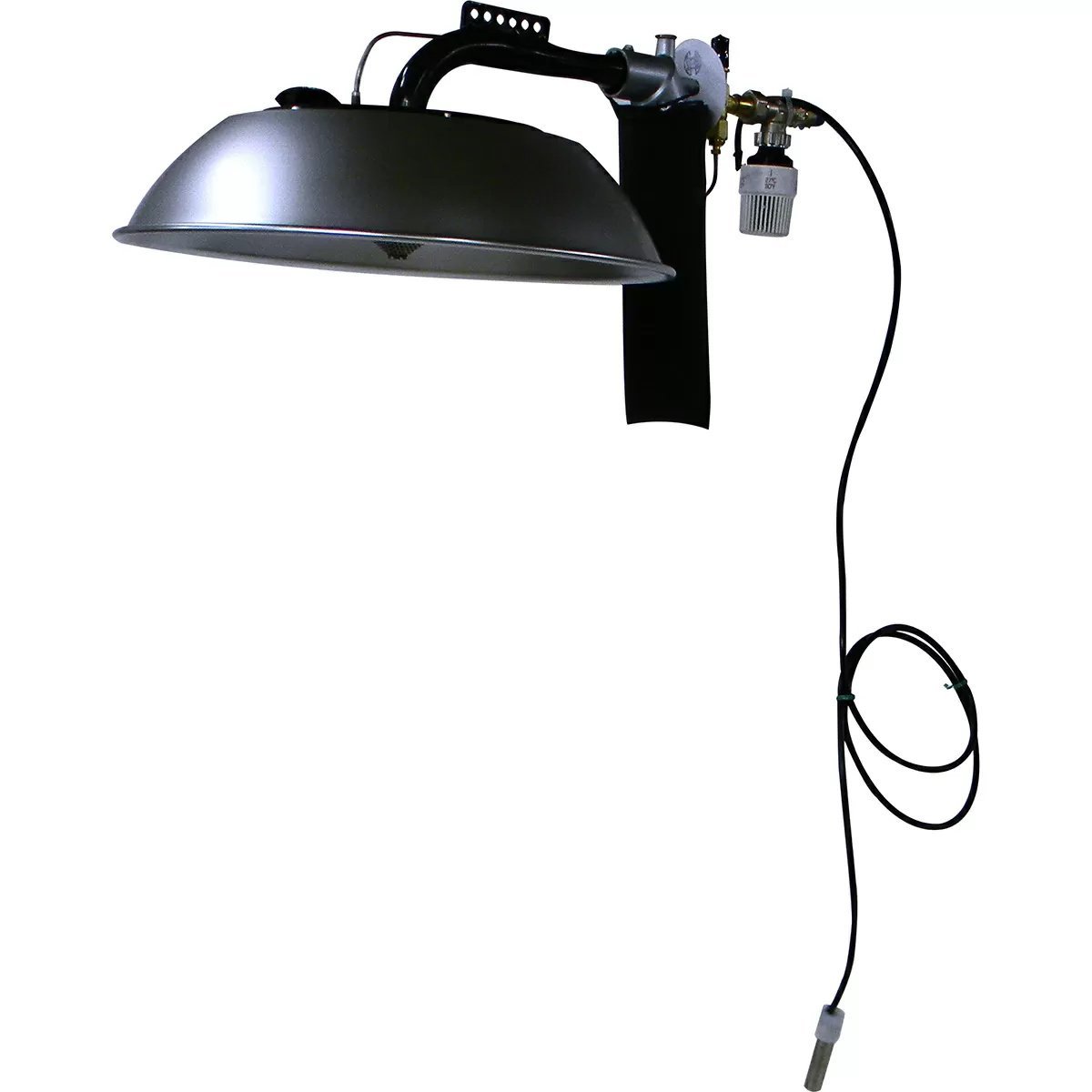

The LB White I-17 Zone-Controlled Infraconic Natural Gas Pilot Light Zone Controlled Heater delivers a larger, more consistent comfort zone with lower fuel costs.

The LB White Infraconic Radiant Heater delivers a broader, more consistent heat pattern with less fuel. Pigs stay warm, which makes them eat more and grow faster. Based on independent testing, the 17,100 BTU provided coverage for 170 weaner pigs within a typical 90° to 92° comfort zone. In a direct test of two wean-to-finish operations, one customer saved more than 20% on his fuel bill over a 15 month period using the Infraconic Radiant Heater.

QC #20175-NG is for the Heater Only. To Make the Heater Complete, Order

  • QC Part #20236: 6' Gas Hose Kit (LBW #21334); and
  • QC Part #20201: Filter Kit (includes Filter and Sleeve) (LBW #20427)
  • QC Part #20374: 10' Gas Hose Kit also available (sold separately)
  • 8' (LBW #22829) and 15' (LBW #21347) Gas Hose Kits are also available by special order

Features/Advantages

  • Pilot Light Ignition
  • Larger Consistent Comfort Zone
  • Lower Fuel Costs
  • Healthier Laying Patterns that Minimize Piling
  • Better Rates of Gain

Swine Specifications

  • BTU/Rating: 17,100 BTU
  • # of Nursery/Wean Finish: 170 Piglets
  • Spark Ignition: Optional
  • Modulating: Yes
  • Individual Thermostat: Modulating Only
  • Zone Controllable: Yes
  • Spark Ignition-Power: 115 VAC / 60 HZ
  • Modulating-Power: None

Poultry Specifications

  • BTU/Rating: 17,100 BTU
  • # of Broilers: 1,500
  • # of Turkeys: 500
  • Spark Ignition (Option 1): Optional
  • Pilot Ignition (Option 2): Optional
  • Modulating: Optional
  • Individual Thermostat: Modulating Only
  • Zone Controllable: Yes
  • Pilot Ignition: 115 VAC / 6 HG
  • Spark Ignition: 115 VAC / 60 HZ

Additional Details

  • Installation Height: 5'
  • Maximum Fuel Consumption: 0.80 lbs. per hour
  • CFM: 200
  • Dimensions: 16.9" W x 8.8" H
  • Net Weight: 5.6 lbs.

Minimum Clearance to Combustibles

  • Top: 3'
  • Side: 3'
  • Bottom: 3.5'

LB White® Infraconic® Radiant Heat Brooders Integrate with Environment Control Systems, Including

  • AP Systems (Automated Production Systems)®
  • Big Dutchman - Viper®
  • Rotem®
  • Val-Co®
  • Dicam®
  • Fancom®
  • Hotraco®
  • Maximus
