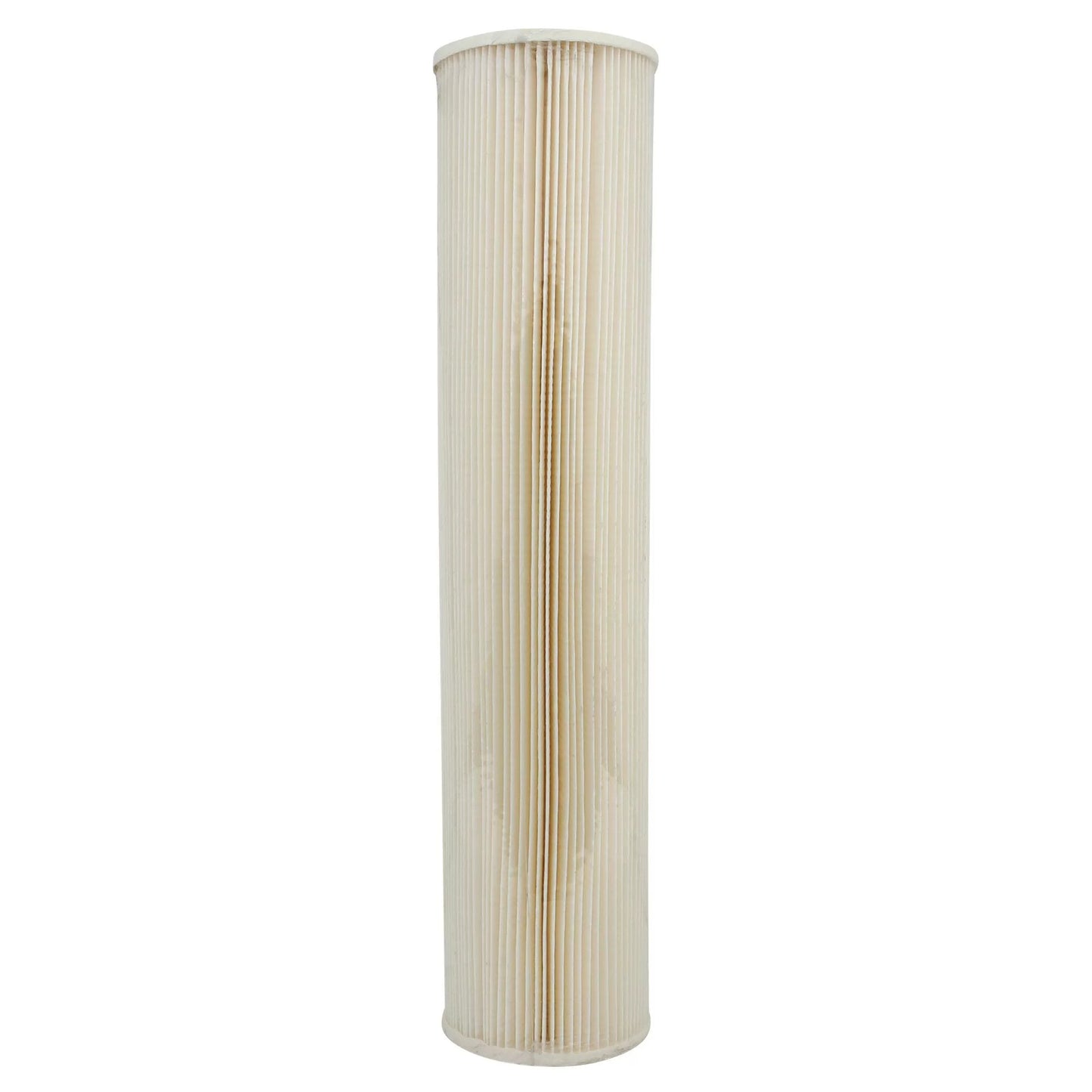

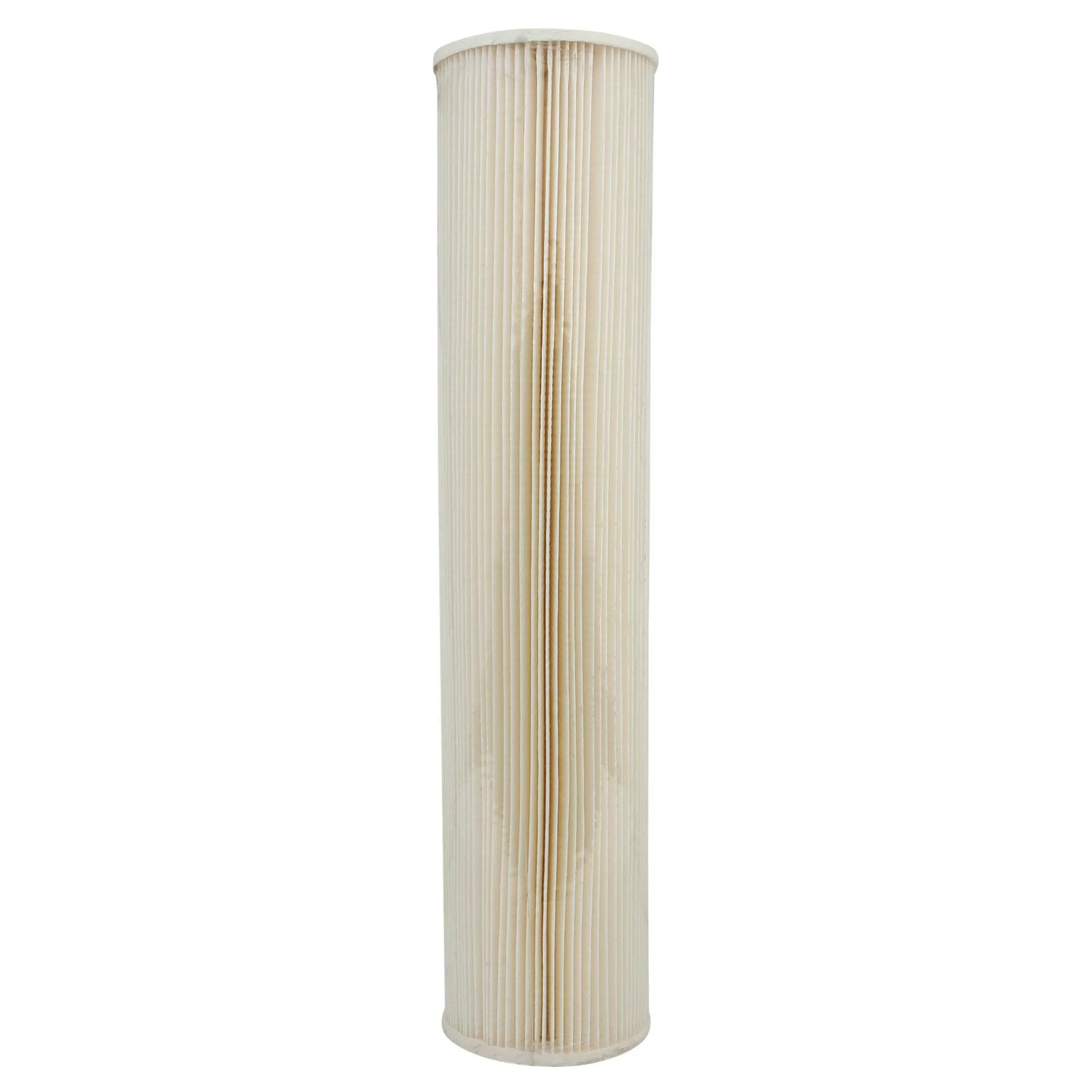

This 5 micron Pentair® filter cartridge is made from a special formulation of resin-impregnated cellulose and polyester fibers. This pleated cellulose polyester filter fits Big Blue® Jumbo 20" Housing - QC Supply Part #121330. This unique blend of materials provides a higher wet strength than regular cellulose cartridges. It also provides high flow rates and dirt-holding capacity while maintaining extremely low pressure drop.

The media is pleated around a polypropylene core for added strength. The molded endcaps have gaskets and are color-coded for easy identification of micron ratings. Tan - 1 micron; white - 5 micron; blue - 20 micron; and yellow - 50 micron. They contain more media area than most competitive cartridges - 36 sq. ft.

Features

• Constructed from a special formulation of resin-impregnated cellulose and polyester fibers
• Provides higher wet strength than regular cellulose cartridges
• Provides high flow rates and dirt holding capacity
• Minimal unloading and media migration

Specifications

• Model #: ECP5-20BB
• Size: 4 1/2" x 20"
• 5 micron
• Initial PSI: <1 PSI @ 20 GPM
• Temperature Range: 40° F to 125° F
• Weight: 1.5 lbs.
• Endcap Color: White
• Filter Media: Cellulose polyester
• Big Blue Endcaps: Polypropylene
• Core: Polypropylene

Reduces: Sediment, recommended for chlorinated water supplies

Other Available Filters

• QC Supply Part #121333 - Pleated Poly Reusable, 30 Micron
• QC Supply Part #121336 - Carbon Activated, 5 Micron
