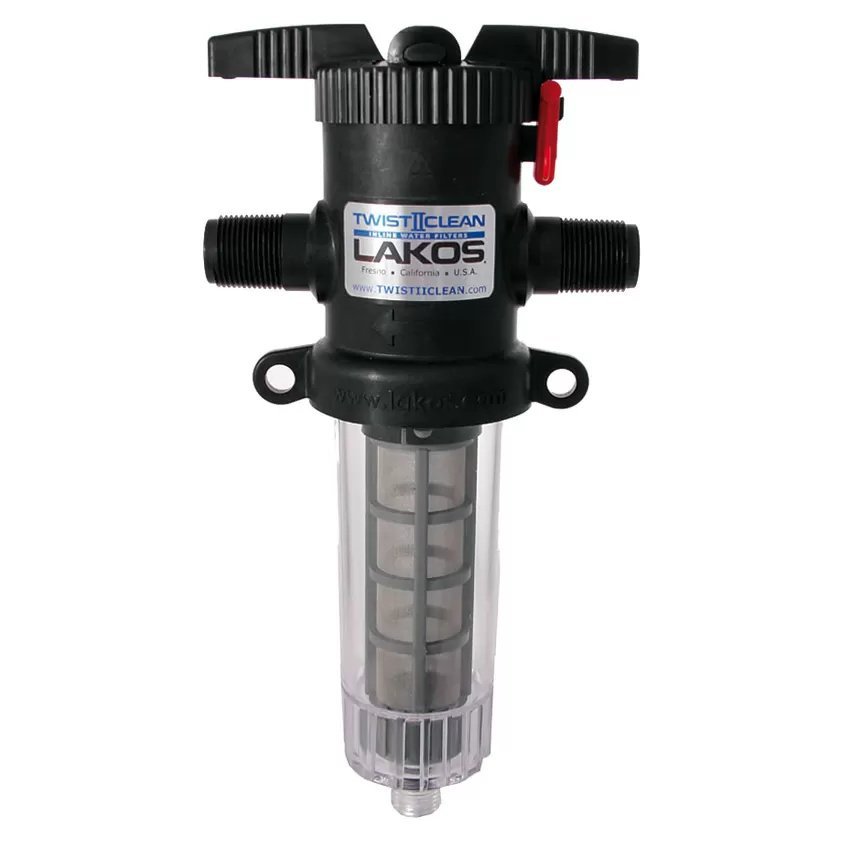

TwistIIClean™ Inline Water Filter - 1 1/2" (140 Mesh)
More about TwistIIClean™ Inline Water Filter - 1 1/2" (140 Mesh)
Just Twist II Clean™ — easy to install and easy to use inline water filter from Lakos®. TwistIIClean™ removes sand and organics as the water passes through the filter element. Periodic cleaning is necessary to optimize filter performance, reduce pressure loss and prolong product life.
When the filter element looks like it is filled with debris, it should be cleaned. Flush the filter quickly and easily with a 1/4 clockwise turn at the top handle begins the reverse flushing action. In a few seconds, all debris are backwashed off of the filter element and flushed out the bottom of the Purge Exit port.
High performance backflow spin down filter with reusable SS 140 mesh (105 micron) screen offers unique backwash cleaning action without traditional ball valve. Dual threaded inlet/outlet either NTP or BSP in 3/4", 1" or 1 1/2" sizes. High flow rate and 100 PSI pressure rating for increased operating flexibility and minimum pressure loss.
Features/Advantages:
- Easy to install and easy to use - just twist to clean it
- No leaks or watery messes made by other products
- Patented self-cleaning action
- No need to depressurize whole system to clean
- Easy to replace mesh filter cartridges available in many sizes
- Made in the USA
Specifications:
- Model #: T2C-150-140
- Connections: 1 1/2" Inlet/Outlet
- Maximum Flow Ranges: 0-78 US GPM
- Maximum Pressure: 100 PSI at 73° F
- Temperature Range: 32° F to 120° F
- Mesh Size: 140 Mesh/105 Micron Element (Black)
- Weight: 4 lbs.
TwistIIClean™ Options:
| QC Part # | Model # | Inlet/Outlet | Purge | Total Length | Length (Inlet/Outlet to Purge Port) |
Width (Inlet/Outlet) |
Mesh/Micron |
|---|---|---|---|---|---|---|---|
| 121119 | T2C-075-100 | 3/4" MPT | 1/2" MPT | 11 3/4" | 8 3/4" | 6" | 100 Mesh/150 Micron |
| 121120 | T2C-075-140 | 3/4" MPT | 1/2" MPT | 11 3/4" | 8 3/4" | 6" | 140 Mesh/105 Micron |
| 121124 | T2C-100-100 | 1" MPT | 1/2" MPT | 11 3/4" | 8 3/4" | 6" | 100 Mesh/150 Micron |
| 121122 | T2C-100-140 | 1" MPT | 1/2" MPT | 11 3/4" | 8 3/4" | 6" | 140 Mesh/105 Micron |
| 121125 | T2C-150-100 | 1 1/2" MPT | 3/4" MPT | 15 1/4" | 11 3/4" | 7 1/2" | 100 Mesh/150 Micron |
| 121126 | T2C-150-140 | 1 1/2" MPT | 3/4" MPT | 15 1/4" | 11 3/4" | 7 1/2" | 140 Mesh/105 Micron |
