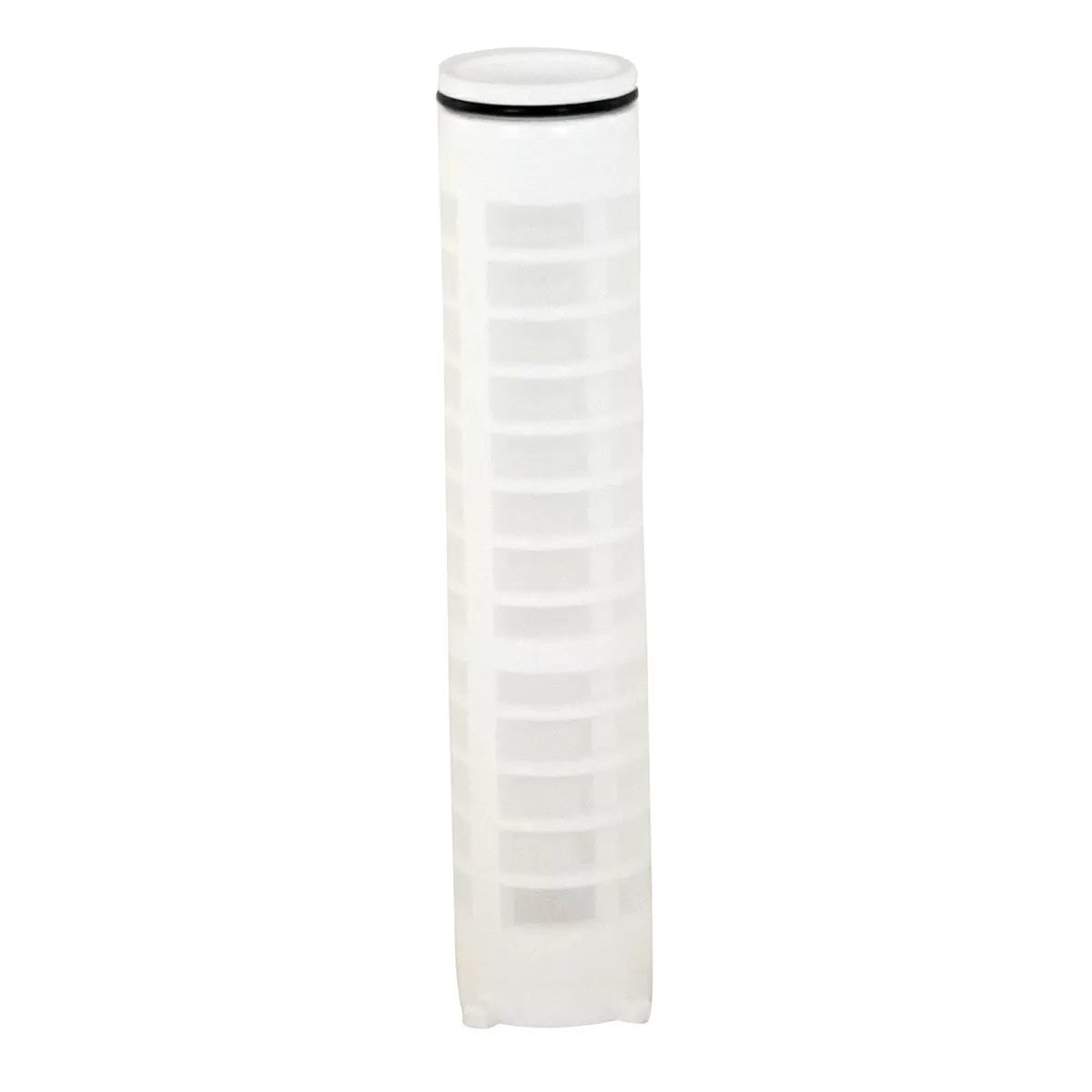

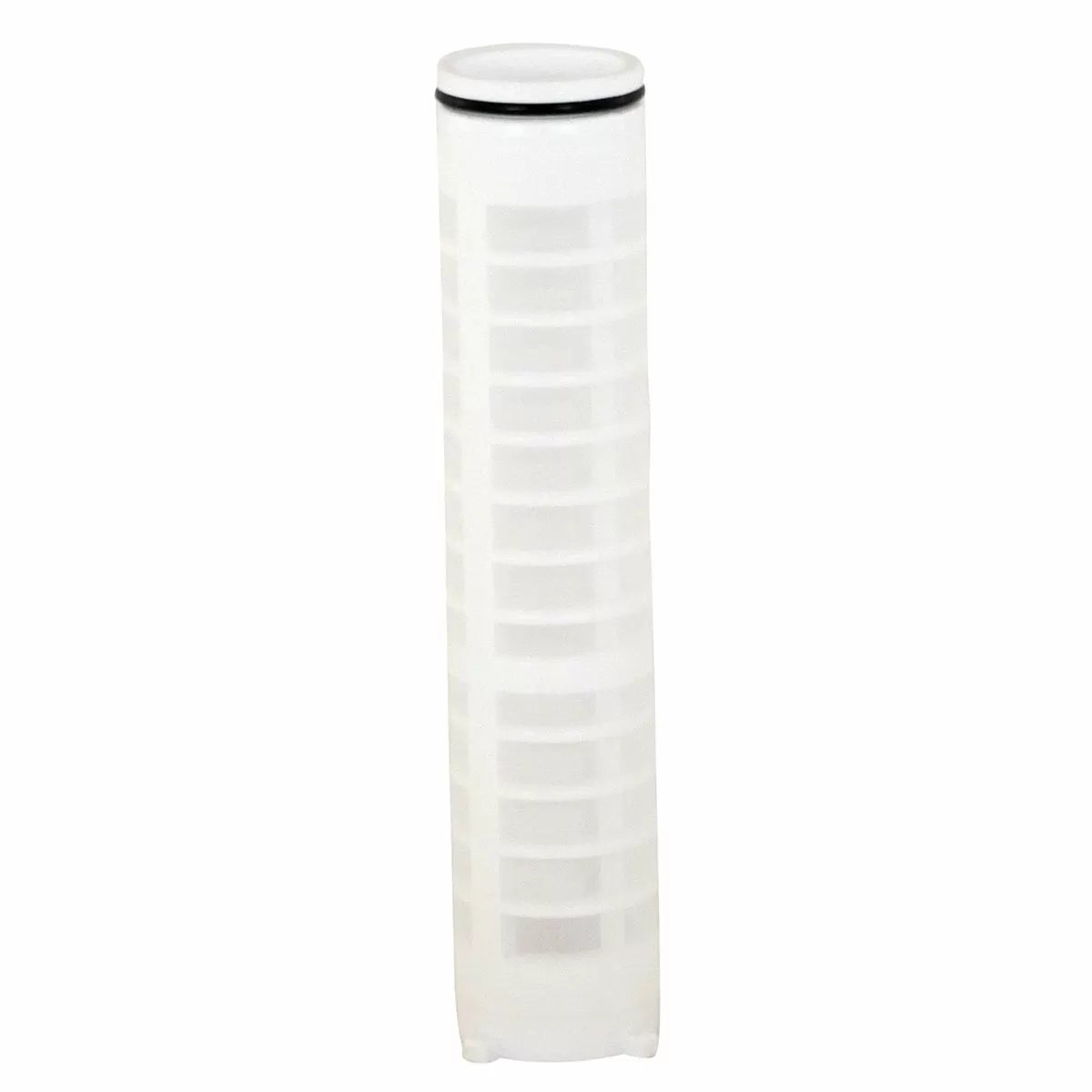

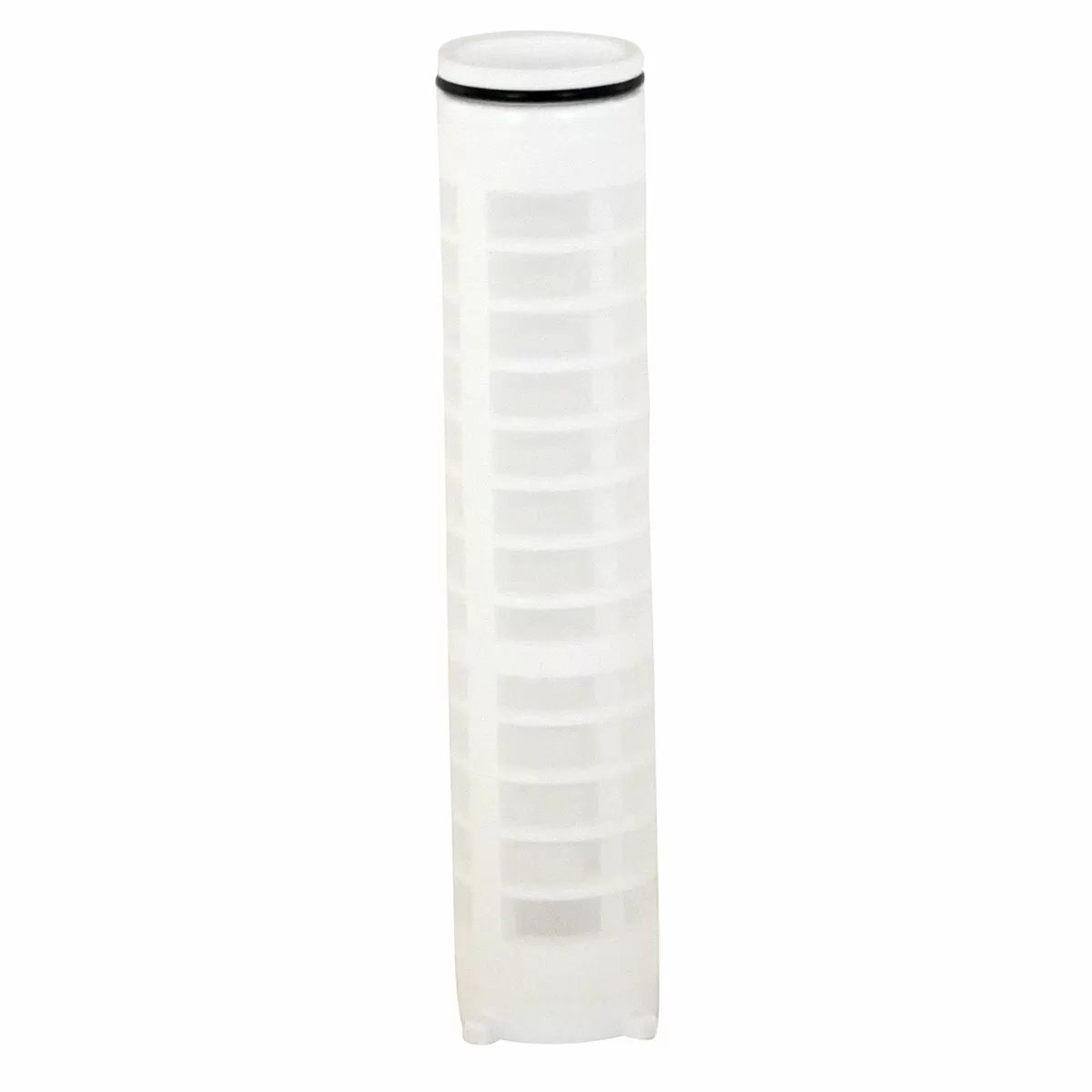

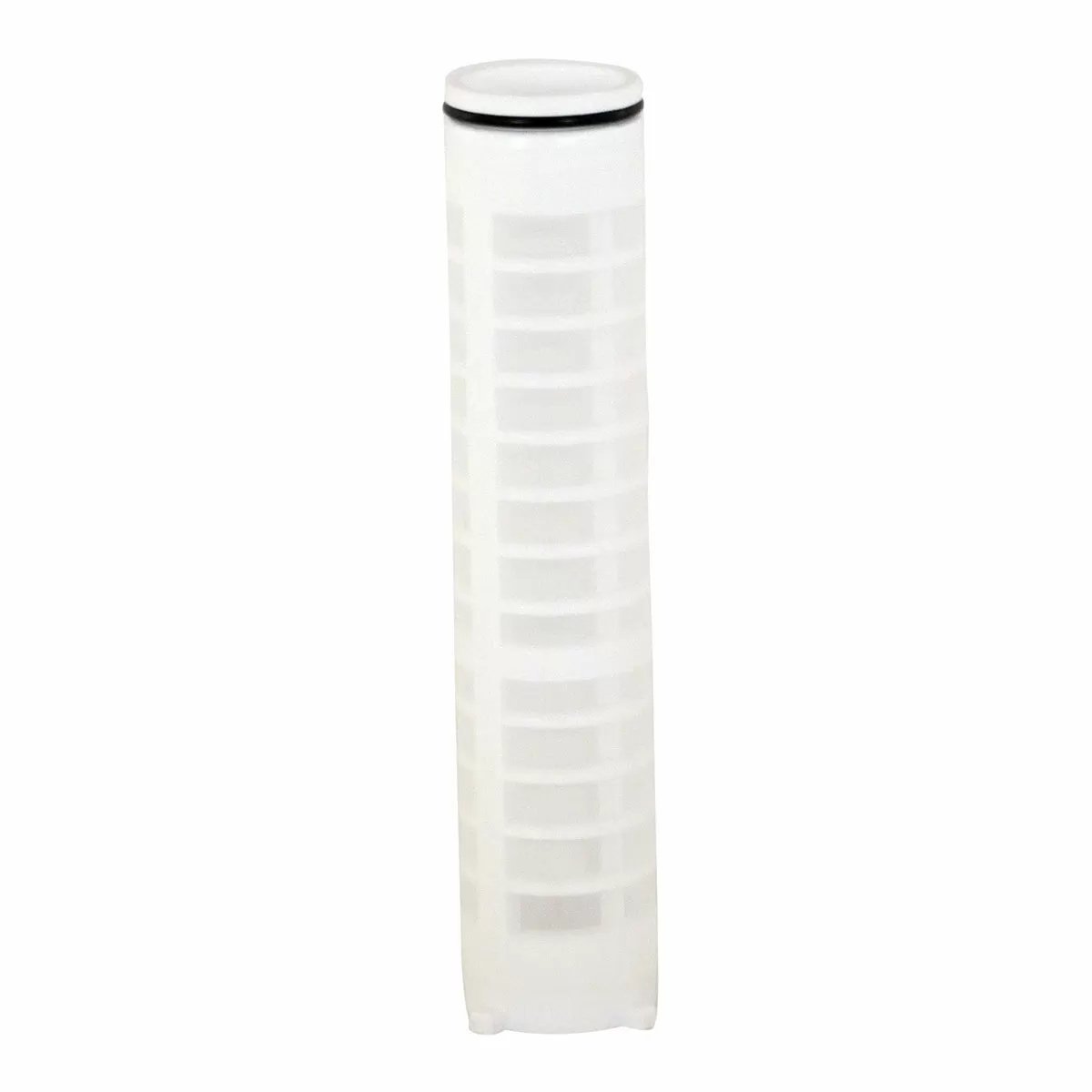

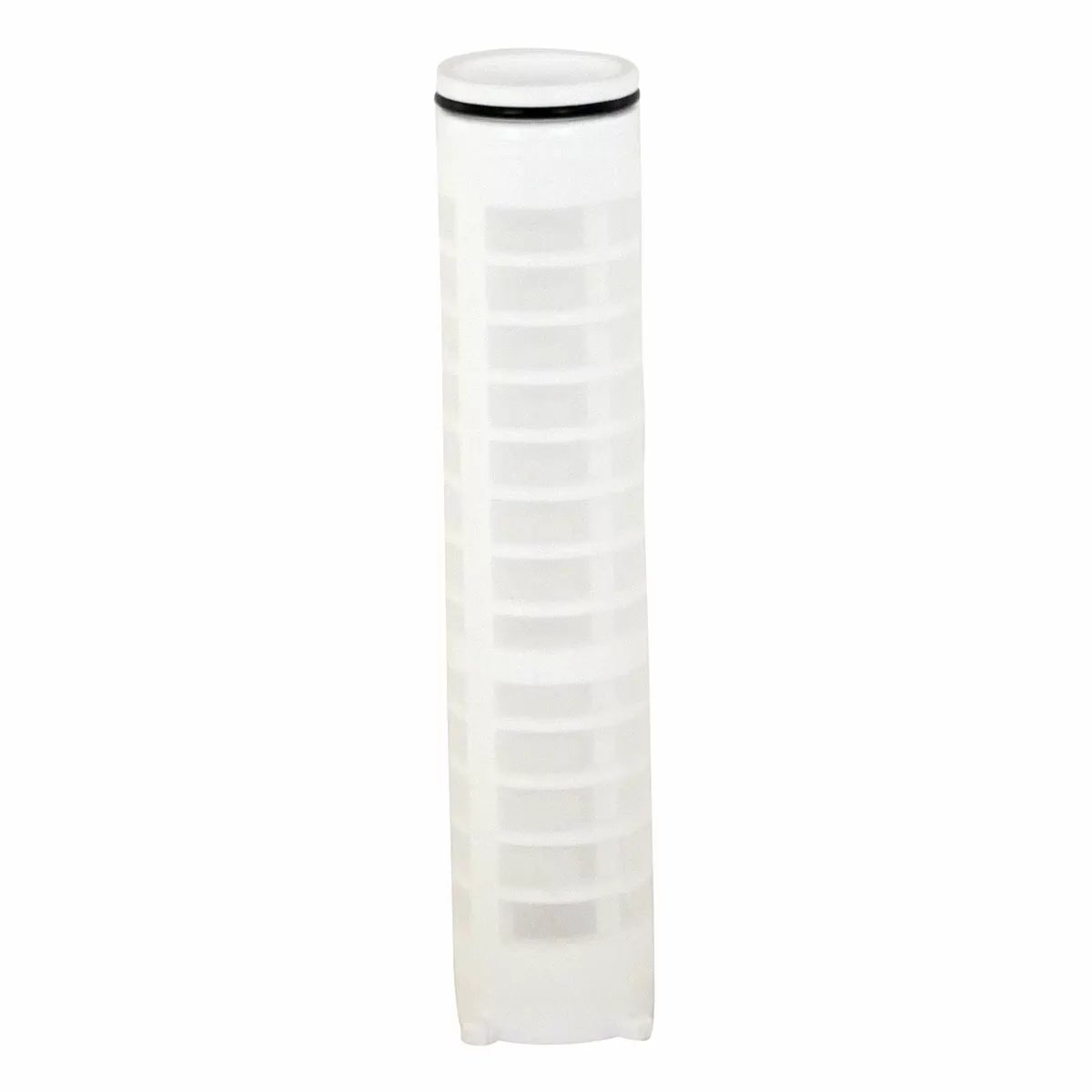

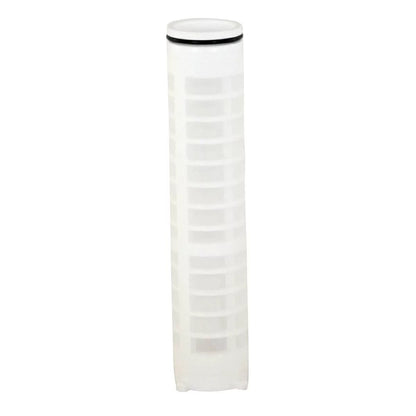

Vu-Flow Spin Down™ Filters - 1 1/2"
More about Vu-Flow Spin Down™ Filters - 1 1/2"
Made of polyester, these 1 1/2" Vu-Flow Spin Down replacement sediment filters effectively remove solid particles from water lines. The filters may be cleaned several times before a replacement is needed.
Reduces the following contaminants:
- Coarse Sand
- Dirt
- Extra Fine Sand
- Fine Sand
- Sand
- Sediment
Dimensions: 8 1/8" L x 1 5/16" W
Max Temperature Rating: 72° F
Available 1 1/2" Spin Down Filters
- 24 Mesh/710 Micron, QC Part #120204
- 30 Mesh/533 Micron, QC Part #120202
- 60 Mesh/254 Micron, QC Part #120116
- 100 Mesh/152 Micron, QC Part #120127
- 140 Mesh/104 Micron, QC Part #120203
- 250 Mesh/61 Micron, QC Part #120122
- 1000 Mesh/15 Micron, QC Part #120124
All Available Spin Down™ Options:
| Mesh Size | Micron Size | 3/4" | 1" | 1-1/2" | 2" |
|---|---|---|---|---|---|
| 24 | 710 | — | — | QC Part #120204 | — |
| 30 | 533 | QC Part #120197 | QC Part #120200 | QC Part #120202 | QC Part #120207 |
| 60 | 254 | QC Part #120198 | QC Part #120115 | QC Part #120116 | QC Part #120117 |
| 100 | 152 | QC Part #120143 | QC Part #120125 | QC Part #120127 | QC Part #120141 |
| 140 | 104 | QC Part #120199 | QC Part #120201 | QC Part #120203 | QC Part #120208 |
| 250 | 61 | QC Part #120137 | QC Part #120126 | QC Part #120122 | QC Part #120138 |
| 1000 | 15 | — | — | QC Part #120124 | — |
Note — The larger the mesh #, the smaller the particle sizes that are allowed to pass. For example, a 250 mesh filter is a "finer" filter than a 100 mesh filter. The larger the mesh #, the smaller the micron size and the "finer" the filter. A 24 mesh filter would allow the largest particles to pass through, while a 1000 mesh filter would only allow the smallest particles to pass through.
