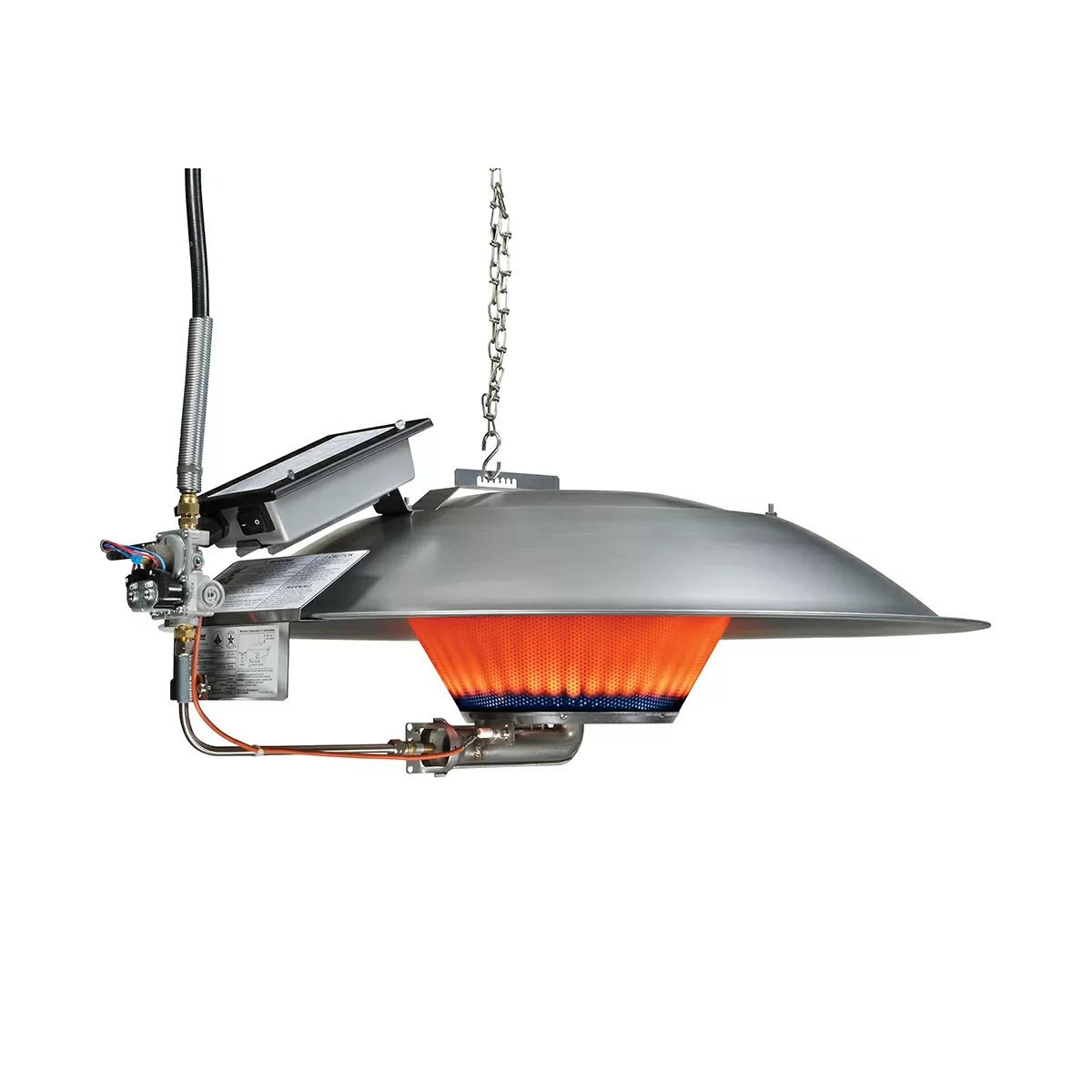

Space-Ray LoPro™ Radiant Gas Brooder - Liquid Propane High Pressure
More about Space-Ray LoPro™ Radiant Gas Brooder - Liquid Propane High Pressure
Get 5% more heat than other brooders with a Liquid Propane High-Pressure Space-Ray LoPro Radiant Gas Brooder. The low, 13" profile makes it easier to work around and saves you space in your poultry houses.
Features
- 40,000 BTU/hr
- 5% more heat than other brooders
- Low Pressure & High Pressure models available
- 13” tall vs the 18” tall profile of our standard Space-Ray brooder heaters
- Factory pre-assembled components for quick install
- Corrosion-resistant materials to resist humidity & ammonia
- Dual fuel regulator converts between gas types with just an orifice change
- Unique 60° emitter angle puts more radiant heat into the primary brood area
- 3-year limited manufacturer warranty
- Direct Spark Ignition
- Water-resistant ignition control box
- All stainless steel & aluminum construction
- 24V Or 120V power supply available; call for details
- Zone Control panel available; call for details
Fully Insulated, Enclosed Emitter Assembly for Durability & Efficiency Space-Ray’s stainless steel emitter assembly is fully insulated and enclosed so the insulation will not crumble or distort in the tough operating conditions normally found in poultry houses. This exclusive design not only provides durability but also prevents heat loss back through the emitter than can occur over time. This results in higher radiant output and continued energy efficiency that translates into annual fuel savings.
Unique 60° Emitter Angle Puts More Radiant Heat Into Primary Brood Area No other radiant gas brooder can provide more radiant heat to the floor of your poultry house than Space-Ray. Our specially designed 60° emitter angle, combined with our deep dish canopy, produces an optimum heat pattern in the primary brood area. This large radiant heat pattern means that fewer brooders are required in each house resulting in fuel savings. Space-Ray’s Unique 60° Emitter Angle is specifically designed to aim the radiant heat directly at the birds where it’s needed most.
Specifications
- Clearance: 36" sides; 18" ceiling & 72" below
- 25'-40' brooder spacing
- 72" min mounting height
- 200 CFM ventilation required
- 35" canopy diameter
- 13" brooder height
- 19 lbs shipping weight
- Direct spark ignition
| QC Part # | LB White Part # | Description | BTU/HR Input | Gas Consumption | Burner Pressure | Min Supply Pressure | Max Supply Pressure | Voltage | Amps |
|---|---|---|---|---|---|---|---|---|---|
| 22695 | LPBL42-L5 | LP Low Pressure | 42,000 | 0.46 GPH/0.42 Therm | 10" w.c. | 11" w.c. | 14" w.c. | 24 VAC | 0.8 |
| 22276 | LPBL42-N5 | NG Low Pressure | 42,000 | 0.46 GPH/0.42 Therm | 4" w.c. | 5" w.c. | 14" w.c. | 24 VAC | 0.8 |
| 22277 | LPBH40-L5 | LP High Pressure | 40,000 | 0.43 GPH/0.40 Therm | 5.0 PSIG (345 mbar) | 5.0 PSIG (345 mbar) | 5.0 PSIG (345 mbar) | 120 VAC | 0.5 |
| 22278 | LPBH40-N5 | NG High Pressure | 40,000 | 0.43 GPH/0.40 Therm | 5.0 PSIG (345 mbar) | 5.0 PSIG (345 mbar) | 5.0 PSIG (345 mbar) | 120 VAC | 0.5 |
