ValCo Power Miser Direct Drive Fans
SKU:
QC Part #13220-12
Regular price
$805
99
Sale price
$805
99
Regular price
Unit price
per
Call for Lead Time
Description
Reviews
Q&A
Documents

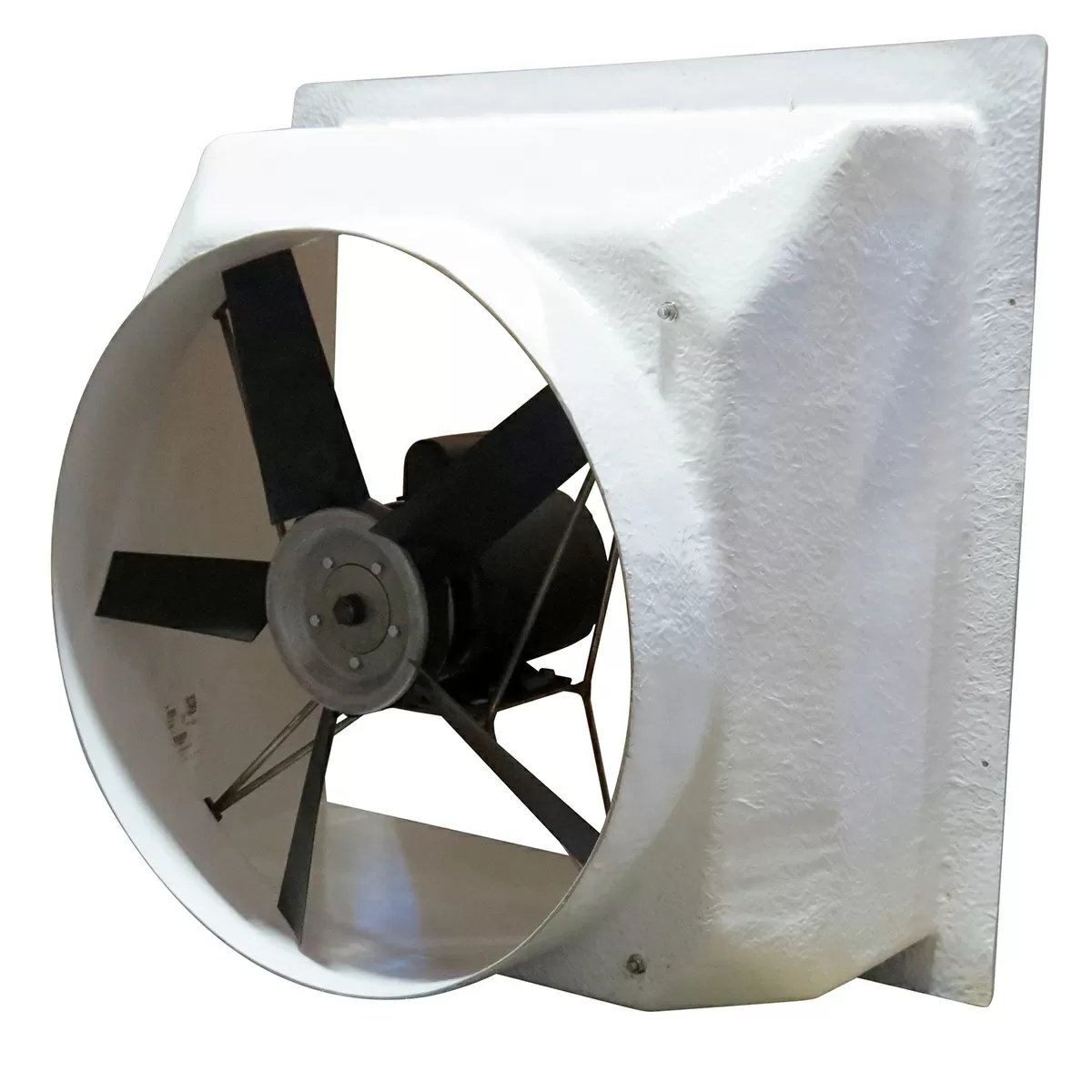

More about ValCo Power Miser Direct Drive Fans
These Power Miser Direct Drive Fans from Val-Co have custom 230 Volt PSC motors. These fans have a unique four-point stainless steel motor mount design to provide minimum air restriction and vibration-free performance. The downward slope of the fan whisks moisture away from the building.
Shutter & poly cone with guard are NOT included; sold separately. Give us a call today at 888-433.5275 to order!
Features
- Matching blades and energy-efficient motors provide maximum CFM/watt or electrical power
- Custom 230V PSC motors with 2 or 3 wire variable speed control option
- Corrosion-resistant molded fiberglass construction
- Poly discharge cones for ultimate performance
- Sloped housing design sheds moisture
- Powder coated guard screens
- PVC shutters are impact-resistant, self-sealing with extruded PVC frames
- Trans Torque Fitting locks tight on motor shaft, no set screws to loosed & allows easy change-out of blade & motor
- Composite Blades offer multi-wing design, cast aluminum hub & individual replacement blades
| QC Part # | Model | HP | Voltage/Hz | Phase | CFM @ 0/CFM/Watt | CMF @ 0.05/CFM/Watt | CFM @ 0.10/CFM/Watt | CFM @ 0.15/CFM/Watt | Dimensions | Rough Opening |
|---|---|---|---|---|---|---|---|---|---|---|
| 13220-12 | PM12W140MPA | 1/4 | 230/60 | 1 | 1,910/9.3 | 1,810/8.8 | 1,720/8.4 | 1,600/7.5 | 22.75" x 32" | 18.5" x 18.5" |
| 13220-21 | PM21W190LPA | 1/2 | 230/60 | 1 | 5,550/14.0 | 5,350/13.1 | 5,170/12.4 | 4,960/11.6 | 31" x 35" | 26.5" x 26.5" |
| 13220-24 | PM24W210MPA | 1/2 | 230/60 | 1 | 6,480/14.1 | 6,120/13.2 | 5,710/12.4 | 5,230/11.4 | 33" x 38" | 29" x 29" |
