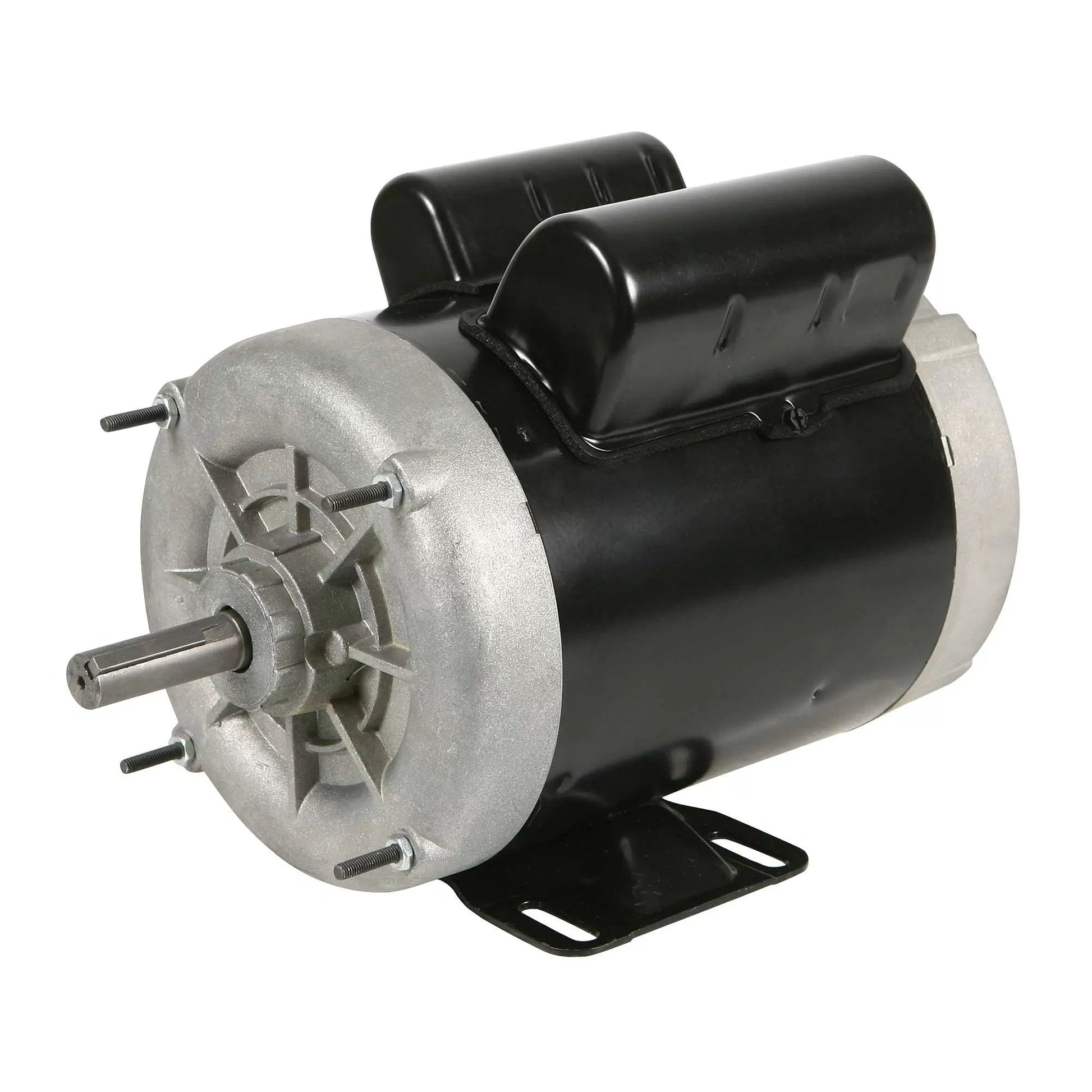

More about A.O. Smith® Century® Farm Building Belted Fan Motor - Model C782
Specially designed for poultry houses, barns and harsh environments, the A.O. Smith Century Farm Building Belted Fan Motor is a must-have for poultry producers. This energy efficient, totally enclosed air over motor is housed in a corrosion-resistant 56 frame. The motor includes double sealed ball bearings, Class B insulation and an automatic reset overload protector. It has a resilient and rigid base and extended thru-bolts 3/4" past the nut. 1 HP.
Specifications
- 1.4 Service Factor
- Single Phase
- Capacitor Start/Capacitor Run
QC Part # | Model | HP | RPM | Volts | Amps | Shaft | Weight (lbs) | "C" Dimensions | Frame |
---|---|---|---|---|---|---|---|---|---|
190280 | C580 | 1/2 | 1800 | 230/115 | 6.4/3.2 | 5/8" | 30 | 11.44” | 56 |
190281 | C581 | 3/4 | 1800 | 230/115 | 3.6/7.2 | 5/8" | 35 | 11.94" | 56 |
190282 | C582 | 1 | 1800 | 230/115 | 4.8/9.6 | 5/8" | 39 | 12.44" | 56 |
190018* | C782RB | 1 | 1725/1425 | 230/115 | 4.3/8.6//5.2/10.4 | 5/8" | 41 | 12.2" | 56 |
