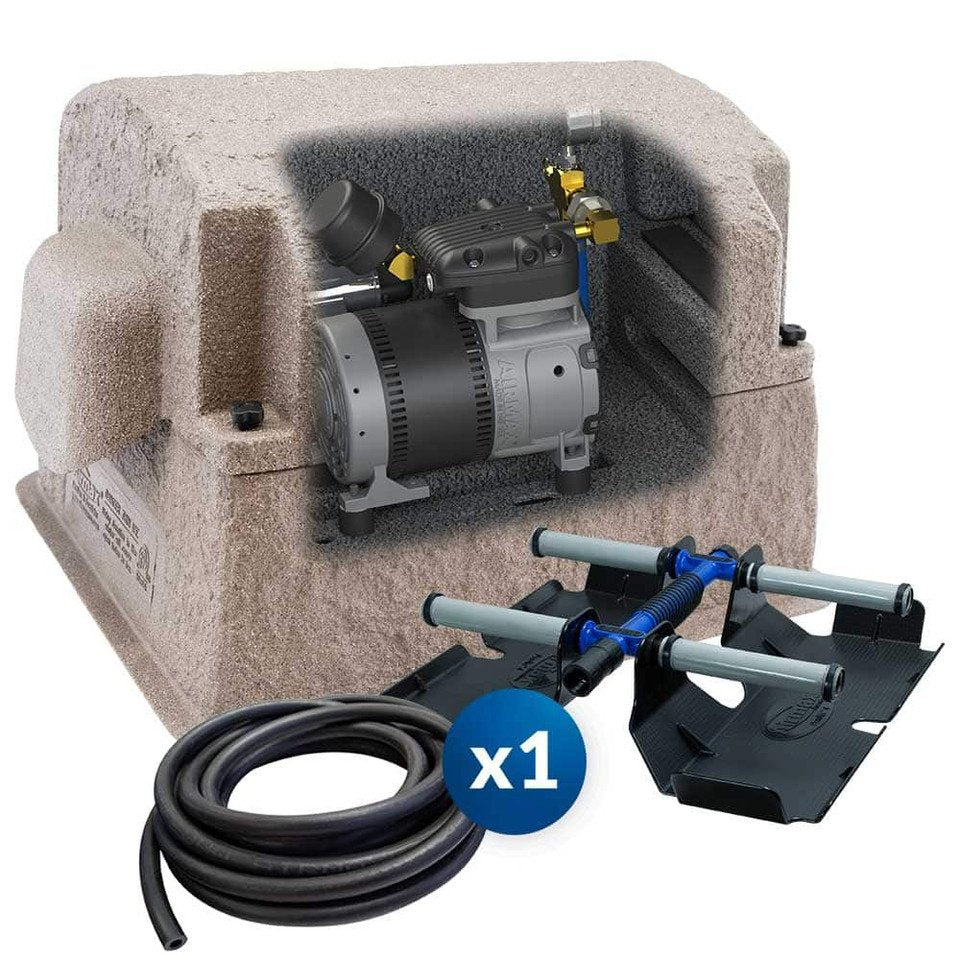

The Airmax PondSeries PS10 Aeration System is designed to efficiently aerate ponds and small lakes up to 1 surface acre and 50 ft. deep. Using a shore-mounted SilentAir® compressor, the system delivers air to a ProAir™ 4 Weighted Diffuser located on the pond bottom. This process creates a column of rising bubbles that circulates the water column, eliminates temperature stratification, and increases oxygen levels throughout the pond. The result? Clearer water, less muck, and healthier aquatic ecosystems—all in just 90 days.

Key Features

Whisper-Quiet, Energy-Efficient Performance

• SilentAir® 1/4 HP Rocking Piston Compressor with SmartStart Technology (IST) protects the compressor during pressurized restarts.

• Mounted on vibration-reducing rubber feet for ultra-quiet operation.

• Delivers up to 2.3 CFM of air at a low running cost—as little as $0.44 per day.

Durable, Protective Cabinet

• Airmax Composite Cabinet with a faux rock finish blends seamlessly into landscaping.

• ETL certified, pre-wired electrical box with 6 ft. power cord included.

• Features an integrated ventilation fan with a rain shroud and high-density air intake filter.

• Elevated base protects internal components from floodwater.

• Cabinet Dimensions: 23 in. L x 17 in. W x 15 in. H

• 10-year warranty on cabinet, 3-year warranty on electrical components

Maximum Oxygen Uptake

• ProAir™ 4 Weighted Diffuser uses high-efficiency, low-maintenance membrane sticks to release tiny oxygen bubbles into the water.

• Built-in check valve prevents back pressure to the compressor.

• Innovative sled design keeps the diffuser submerged and upright.

• 5-year warranty on diffuser

Flexible & Easy Installation

• Can be installed at the water's edge or up to 1/4 mile from the pond—no shoreline power required.

• Compatible with 3/8 in. or 5/8 in. EasySet™ weighted airline (sold separately), designed to resist rips, tears, and avoid floating.

• Optional quick disconnects simplify system removal for maintenance or winter storage.

Enhanced Water Quality

• Increases oxygen levels and promotes beneficial bacteria, reducing excess nutrients and organic buildup.

• Helps eliminate thermocline and improve water clarity.

Specifications

• Max Pond Size: 1 acre

• Max Diffuser Depth: 50 ft.

• Max Air Flow: 2.3 CFM

• Running Amps: 1.6 A

• Voltage: 115V

• Estimated Monthly Operating Cost: $13.20
