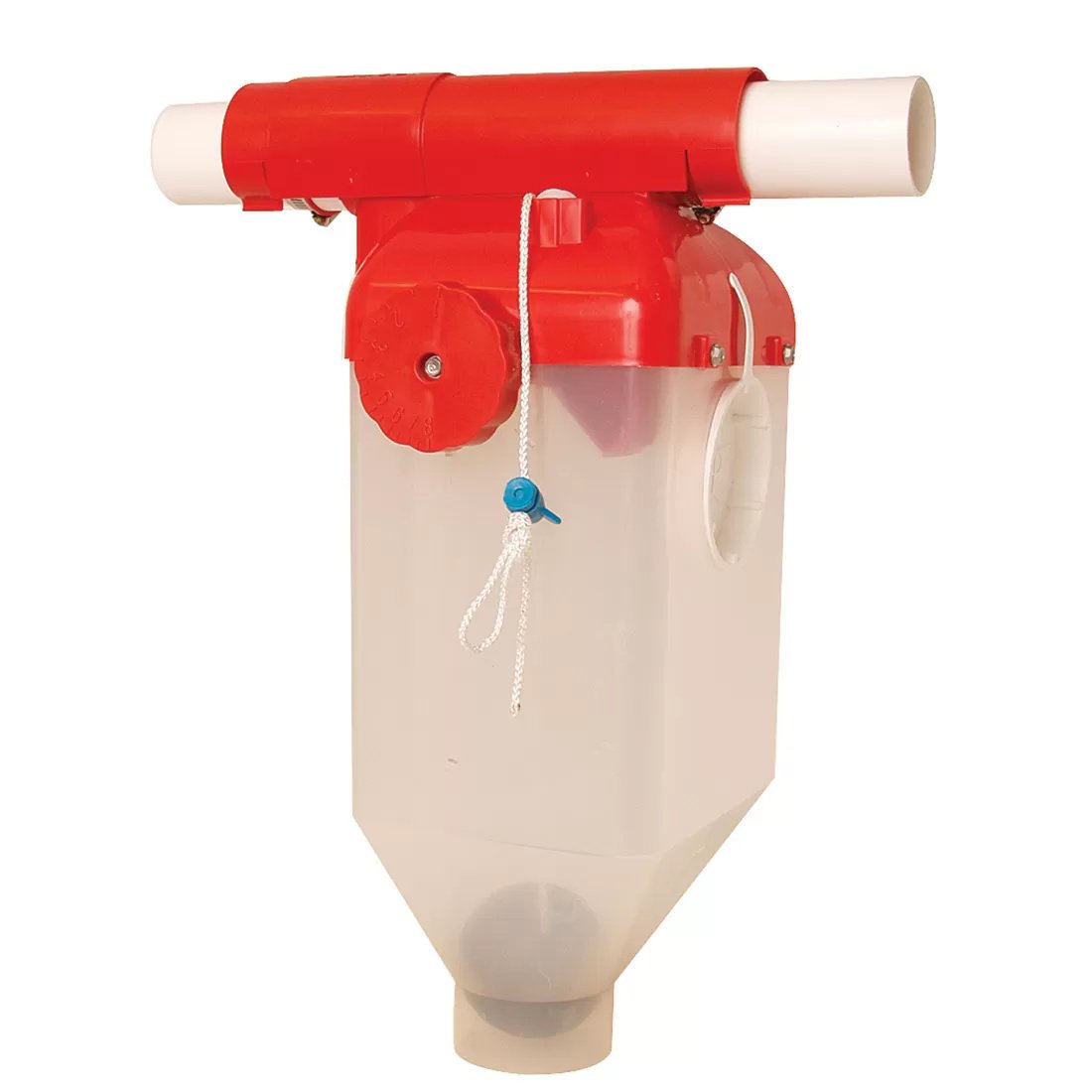

Designed to meet the automated feeding requirements of gestating and lactating sows, the AP Model 220 Ultra-Drop Feeder features convenient adjustment and a balanced design. The one-handed adjustment and balanced design ensure the feeder hangs straight. The translucent body allows visual confirmation of feed level and proper operation at a glance.

Ultra-Drop feeders can be dumped manually using either a lever or a winch, or can be equipped with electric or pneumatic actuators for timed, automated feedings.

Features

• Reliable Feed Flow A weighted ball valve securely closes off the feeder and provides agitation as it is raised through the feed, ensuring feed flow when emptying for a complete clean-out
• All-plastic construction, injection-molded from UV stable materials, and stainless steel hardware
• Individual Slide Shut-Off Easily-accessed slide shut-off cuts feed flow to the feeder
• Easy Adjustment A half-turn of the adjustment knob takes the feeder from 1 lb to 8 lbs, low enough for multiple feedings in lactation and high enough for once-a-day feeding in gestation
• Convenient knob adjustment
• Center mounted design ensures the feeder hangs straight and maintains stability
• Translucent body allows visual confirmation of feed level

Specifications

• Front View Width: 10.13"
• Overall Height: 19.23" - measured from top of the feed line to the bottom of the drop feeder
• Side View Width: 10.08"
• Outlet O.D.: 3.25
• Minimum Capacity: 1 lbs
• Maximum Capacity: 8 lbs
