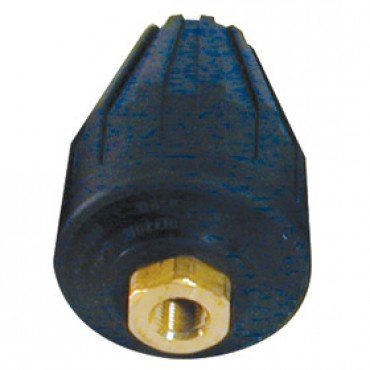

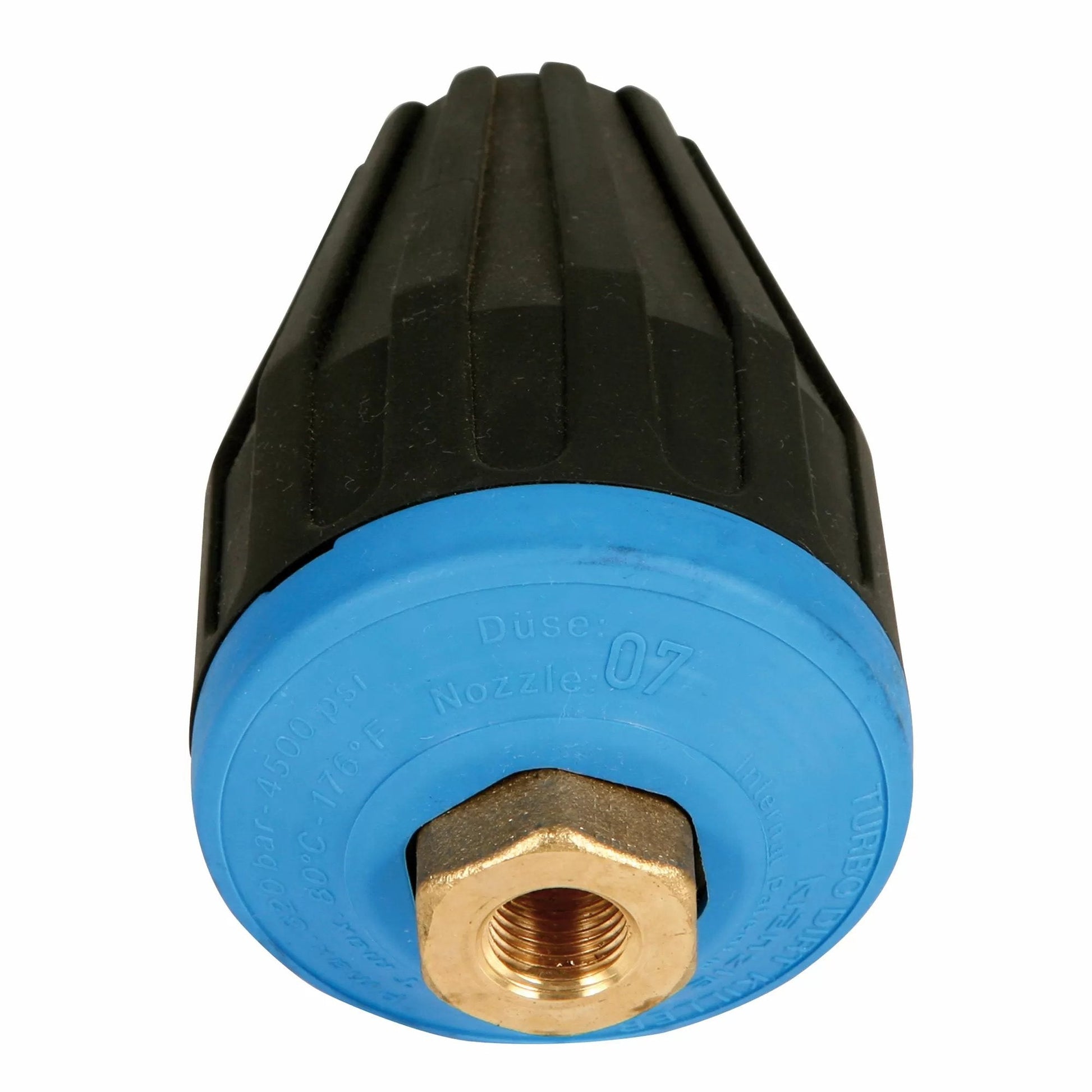

Dirt Killer IDK Series Nozzle
More about Dirt Killer IDK Series Nozzle
The Impact of a 0° Nozzle with a 25° Fan!
Blast dirt, grime, slime, mold, mildew and more with the Dirt Killer IDK Series Nozzle. This nozzle creates a whirlwind of water droplets so powerful that embedded dirt is blown away, saving you chemicals, water, time and money
The rotating turbine delivers the punch of a 0° nozzle with a 25° fan, creating 10 times the cleaning impact of a standard flat tip nozzles. This will cut cleaning time in half. The Dirt Killer IDK Series Nozzles give a less powerful machine the impact of a larger, more powerful pressure washer.
Exclusive Features:
- Spins slower
- Produces greater impact
- Used for water blasting and heavy-duty cleaning
- 4,700 PSI
- 180° F Maximum Temperature
- 1/4" FPT
Available in 5 Sizes:

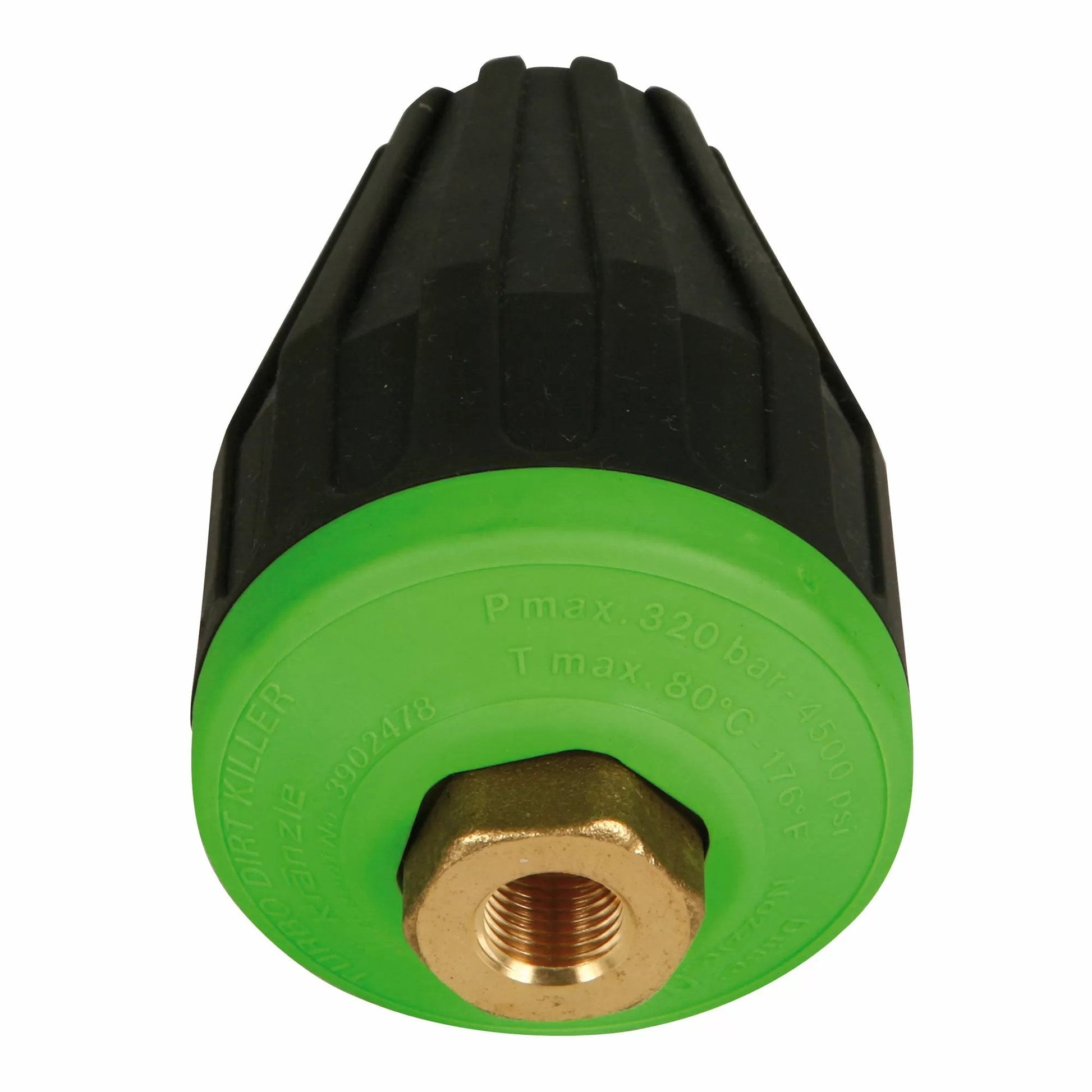

- #110031 — 4.5 (Green)

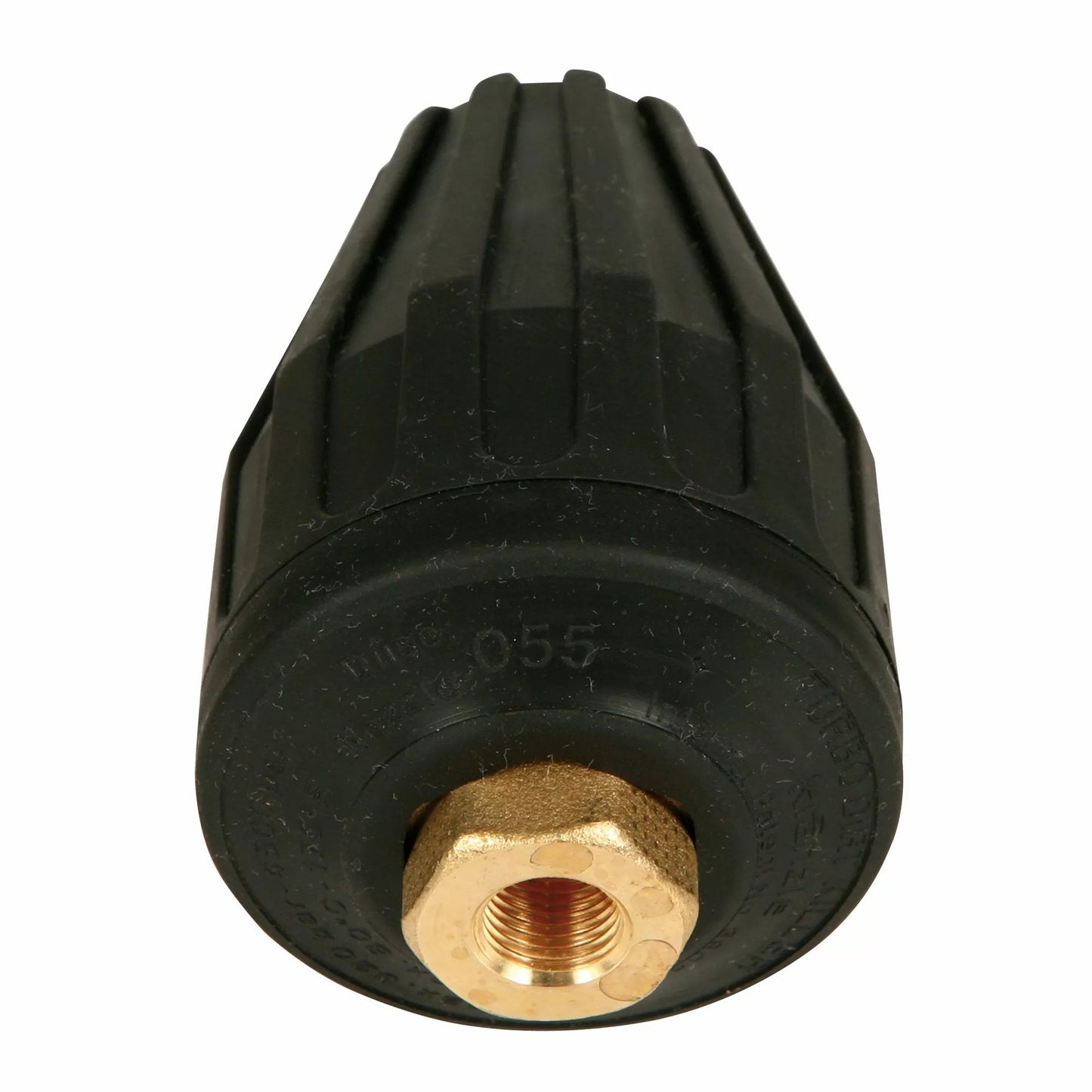

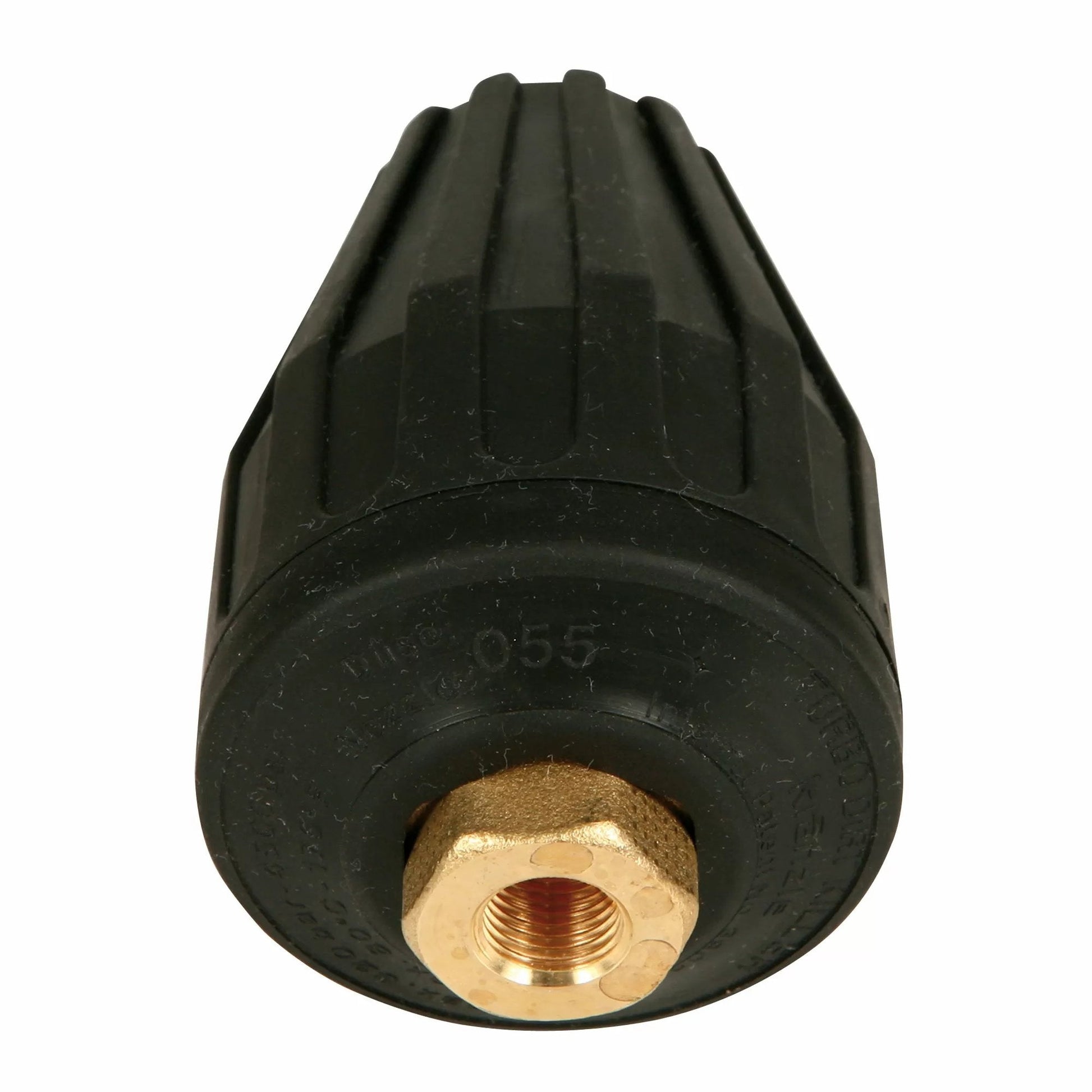

- #110048 — 5.5 (Black)

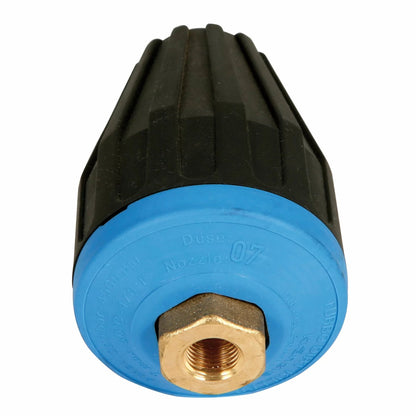

- #110034 — 7.0 (Blue)

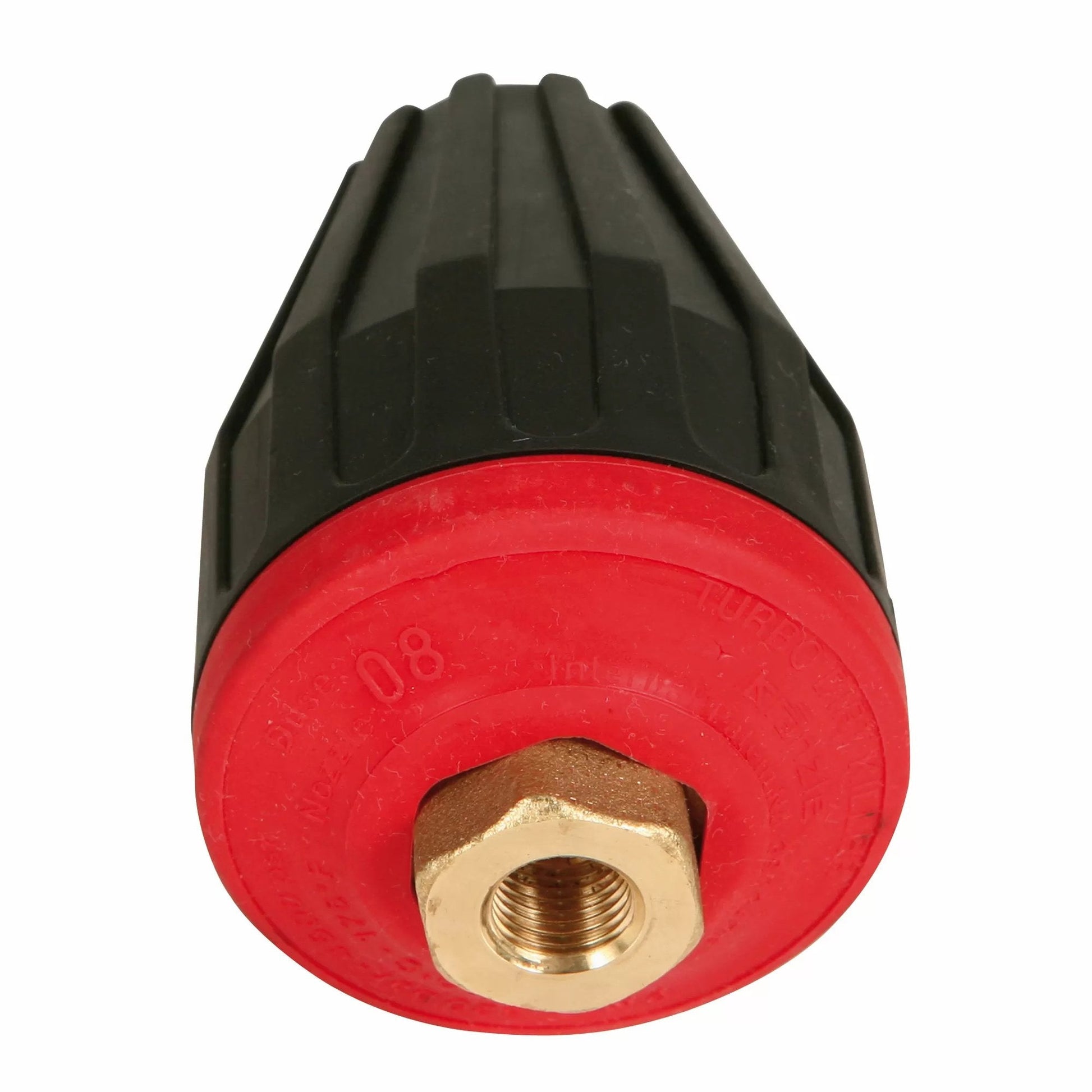

- #110036 — 8.0 (Red)

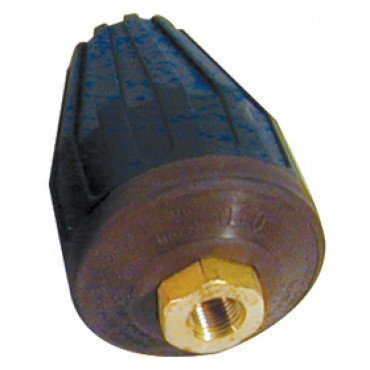

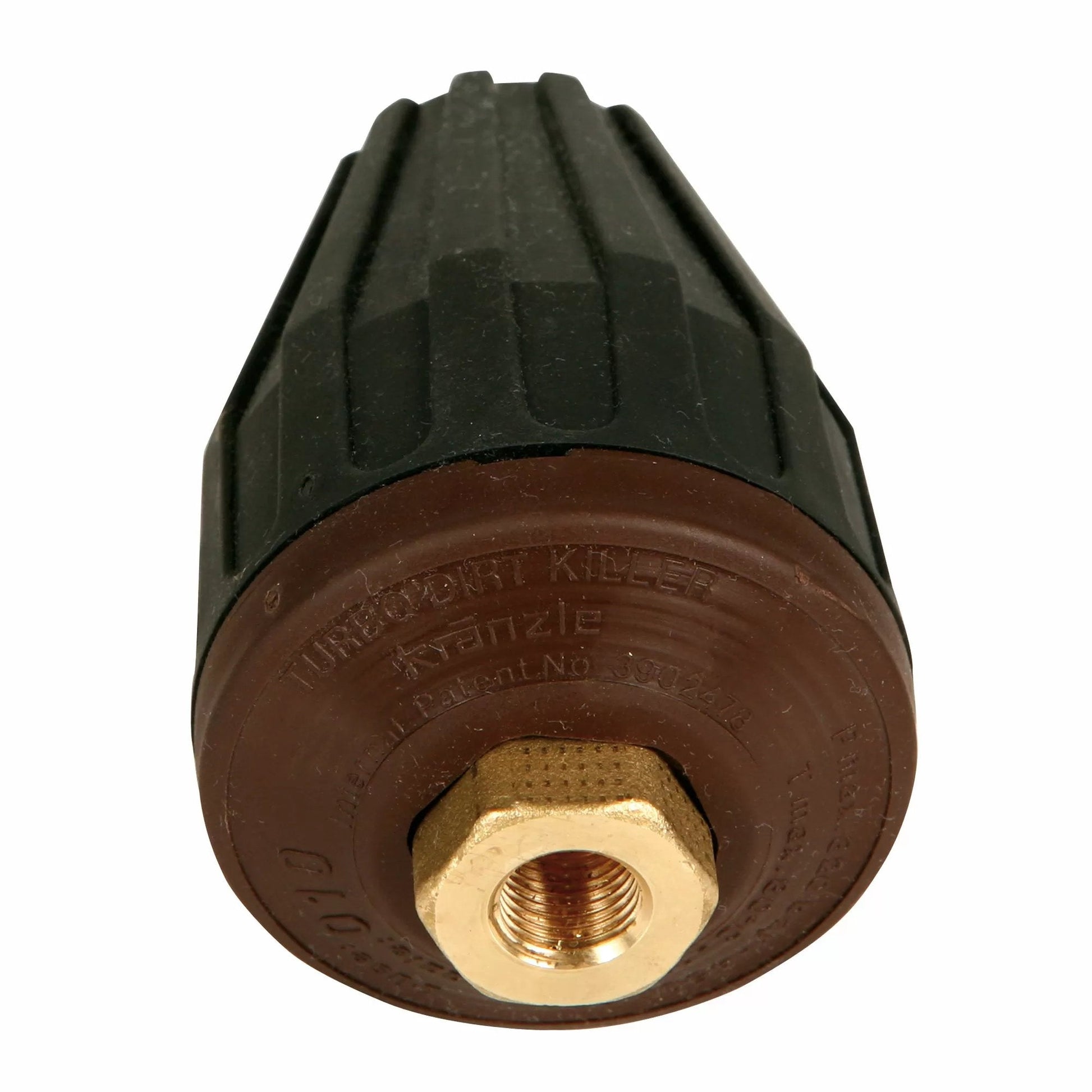

- #110037 — 10 (Brown)
Common Applications: Removal of concrete from forms, removal of mud and clay from equipment, cleaning of hog confinements and farrowing crates.
Universal Nozzle Sizing Chart:
| PSI | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nozzle Size | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| 3.5 | 1.70 | 1.90 | 2.17 | 2.45 | 2.73 | 3.05 | 3.32 | 3.50 |
| 4.0 | 2.00 | 2.20 | 2.50 | 2.80 | 3.10 | 3.50 | 3.80 | 4.00 |
| 4.5 | 2.20 | 2.40 | 2.80 | 3.00 | 3.60 | 3.90 | 4.30 | 4.50 |
| 5.0 | 2.50 | 2.80 | 3.10 | 3.40 | 4.00 | 4.40 | 4.70 | 5.00 |
| 5.5 | 2.80 | 3.00 | 3.40 | 3.80 | 4.40 | 4.80 | 5.20 | 5.50 |
| 6.0 | 3.00 | 3.20 | 3.70 | 4.20 | 4.80 | 5.20 | 5.70 | 6.00 |
| 6.5 | 3.30 | 3.60 | 4.00 | 4.60 | 5.20 | 5.70 | 6.00 | 6.50 |
| 7.0 | 3.50 | 3.80 | 4.30 | 5.00 | 5.60 | 6.10 | 6.60 | 7.00 |
| 7.5 | 3.80 | 4.10 | 4.60 | 5.30 | 6.00 | 6.50 | 7.00 | 7.50 |
| 8.0 | 4.00 | 4.40 | 5.00 | 5.60 | 6.20 | 7.00 | 7.50 | 8.00 |
| 8.5 | 4.30 | 4.60 | 5.30 | 6.00 | 6.70 | 7.40 | 8.00 | 8.50 |
| 9.0 | 4.50 | 5.00 | 5.50 | 6.40 | 7.10 | 7.80 | 8.50 | 9.00 |
| 9.5 | 4.80 | 5.20 | 5.80 | 6.80 | 7.60 | 8.30 | 9.00 | 9.50 |
| 10.0 | 5.00 | 5.40 | 6.10 | 7.00 | 8.00 | 8.70 | 9.40 | 10.00 |
| 11.0 | 5.50 | 5.80 | 6.70 | 8.75 | 9.00 | 9.55 | 10.30 | 11.00 |
| 12.0 | 6.00 | 6.40 | 7.30 | 8.40 | 9.50 | 10.40 | 11.20 | 12.00 |
| *All units are in GPM | ||||||||
Dirt Killer Nozzle Maintenance: Sand, grit or rust particles in water further reduce the life expectancy of a Dirt Killer Nozzle. Follow these steps to ensure an extended life for your Dirt Killer Nozzle.
- If the nozzle slows, emits a bad pattern or stops, cease using the nozzle immediately. Failure to do so may cause turbine damage. Disassemble the nozzle and clean nozzle and nozzle shaft.
- Filter inlet water before the pump and use a high pressure filter.
- When starting, point nozzle down to prevent ceramic tip damage.
- Keep water temperatures below 180° F
- Do not trigger on and off. This causes excessive wear.
Dirt Killer Nozzle Rebuilding Instructions:
- Remove cover and unscrew inlet adapter.
- Remove turbine nozzle and check for clogs.
- If clogged, clear turbine nozzle and reassemble.
- To rebuild entire nozzle, remove all contents. Place small O-ring on tip of seat and smear with 272 Loctite and press set into tip of nozzle.
- Change large O-ring on inlet adapter.
- Drop turbine nozzle into nozzle body and screw inlet adapter on. Back on nozzle turbine should not be centered.
- Replace cover.
