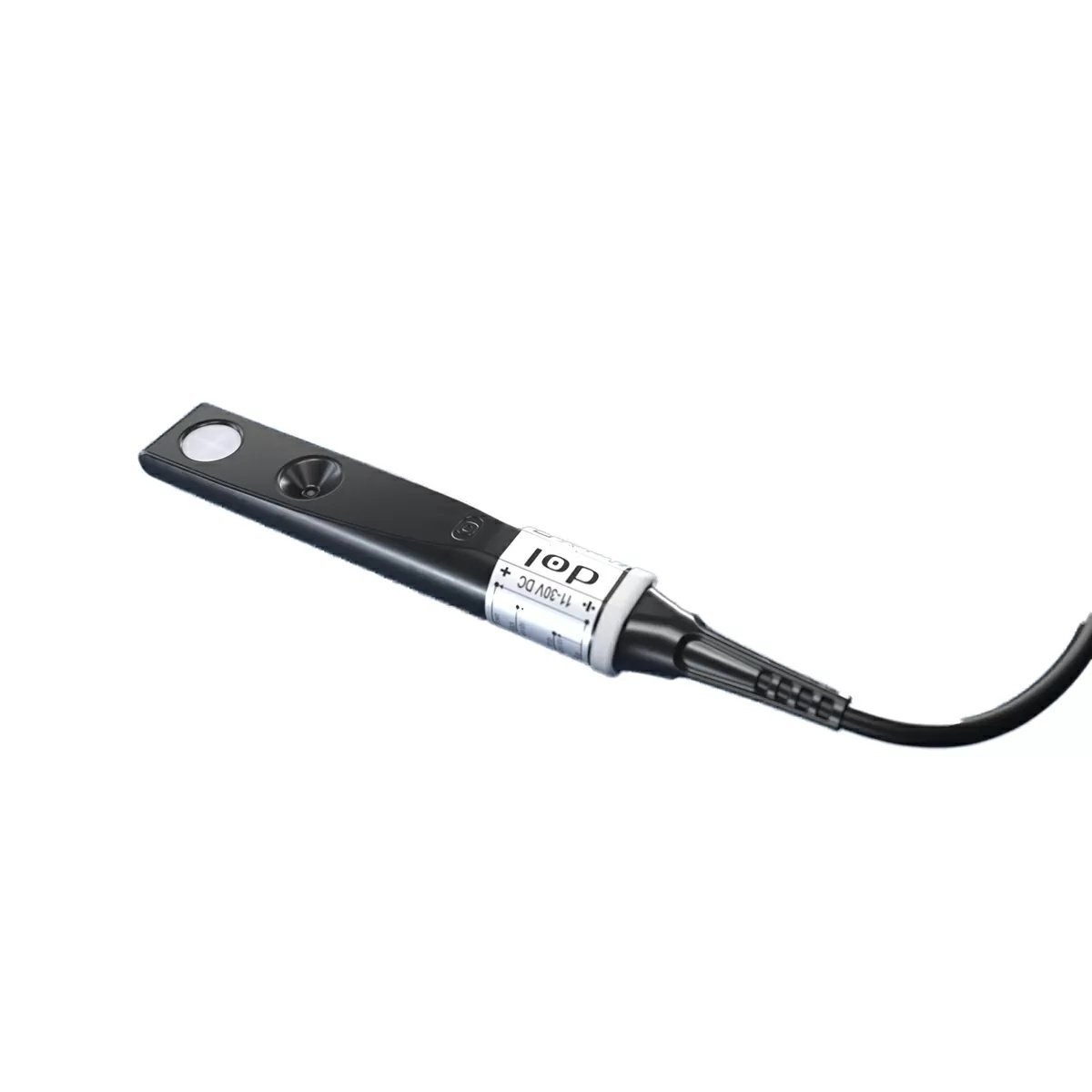

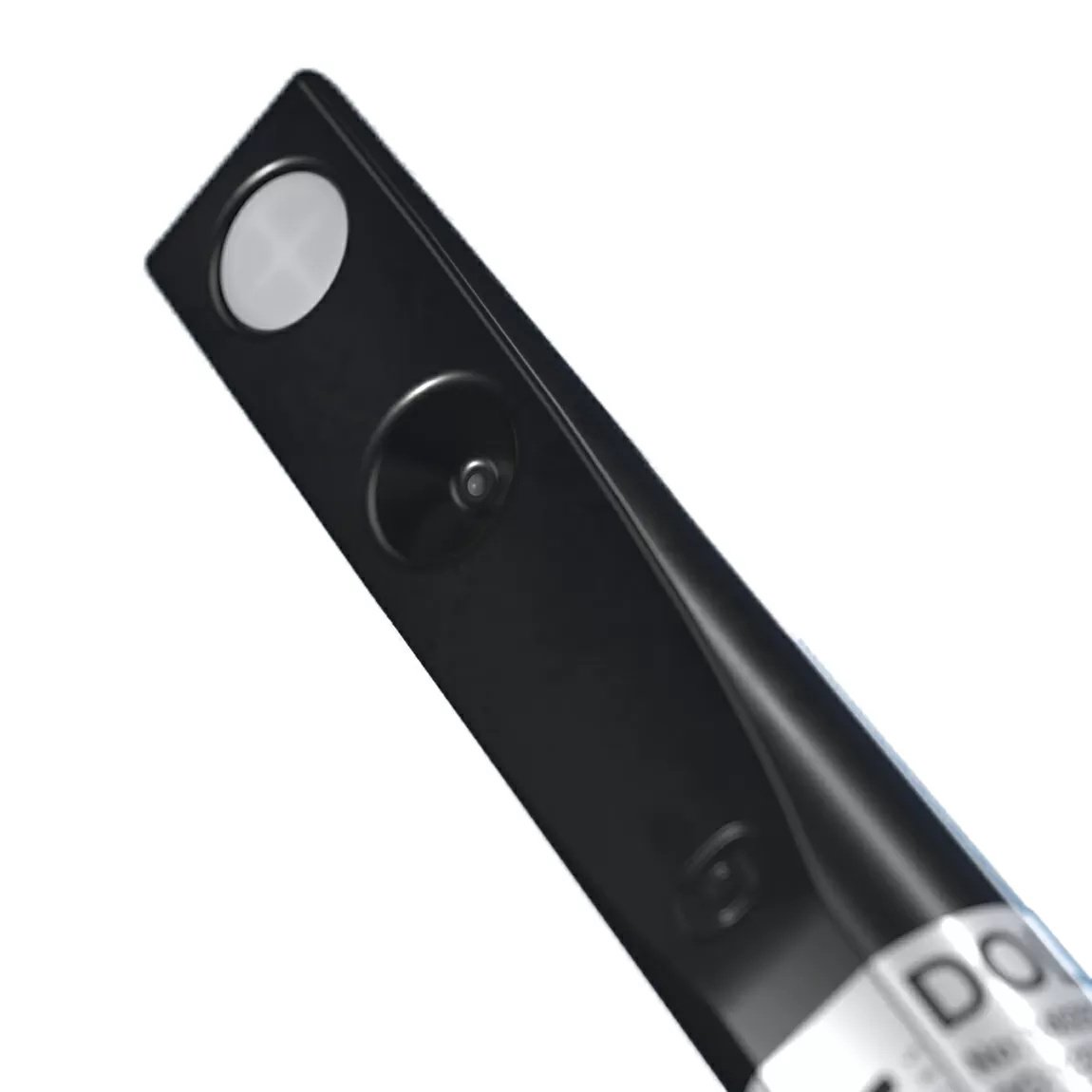

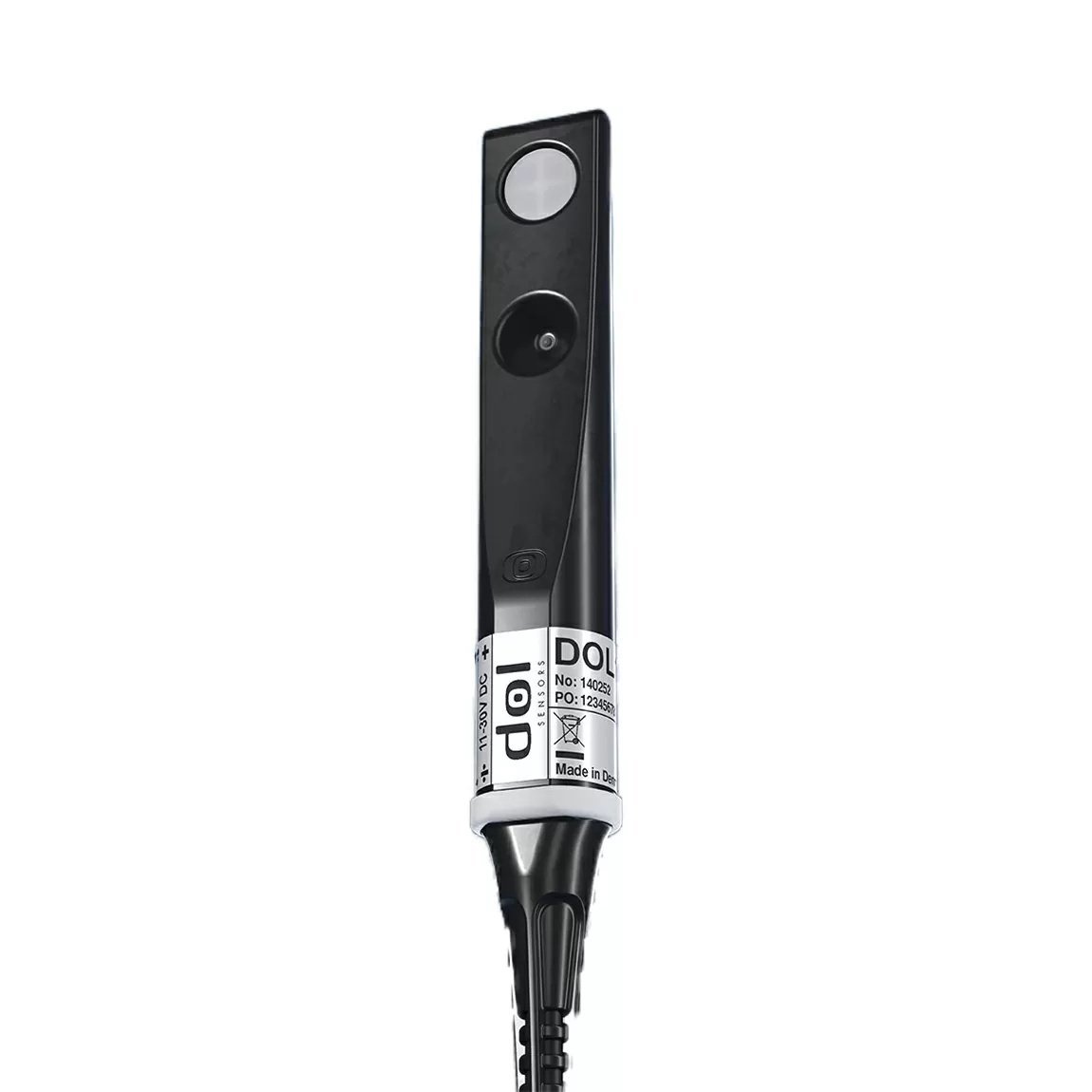

The DOL 114 Humidity & Temperature Sensor - 4-20 mA from DOL Sensors is a high-precision sensor for measuring relative humidity and temperature. Intended for use in livestock houses, however it is also suited for industrial applications.

Features

• Features [2] 4-20 mA analogue outputs with very low output resistances
• Full protection against short circuits & wiring failures
• Special sensor element & built-in Teflon filter enables applications in livestock houses with constant high humidity
• Microprocessor controlled
• 2-color LED to communicate the operation status & error diagnostics

Specifications

• Humidity Measurement Range: 0-100% RH
• Temperature Measurement Range: -40° F to 140° F
• Supply Voltage: 11-30 VDC
• Operation & Storage Temp: -40° F to 140° F
• Cable Length: 6.5'
• Length of Sensor: 6.06"
• Shipping Dimensions: 6.7" x 10.35" x 1.2"

Works With: Rotem, CTB, AP, Maximus, Munters, Aerotech, Vencomatic, Big Dutchman & Val-Co
