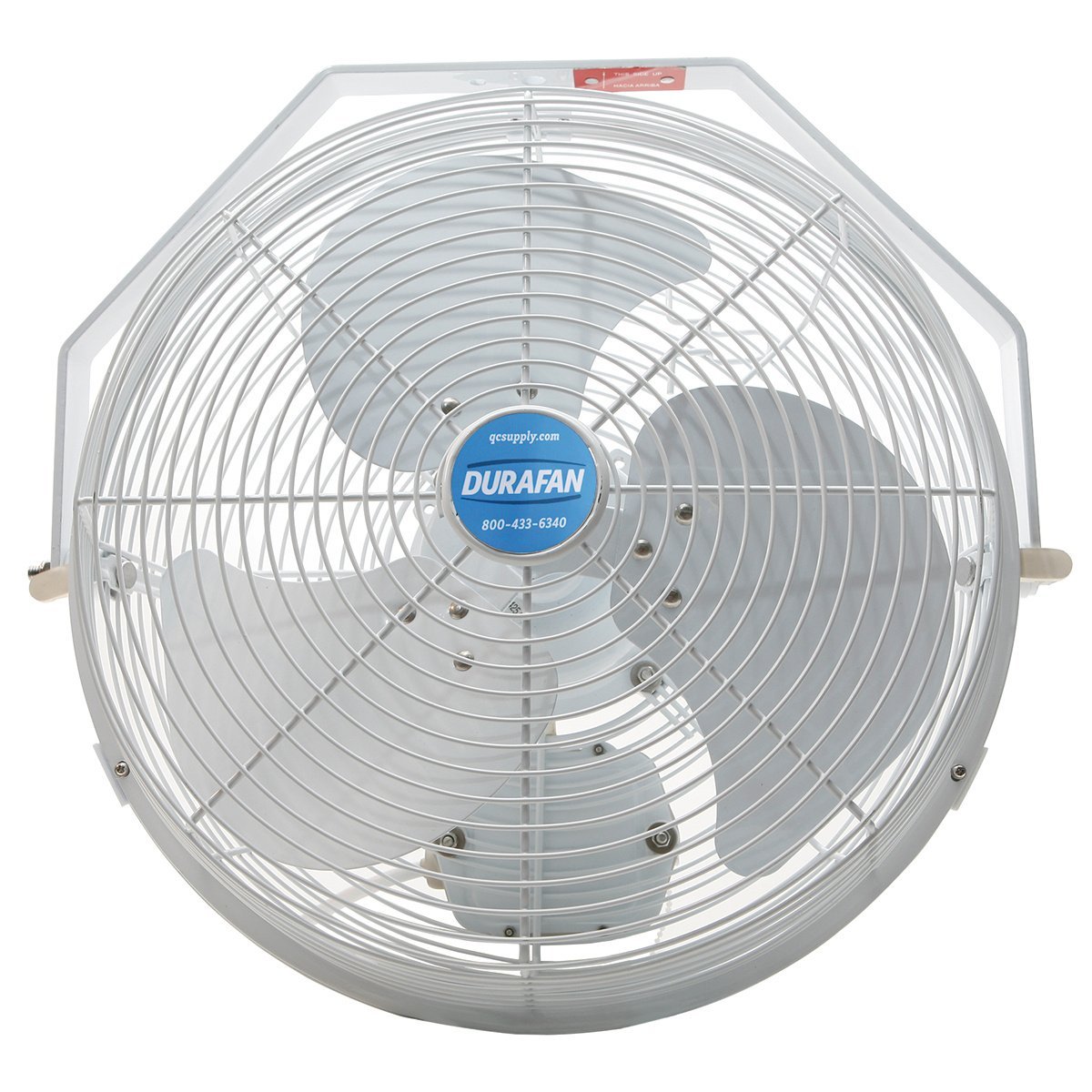

DURAFAN® Indoor/Outdoor Non-Oscillating Wall Mount Fan - 18"
More about DURAFAN® Indoor/Outdoor Non-Oscillating Wall Mount Fan - 18"
QC Supply’s DURAFAN 18" Indoor/Outdoor Wall Mount Non-Oscillating Fan is perfect for circulating large volumes of air in both outdoor and indoor spaces where room is limited, such as livestock buildings, poultry houses, and wash bays. This high-performance industrial fan is designed for high-moisture environments, featuring a sealed motor and durable aluminum blades. The white fan comes with a wall mount kit for easy installation.
Also Available: DURAFAN 18" Indoor/Outdoor Wall Mount Non-Oscillating Black Fan, QC Part #10455.
Features/Advantages
- High-Grade Steel Construction: Ensures durability and longevity.
- Factory-Balanced, Powder-Coated Aluminum Blades: Provides smooth operation and corrosion resistance.
- Adjustable Wall-Mount Bracket: Pivots up to 140° for optimal air direction.
- Corrosion-Resistant Finish: Powder-coated for enhanced durability.
- UL507 Rated: Tested and approved for use with misting and fogging rings, suitable for both indoor and outdoor applications.
- 3-Speed Motor: Features sealed, permanently lubricated ball bearings, thermal overload protection, and a convenient pull chain for speed adjustment.
- Safety: Equipped with an OSHA-approved grill.
- Standard 9' Cord: Included with all sizes.
- Warranty: Comes with a 1-year manufacturer warranty.
Ideal Uses
- Outdoor Loading Docks
- Residential Areas
- Livestock Buildings
- Poultry Houses
- Amusement Parks
- High Moisture Environments
- Warehouses
- Wash Bays
- Sporting Events
- Garages
Enhance your air circulation with the reliable and efficient DURAFAN 18" Indoor/Outdoor Wall Mount Non-Oscillating Fan, the ideal basket fan for various applications. Whether you need a garage fan, industrial fan, or a versatile indoor/outdoor fan, the DURAFAN delivers exceptional performance in any setting.
Dimensions
| 10431/10465 | 10432/10455 | |
|---|---|---|
| 14" | 18" | |
| A | 18 1/2" | 22 1/4" |
| B | 18" | 22 3/4" |
| C | 7" | 8 1/4" |
A - Outside to outside with bracket
B - Overall height w/bracket
C - Depth from front to back
| QC Part # | Type | Color | Size | HP | Speed | Volts | Amps | RPM | CFM | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 10431 | Non-Oscillating | White | 14" | 1/16 | 3 | 120 | 1.08/.09/.795 | 1550/1440/1250 | 2473/1996/1452 | 15 lbs. |
| 10465 | Non-Oscillating | Black | 14" | 1/16 | 3 | 120 | 1.08/.09/.795 | 1550/1440/1250 | 2473/1996/1452 | 15 lbs. |
| 10432 | Non-Oscillating | White | 18" | 1/10 | 3 | 120 | 1.45/1.35/1.27 | 1570/1400/1000 | 6357/5086/4068 | 23 lbs. |
| 10455 | Non-Oscillating | Black | 18" | 1/10 | 3 | 120 | 1.45/1.35/1.27 | 1570/1400/1000 | 6357/5086/4068 | 23 lbs. |
