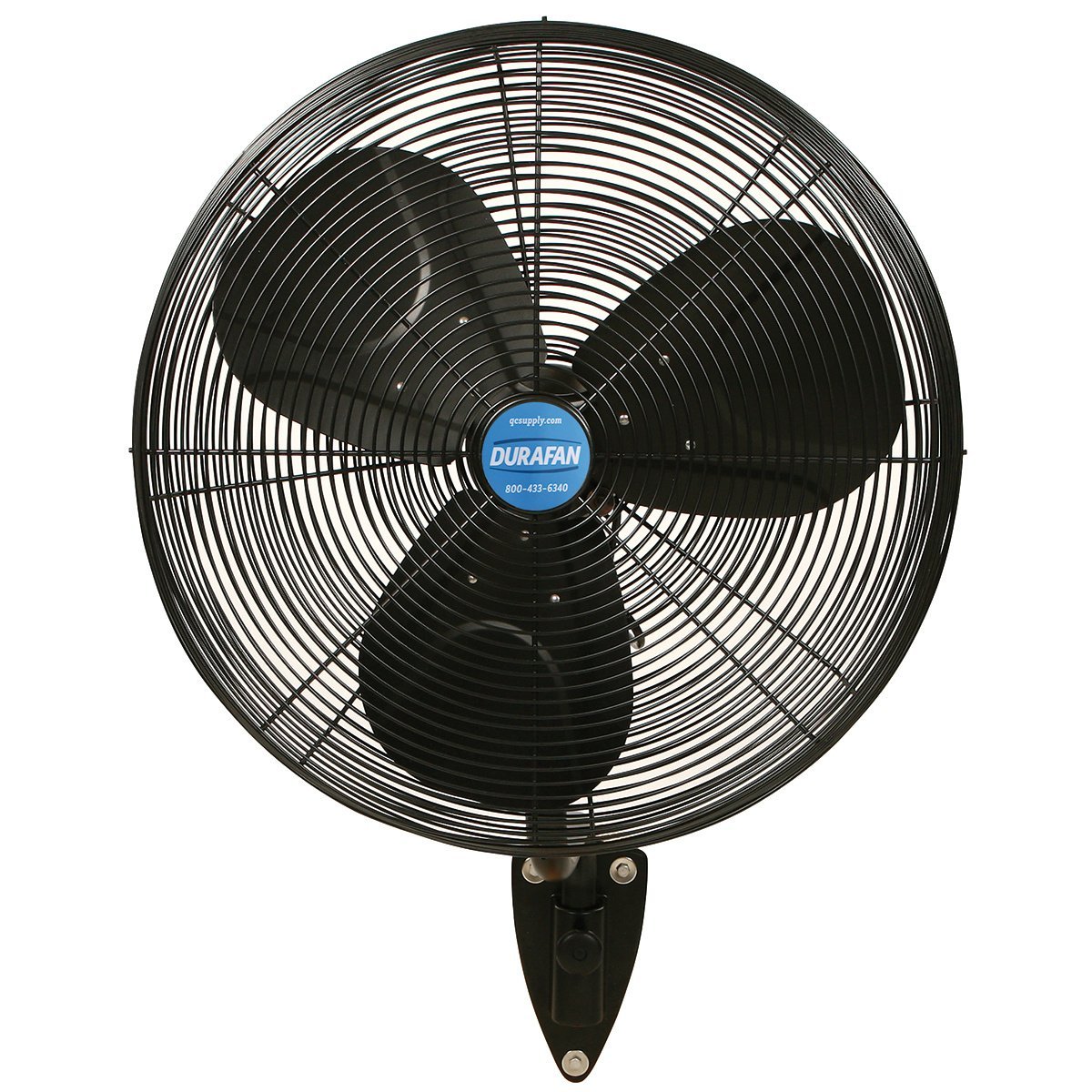

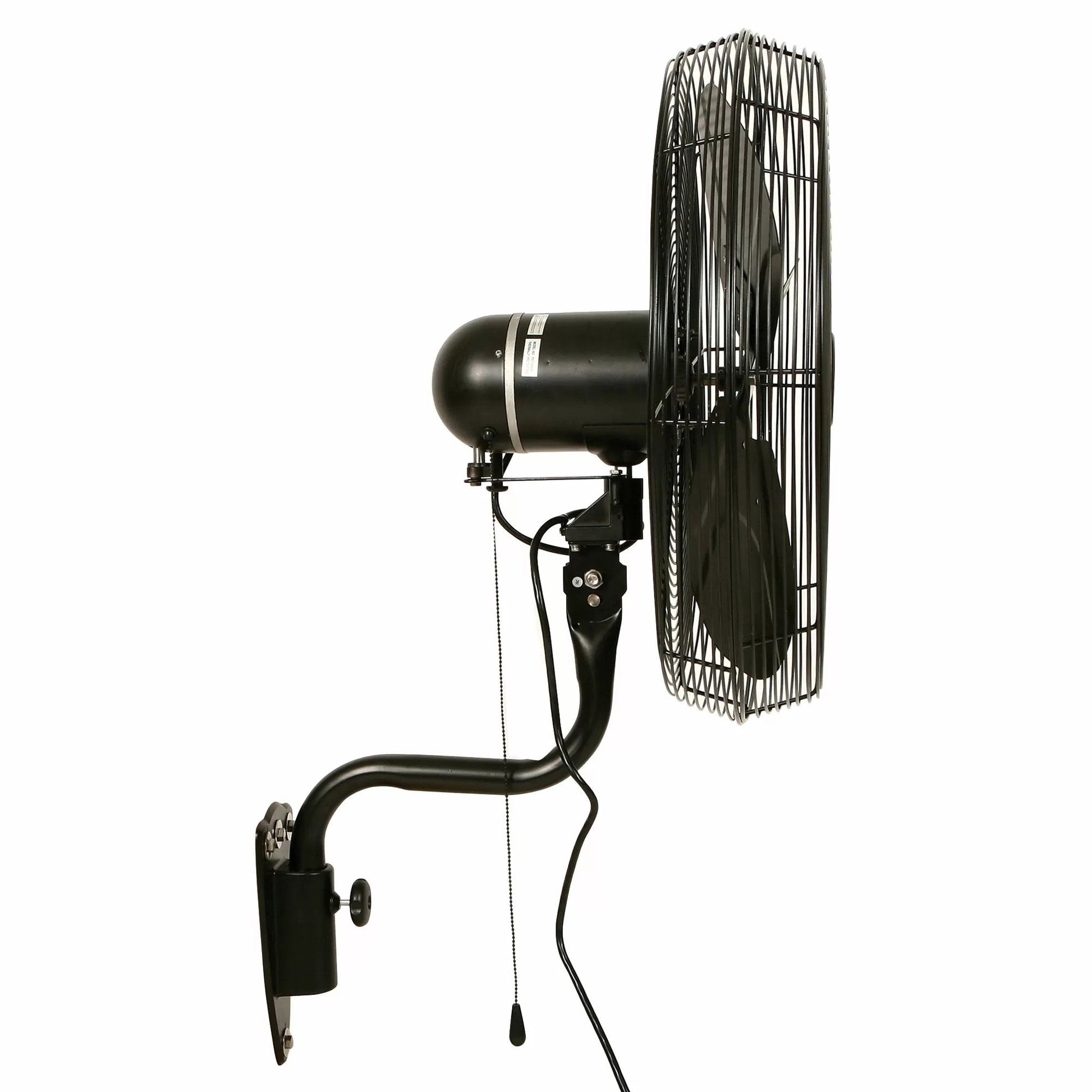

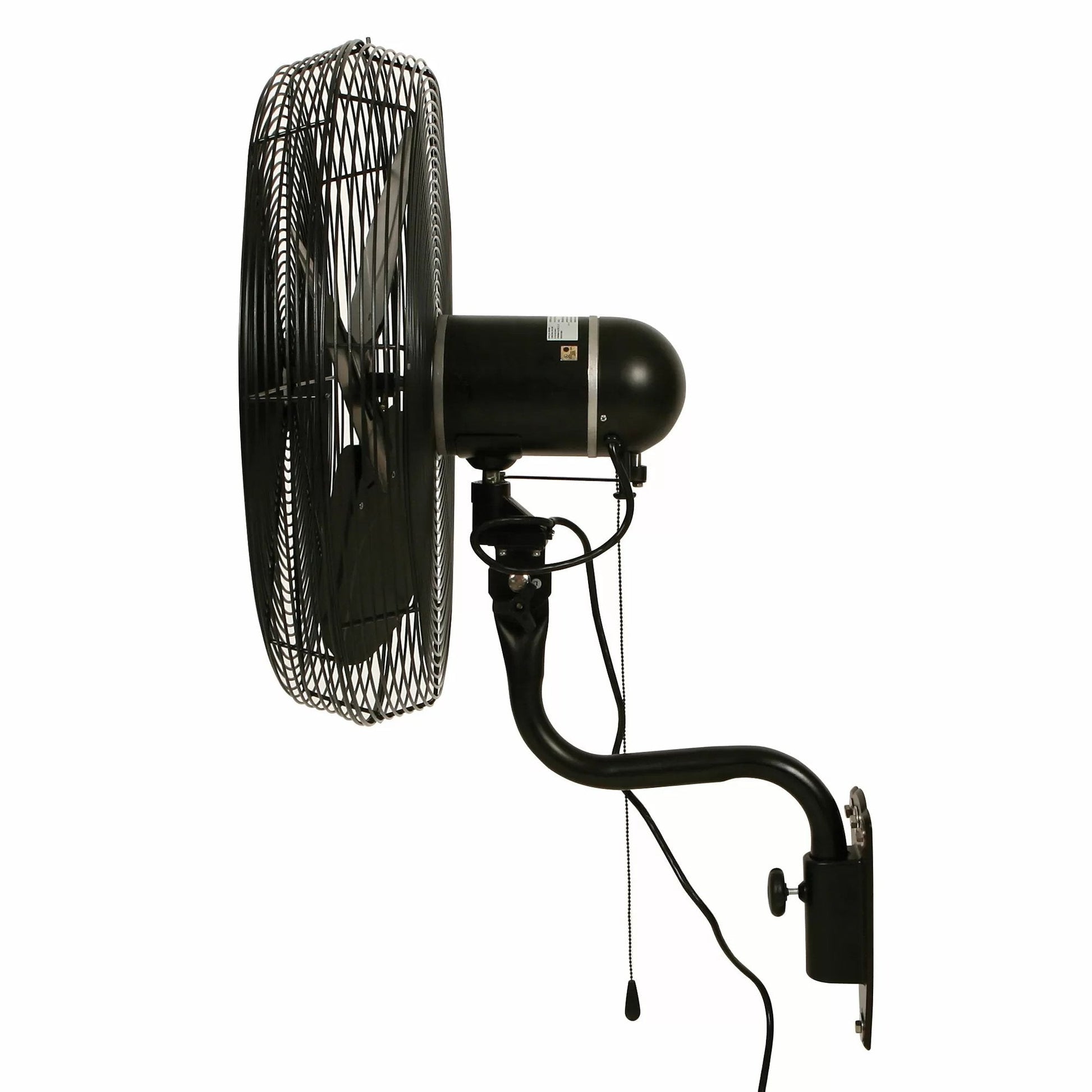

DURAFAN® Indoor/Outdoor Oscillating Wall Mount Fan - 24" Black

QC Part #10467 | MFR # OSCQ-24 MB
$239 99
$239 99
Sale Sold out
Ships within 2 Business Days

View full details
!
NOTE:
This item can not ship via USPS.
Description
Reviews
Q&A
Documents

More about DURAFAN® Indoor/Outdoor Oscillating Wall Mount Fan - 24" Black

Ideal for livestock buildings, poultry houses, wash bays, greenhouses, home patios, and more, QC Supply's black DURAFAN 24" Indoor/Outdoor Oscillating Wall Mount  Fan circulates large volumes of air in outdoor and indoor areas where space is limited. Designed for use in high-moisture environments, the fan includes a sealed motor. Fans arrive with a wall mount bracket kit; additional brackets are available.

Features/Advantages

  • Composed of high-grade steel
  • Factory-balanced, powder-coated aluminum blades
  • Fan tilts up to 20° in a fixed position
  • Oscillates 85°-90°
  • Adjustable wall-mount bracket pivots up to 140°
  • Powder-coated finish for corrosion resistance
  • Available in black or white
  • UL507 tested and rated for use with misting and fogging rings for indoor or outdoor use
  • 3-speed, completely sealed & permanently lubricated ball bearings with thermal overload protection & pull chain
  • OSHA approved grill
  • 9' cord standard on all sizes
  • Some assembly is required on the 24"
  • 1-year manufacturer warranty
  • Wall bracket included, additional brackets sold separately

Uses

  • Outdoor Loading Docks
  • Residential
  • Livestock Buildings
  • Poultry Houses
  • Amusement Parks
  • High Moisture Environments
  • Warehouses
  • Wash Bays
  • Sporting Events
  • Greenhouses
  • Patios
  • Garages
  • Grow Operations

Dimensions



  10433/10467
  24"
A 38"
B 22"
C 15 1/2"

A - Overall height w/bracket
B - Depth from front of fan to wall mount
C - Depth from front of fan to back of motor

QC Part # Type Color Size HP Speed Volts Amps RPM CFM Weight
10433 Oscillating White 24" 1/4 3 120 2.36/1.81/1.60 1,110/918/740 9,158/6,604/5,686 45 lbs
10467 Oscillating Black 24" 1/4 3 120 2.36/1.81/1.60 1,110/918/740 9,158/6,604/5,686 45 lbs

Also Available: DURAFAN 24" Indoor/Outdoor Non-Oscillating Wall Mount White Fan, QC Part #10433.

Need to Easily Move Your Fan? Purchase Additional Wall Mount Brackets: DURAFAN Wall Mount Black Bracket, QC Part #10460, sold separately.
