DURAFAN® Select Speed Shutter Fan - 16"

25 total reviews

SKU: QC Part #10405 | MFR # SF16C3
Regular price $229 99
Sale price $229 99 Regular price
Sale Sold out
Ships within 2 Business Days

View full details
Description
Reviews
Q&A
Documents

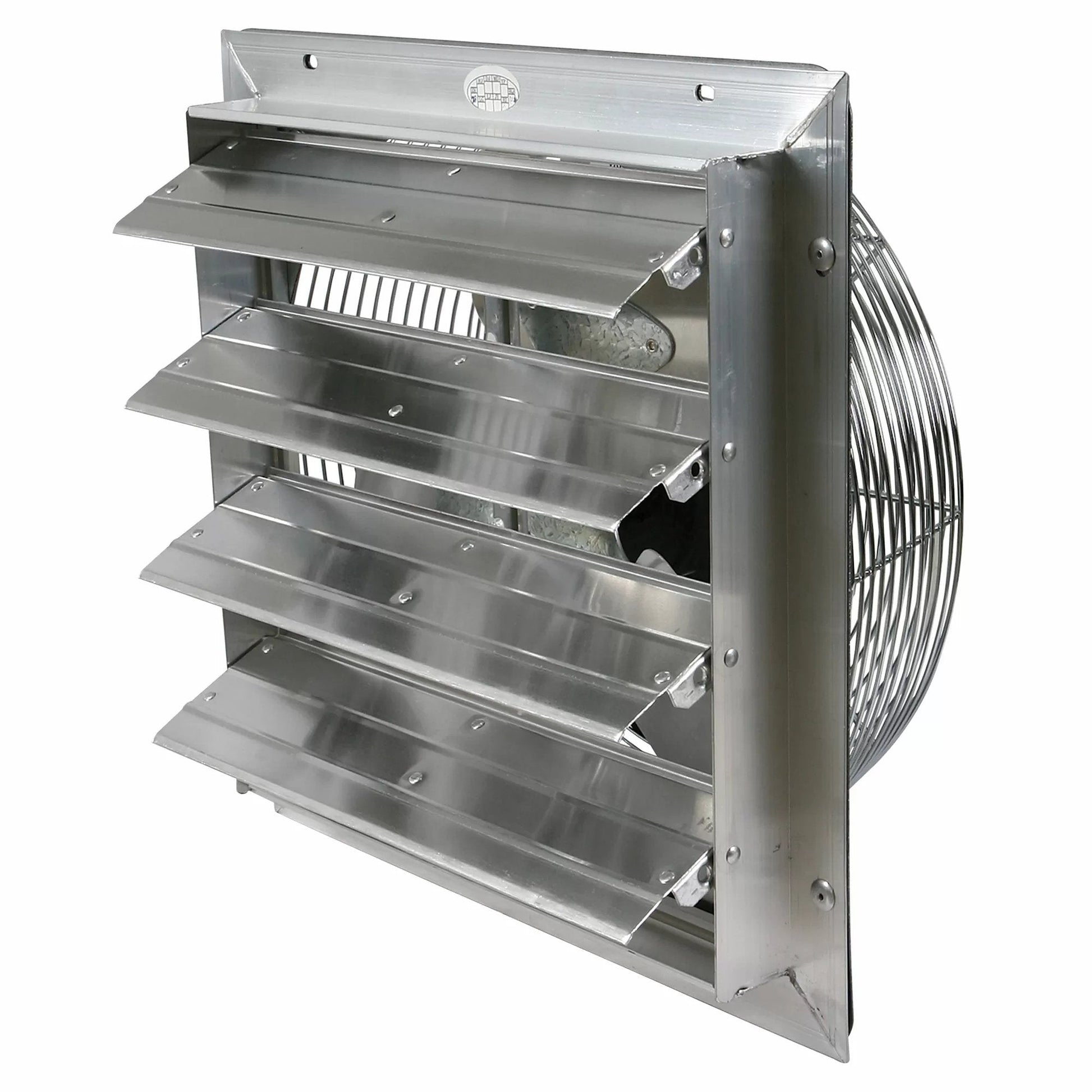

More about DURAFAN® Select Speed Shutter Fan - 16"

Ideal for greenhouses, livestock, swine, and dairy barns, QC Supply’s DURAFAN 16" Select Speed Shutter Fan removes and controls condensation, excess heat and obnoxious fumes. Features a totally enclosed motor with built-in speed switches and a 9' cord.

Includes a balanced aluminum blade, protected by a durable chrome-plated OSHA grill on the intake side. Its corrosion-resistant aluminum shutter comes complete with a tie bar to reduce shutter flapping and keep the shutters closed when the fan is not running. This fan is easy to install with no electrician required. Just mount the fan in the wall and plug it in.

Cannot be controlled with a variable-speed controller

Uses

  • Designed for livestock buildings, greenhouse, factories, warehouses, garages, attics & restaurants
  • Removes & controls unwanted condensation
  • Exhausts obnoxious fumes
  • Exhausts excessive heat
  • Improves inside air quality

Features & Benefits

  • Totally assembled
  • No electrician required when plugged into an approved electrical outlet
  • Built-in speed switch with attached 9' cord
  • Totally enclosed, maintenance-free motor
  • Corrosion-resistant aluminum shutter with tie bar to reduce shutter flapping & opening on windy days
  • Safety chrome grill on intake side meets OSHA standards
  • Fan must be mounted 7' above ground level on the exhaust side

Dimensions


QC Part #10404, 10405, 10406 & 10407
  12" 16" 20" 24"
A 15" 18 7/8" 22 7/8" 27"
B 2" 2" 2" 2"
C 1 1/2" 1 1/2" 1 1/2" 1 1/2"
D 9 1/8" 9 1/8" 9 3/4" 13 1/2"

A - Overall outside to outside
B - Depth of shutter
C - Width of flange
D - Depth from front of shutter to back of motor

QC Part # Size HP Speed Volts Amps RPM CFM Rough
Opening
Weight Ships Via
10404 12" 1/30 3 115 1.1 1,500/1,350/1,200 1,100/850/550 12.5" x 12.5" 16 lbs Ground
10405 16" 1/10 3 115 1.5 1,570/1,350/1,000 2,950/2,050/1,200 16.5" x 16.5" 20 lbs Ground
10406 20" 1/10 3 115 1.5 1,570/1,400/1,000 4,220/3,250/2,130 20.5" x 20.5" 27 lbs Ground
10407 24" 1/8 2 115 1.8 1,200/900 5,850/3,475 24.5" x 24.5" 33 lbs Ground
