DURAFAN® Select Speed Shutter Fan - 20"
More about DURAFAN® Select Speed Shutter Fan - 20"
Ideal for greenhouses, livestock, swine, and dairy barns, QC Supply’s DURAFAN 20" Select Speed Shutter Fan removes and controls condensation, excess heat, and obnoxious fumes. Features a totally enclosed motor with built-in speed switches and a 9' cord.

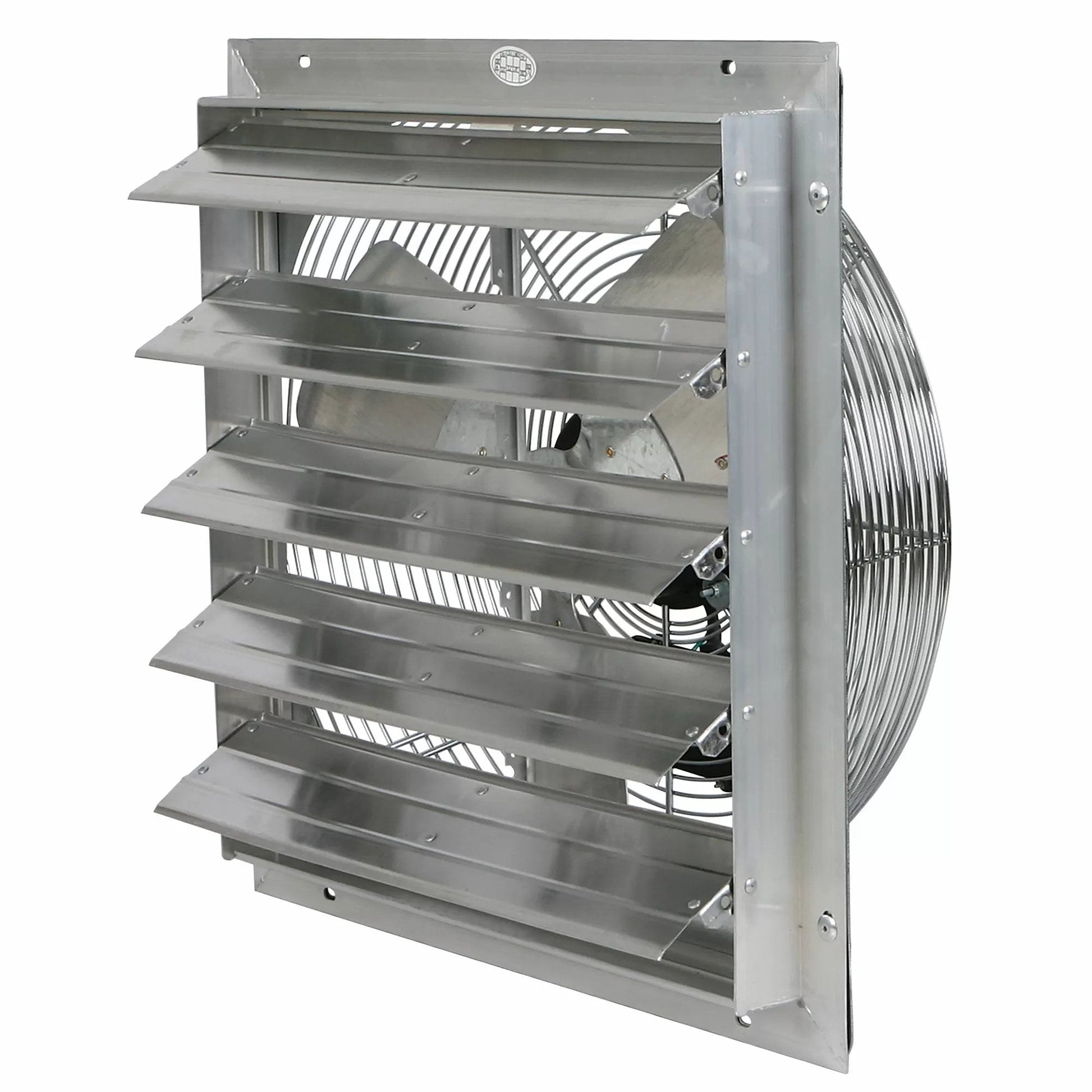

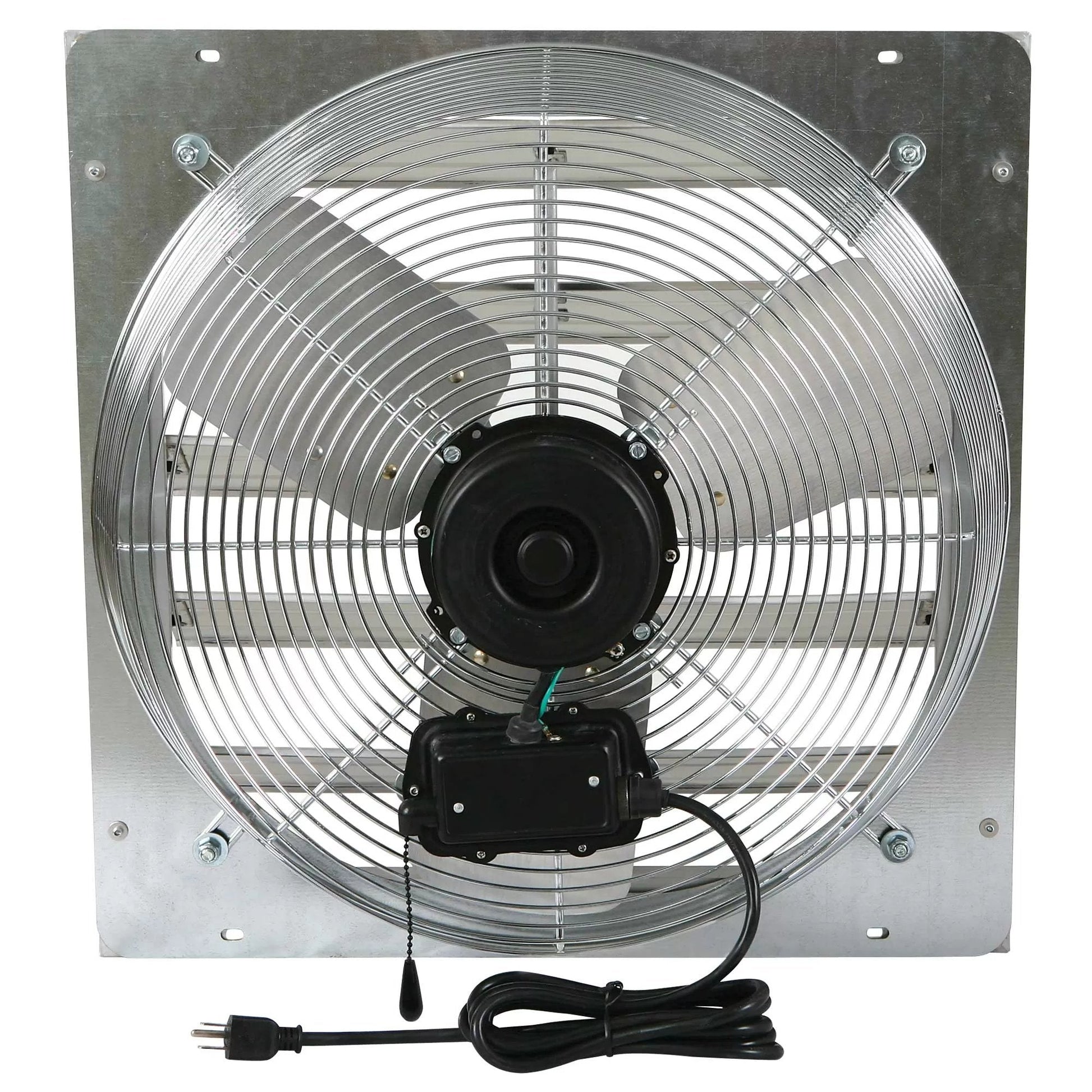

Includes a balanced aluminum blade, protected by a durable chrome-plated OSHA grill on the intake side. Its corrosion-resistant aluminum shutter comes complete with a tie bar to reduce shutter flapping and keep the shutters closed when the fan is not running. This fan is easy to install with no electrician required. Just mount the fan in the wall and plug it in.
Cannot be controlled with a variable-speed controller
Uses
- Designed for livestock buildings, greenhouses, factories, warehouses, garages, attics & restaurants
- Removes & controls unwanted condensation
- Exhausts obnoxious fumes
- Exhausts excessive heat
- Improves inside air quality
Features & Benefits
- Totally assembled
- No electrician required when plugged into an approved electrical outlet
- Built-in speed switch with attached 9' cord
- Totally enclosed, maintenance-free motor
- Corrosion-resistant aluminum shutter with tie bar to reduce shutter flapping & opening on windy days
- Safety chrome grill on intake side meets OSHA standards
- Fan must be mounted 7' above ground level on the exhaust side
Dimensions
| QC Part #10404, 10405, 10406 & 10407 | ||||||
|---|---|---|---|---|---|---|
| 12" | 16" | 20" | 24" | |||
| A | 15" | 18 7/8" | 22 7/8" | 27" | ||
| B | 2" | 2" | 2" | 2" | ||
| C | 1 1/2" | 1 1/2" | 1 1/2" | 1 1/2" | ||
| D | 9 1/8" | 9 1/8" | 9 3/4" | 13 1/2" | ||
A - Overall outside to outside
B - Depth of shutter
C - Width of flange
D - Depth from front of shutter to back of motor
| QC Part # | Size | HP | Speed | Volts | Amps | RPM | CFM | Rough Opening |
Weight | Ships Via |
|---|---|---|---|---|---|---|---|---|---|---|
| 10404 | 12" | 1/30 | 3 | 115 | 1.1 | 1,500/1,350/1,200 | 1,100/850/550 | 12.5" x 12.5" | 16 lbs | Ground |
| 10405 | 16" | 1/10 | 3 | 115 | 1.5 | 1,570/1,350/1,000 | 2,950/2,050/1,200 | 16.5" x 16.5" | 20 lbs | Ground |
| 10406 | 20" | 1/10 | 3 | 115 | 1.5 | 1,570/1,400/1,000 | 4,220/3,250/2,130 | 20.5" x 20.5" | 27 lbs | Ground |
| 10407 | 24" | 1/8 | 2 | 115 | 1.8 | 1,200/900 | 5,850/3,475 | 24.5" x 24.5" | 33 lbs | Ground |
