More about Dutton-Lainson® 1,400 lb. Load Capacity Standard Winch

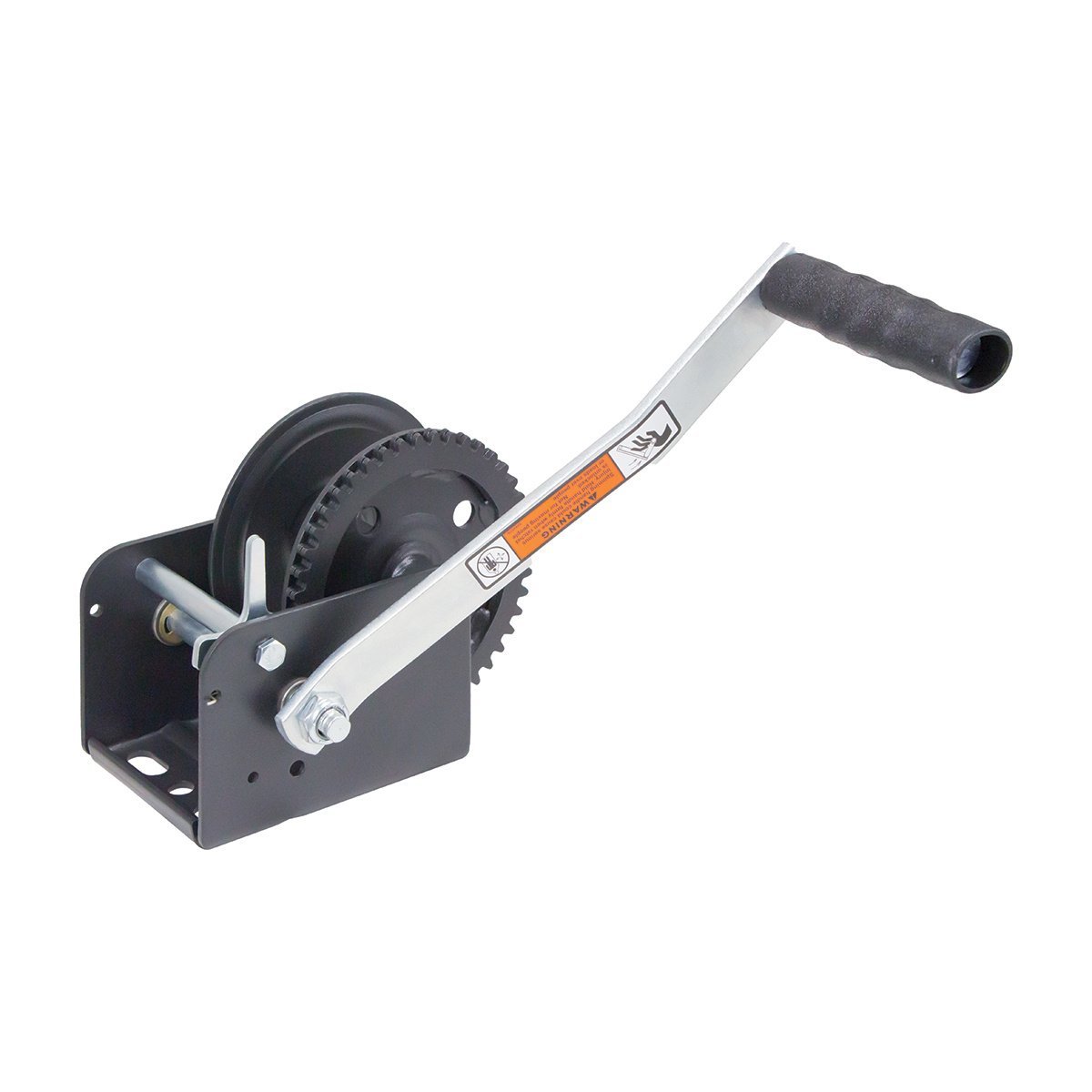

This Dutton-Lainson hand ratchet winch is designed for horizontal pulling applications and has a 1,400 lb. capacity. It features a freewheel operation for easy line removal. The hardware has a powder-coated, zinc-plated TUFFPLATE® finish. A 9-1/2" handle with an ergonomic handle grip is included. The reversible ratchet allows the cranking of cable or straps onto the winch drum in either direction. Color may vary. Made in the USA.
Features
- Arc-welded gears and copper-brazed drive gears for durability
- Rigid, welded reel construction for added strength
- Load-matched gear ratios for easier cranking
- All drive shafts have permanently lubricated bearings
- The color of what is sent may differ from the photo due to a manufacturer change. You will either receive bronze or black.
- 9-1/2" Handle included
- Laminated, high-carbon steel gears for longer life
- Permanently lubricated bearings on drive shafts are maintenance-free
- Heavy-duty steel handles with ergonomic molded grips
- Drive shaft gears are copper brazed for durability
- Rigid, welded reel construction for added strength
- Load-matched gear ratios for easier cranking
- All plated parts are zinc-plated TUFFPLATE® finish
- Slotted mounting holes for easy installation
- Heavy gauge embossed and reinforced steel bases for extra strength
- Winches freewheel when the ratchet pawl is disengaged
| QC Part # | Load Capacity |
Hub Diameter |
Gear Ratio |
Handle | Ratchet Type |
Reel Capacity |
|---|---|---|---|---|---|---|
| 91120 | 600 lbs. | 5/8" | 3.2:1 | 7" | One Way | 5/32" x 61' |
| 91121 | 900 lbs. | 5/8" | 3.2:1 | 7" | One Way | 3/16" x 40' |
| 91122 | 1,100 lbs. | 7/8" | 3.7:1 | 7" | One Way | 3/16" x 81' |
| 91123 | 1,300 lbs. | 7/8" | 4.4:1 | 7" | One Way | 7/32" x 57' |
| 91124 | 1,400 lbs. | 7/8" | 4.4:1 | 7 1/2" | Two Way | 1/4" x 41' |
| 91125 | 1,800 lbs. | 1 1/8" | 5.4:1 | 9 1/2" | Two Way | 9/32" x 61' |
| 91126 | 2,000 lbs. | 1 1/8" | 12.4:1/5.4:1 | 9 1/2" | Two Speed | 9/32" x 61' |
| 91127 | 2,500 lbs. | 1/o 1/8" | 17.3:1/5.4:1 | 9 1/2" | Two Speed | 5/16" x 49' |
