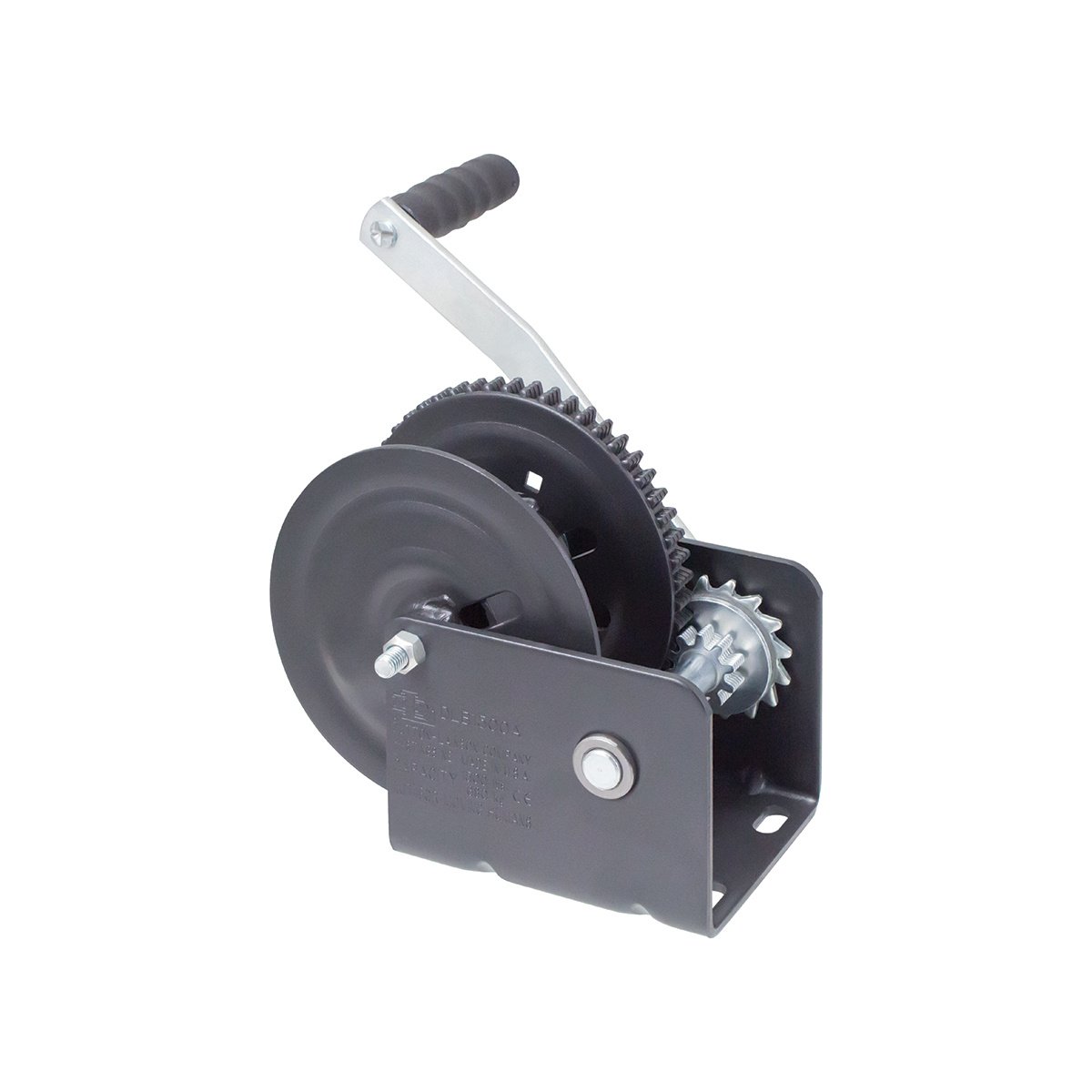

Dutton Lainson® Brake Winch - 1,500 lb. Load Capacity

QC Part #91143 | MFR # 14962
$102 99
$102 99
Sale Sold out
Ships within 2 Business Days

View full details
Description
Reviews
Q&A
Documents

More about Dutton Lainson® Brake Winch - 1,500 lb. Load Capacity

Equipped to raise and lower heavy loads, this Dutton Lainson Brake Winch has a 1,500 lb. Load Capacity. This brake winch comes in handy for lifting and lowering waterers, heat lamps, livestock curtains, loading chutes, grain augers, doors and boats up to 1,500 lbs. Its rugged steel construction allows you to safely raise and lower loads with minimal effort. Its automatic brake holds your load in place even when the handle is released. Color may vary

Features/Benefits:

  • 1,500 lb. capacity
  • Powder-coated bronze finish
  • 75 lb. minimum load required for winch to operate properly
  • Built-in fully automatic friction brake holds load exactly in position when raising and lowering
  • Powder-coated, zinc-plated TUFFPLATE® finish on hardware
  • Made in the USA
  • Manufacturer's limited five-year warranty
QC Part # Load
Capacity		 Min.
Load		 Hub
Dia.		 Gear
Ratio		 Handle
Length		 Reel
Capacity		 Wt.
lbs.
91140 350 lbs. 50 1 3.2:1 7" 5/32" x 58' 7
91141 800 lbs. 50 1 7/8 4.4:1 7" 3/16" x 68' 8
91142 1,200 lbs. 50 2 1/2 5.4:1 7" 7/32" x 73' 10
91109 1,200 lbs. 75 2 1/2 4:1 12-1/4" 7/32" x 57' 10
91143 1,500 lbs. 75 2 1/2 5.4:1 9 3/8" 1/4" x 63' 12
91144 2,000 lbs. 175 2 1/2 17.3:1 9 3/8" 9/32" x 44' 16
Filter by rating

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Bill
Satisfied and Happy

Purchased this winch to replace one on a crank up antenna tower which finally got so rusty after 40 years that I became concerned about its safety. The new winch was the same as the one it replaced, so it was easy to put back in the same holes. the powder coat gives it a nice finish and it seems to be durable. The handle attached easily , although it was difficult getting the cable to attach -- It was not a problem with the winch, but rather, with my clumsiness. Once in place, it performed flawlessly. The brake held the weight of the tower as I cranked it up and moved smoothly and easily.
Shipping was quick and the price was among the lowest found. All in all, a very satisfied customer with this product.
