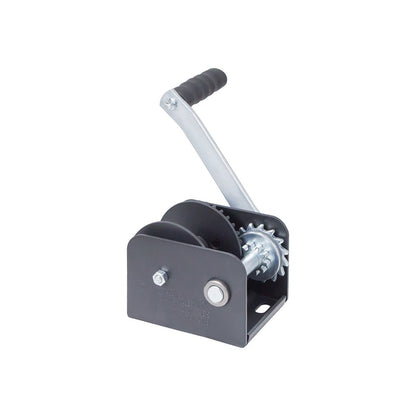

Dutton Lainson® Brake Winch - 350 lb. Load Capacity
SKU:
QC Part #91140 | MFR # 15941
Regular price
$60
99
Sale price
$60
99
Regular price
Unit price
per
Ships within 2 Business Days
Description
Reviews
Q&A
Documents
More about Dutton Lainson® Brake Winch - 350 lb. Load Capacity
This Dutton-Lainson brake winch was designed for horizontal pulling and vertical lifting and has a 350 lbs capacity. The built in fully automatic friction brake holds load exactly in position when raising and lowering. The hardware has a powder-coated, zinc plated TUFFPLATE® finish. A 7" handle with ergonomic handle grip is included. Color may vary. Made in the U.S.A. This winch requires a 50 lb. minimum operating load to function properly.
Features/Benefits
- 350 lb. capacity
- 50 lb. minimum load required for winch to operate properly
- Laminated, high-carbon steel gears for longer life
- All gears in models DLB800A through B3503 are heat treated for increased strength
- Permanently lubricated bearings on drive shafts are maintenance-free
- Heavy-duty steel handles with ergonomic molded grips
- Drive shaft gears are copper brazed for durability
- Rigid, welded reel construction for added strength
- Load matched gear ratios for easier cranking
- All plated parts are zinc-plated TUFFPLATE® finish
- Slotted mounting holes for easy installation
- Heavy gauge embossed and reinforced steel bases for extra strength
- Meets ASAE Safety Standard S361.3
- Made in the USA
- Manufacturer's limited five year warranty
| QC Part # | Load Capacity |
Min. Load |
Hub Dia. |
Gear Ratio |
Handle Length |
Reel Capacity |
Wt. lbs. |
|---|---|---|---|---|---|---|---|
| 91140 | 350 lbs. | 50 | 1 | 3.2:1 | 7" | 5/32" x 58' | 7 |
| 91141 | 800 lbs. | 50 | 1 7/8 | 4.4:1 | 7" | 3/16" x 68' | 8 |
| 91142 | 1,200 lbs. | 50 | 2 1/2 | 5.4:1 | 7" | 7/32" x 73' | 10 |
| 91109 | 1,200 lbs. | 75 | 2 1/2 | 4:1 | 12-1/4" | 7/32" x 57' | 10 |
| 91143 | 1,500 lbs. | 75 | 2 1/2 | 5.4:1 | 9 3/8" | 1/4" x 63' | 12 |
| 91144 | 2,000 lbs. | 175 | 2 1/2 | 17.3:1 | 9 3/8" | 9/32" x 44' | 16 |
