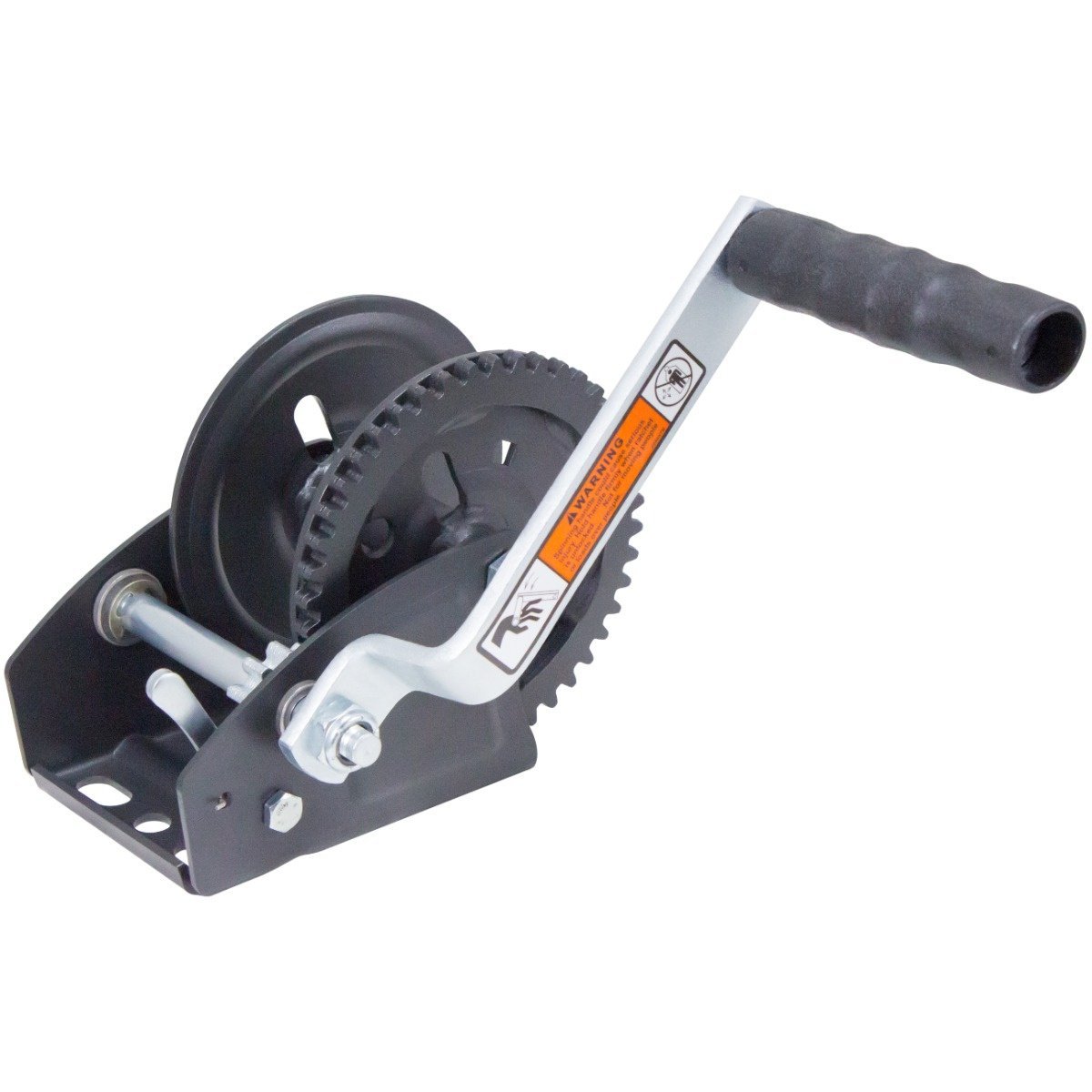

Dutton Lainson® Standard Winch - 1,100 lb. Load Capacity
SKU:
QC Part #91122 | MFR # 15102
Regular price
$33
99
Sale price
$33
99
Regular price
Unit price
per
Ships within 2 Business Days
Description
Reviews
Q&A
Documents
More about Dutton Lainson® Standard Winch - 1,100 lb. Load Capacity
The Dutton-Lainson hand ratchet winch is designed for horizontal pulling applications and has a 1,100 lb. capacity. It features a freewheel operation for easy line removal. The hardware has a powder-coated, zinc-plated TUFFPLATE® finish. A 7" handle with an ergonomic handle grip is included. Color may vary. Made in the U.S.A.
Features/Benefits:
- Ideal for many commercial and agricultural applications
- Arc-welded gears and copper brazed drive gears for durability
- Rigid, welded reel construction for added strength
- Load matched gear ratios for easier cranking
- All drive shafts have permanently lubricated bearings
- Heavy-duty steel handles with molded plastic grips
- The color of what is sent may differ from the photo due to a manufacturer change. You will either receive bronze as pictured or black.
| QC Part # | Load Capacity |
Hub Diameter |
Gear Ratio |
Handle | Ratchet Type |
Reel Capacity |
|---|---|---|---|---|---|---|
| 91120 | 600 lbs. | 5/8" | 3.2:1 | 7" | One Way | 5/32" x 61' |
| 91121 | 900 lbs. | 5/8" | 3.2:1 | 7" | One Way | 3/16" x 40' |
| 91122 | 1,100 lbs. | 7/8" | 3.7:1 | 7" | One Way | 3/16" x 81' |
| 91123 | 1,300 lbs. | 7/8" | 4.4:1 | 7" | One Way | 7/32" x 57' |
| 91124 | 1,400 lbs. | 7/8" | 4.4:1 | 7 1/2" | Two Way | 1/4" x 41' |
| 91125 | 1,800 lbs. | 1 1/8" | 5.4:1 | 9 1/2" | Two Way | 9/32" x 61' |
| 91126 | 2,000 lbs. | 1 1/8" | 12.4:1/5.4:1 | 9 1/2" | Two Speed | 9/32" x 61' |
| 91127 | 2,500 lbs. | 1/o 1/8" | 17.3:1/5.4:1 | 9 1/2" | Two Speed | 5/16" x 49' |
