Dutton Lainson® Standard Winch - 2,000 lb. Load Capacity
SKU:
QC Part #91126 | MFR # 14700
Regular price
$94
99
Sale price
$94
99
Regular price
Unit price
per
Best suited for horizontal pulling applications that require the freewheeling feature of ratchet type winches.
Ships within 2 Business Days
Description
Reviews
Q&A
Documents
More about Dutton Lainson® Standard Winch - 2,000 lb. Load Capacity

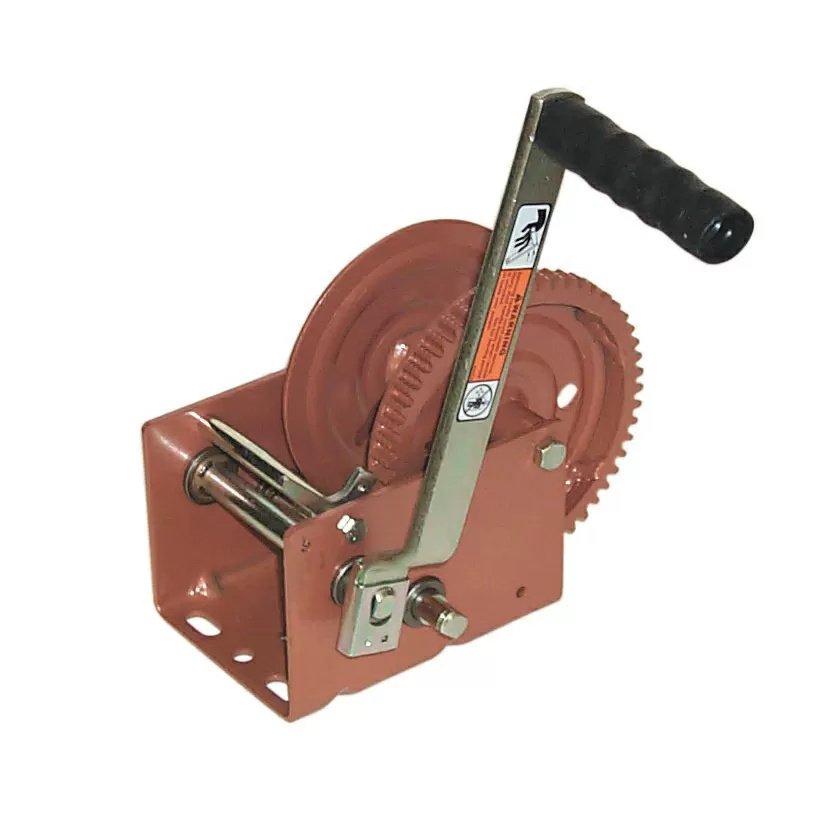

Equipped to pull heavy loads, this ratchet-type Dutton Lainson Standard Winch has a 2,000 lb. Load Capacity. This winch comes in handy for hauling and pulling waterers, heat lamps, livestock curtains, loading chutes and doors up to 2,000 lbs. Its rigid, welded reel construction allows you to handle loads with minimal effort. Features arc-welded gears and copper brazed drive gears for durability.
Features/Benefits:
- Ideal for many commercial and agricultural applications
- Arc-welded gears and copper brazed drive gears for durability
- Rigid, welded reel construction for added strength
- Load matched gear ratios for easier cranking
- All drive shafts have permanently lubricated bearings
- Heavy-duty steel handles with molded plastic grips
- Quick-attach handle allows easy change from high speed to low gear, for heavier loads
- Copper bronze finish, zinc TUFFPLATE hardware
| QC Part # | Load Capacity |
Hub Diameter |
Gear Ratio |
Handle | Ratchet Type |
Reel Capacity |
|---|---|---|---|---|---|---|
| 91120 | 600 lbs. | 5/8" | 3.2:1 | 7" | One Way | 5/32" x 61' |
| 91121 | 900 lbs. | 5/8" | 3.2:1 | 7" | One Way | 3/16" x 40' |
| 91122 | 1,100 lbs. | 7/8" | 3.7:1 | 7" | One Way | 3/16" x 81' |
| 91123 | 1,300 lbs. | 7/8" | 4.4:1 | 7" | One Way | 7/32" x 57' |
| 91124 | 1,400 lbs. | 7/8" | 4.4:1 | 7 1/2" | Two Way | 1/4" x 41' |
| 91125 | 1,800 lbs. | 1 1/8" | 5.4:1 | 9 1/2" | Two Way | 9/32" x 61' |
| 91126 | 2,000 lbs. | 1 1/8" | 12.4:1/5.4:1 | 9 1/2" | Two Speed | 9/32" x 61' |
| 91127 | 2,500 lbs. | 1/o 1/8" | 17.3:1/5.4:1 | 9 1/2" | Two Speed | 5/16" x 49' |
