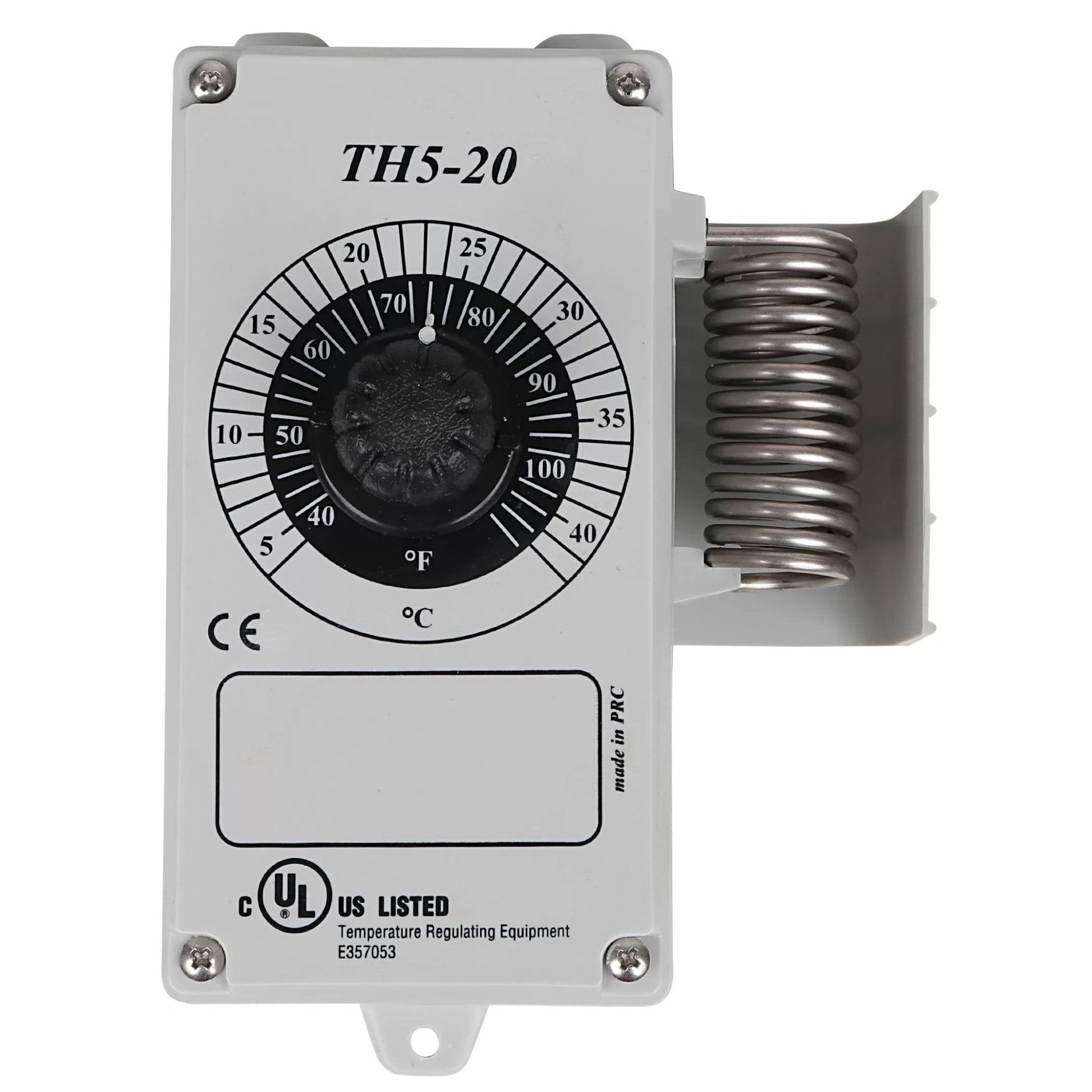

Eventherm TH5-20 Thermostat

QC Part #10032 | MFR # TH-5-20
$30 99
$30 99
Sale Sold out
Ships within 2 Business Days

View full details
Description
Reviews
Q&A
Documents

More about Eventherm TH5-20 Thermostat

The Eventherm Agricultural Thermostat is used for precise control of heating, ventilation and cooling systems. Each one is built with a stainless steel sensing coil mounted to a weather-proof ABS plastic enclosure. The adjustable knob pointer disc allows the thermostat to be recalibrated.

This thermostat is resistant to moisture and gases found in corrosive agricultural buildings. Great for livestock confinement buildings, greenhouses, warehouses and industrial buildings

Features

  • IP66 enclosure offers the highest protection against particles & a high level of protection against water
  • Stainless steel sensing coil
  • Accurate
  • ABS plastic weather-proof enclosure
  • 2 conduit or cable gland openings maximum
  • Gasket for lid & sealed spiral entries
  • Single pole, double throw switch
  • Screw terminals
  • Knob can be temperature scale calibrated and is unlocked with a small Phillips screwdriver

Specifications:

  • 40° F to 105° F temp range
  • 110/240V AC, 50/60 Hz. Full load. 16 A (resistive)
  • Differential: 2, 4° F
  • Model #: TH-5-20
  • Dimensions: 6 1/2" H (with ears) x 3" D (with knob) x 4 1/2" W (with coil)
  • Weight: 1 lb
Filter by rating

Customer Reviews

Based on 22 reviews
86%
(19)
9%
(2)
5%
(1)
0%
(0)
0%
(0)
R
Randy
Well Built

The unit is well built and I only have 1 issue with it. In my application I needed the thermostat to hold the temp at 94 degrees, or close to that. The specs said it had a range of 40 - 105 degrees. The thermostat would only go to 86 degrees.

L
Luis
Durable and well functioning. Will buy it again

I used it to repair a car wash heater, it worked very well even in extreme conditions.

g
grtroes
good product

have bought several. reliable. well built. would get five stars if it did things above and beyond what is expected of a thermostat. i will buy more of these as needed in the future.

M
Michelle
Thumbs Up

Product is good quality at a good price. We have purchased several, no complaints!

L
Lee
I'm likeing it.

It is doing a good job!
