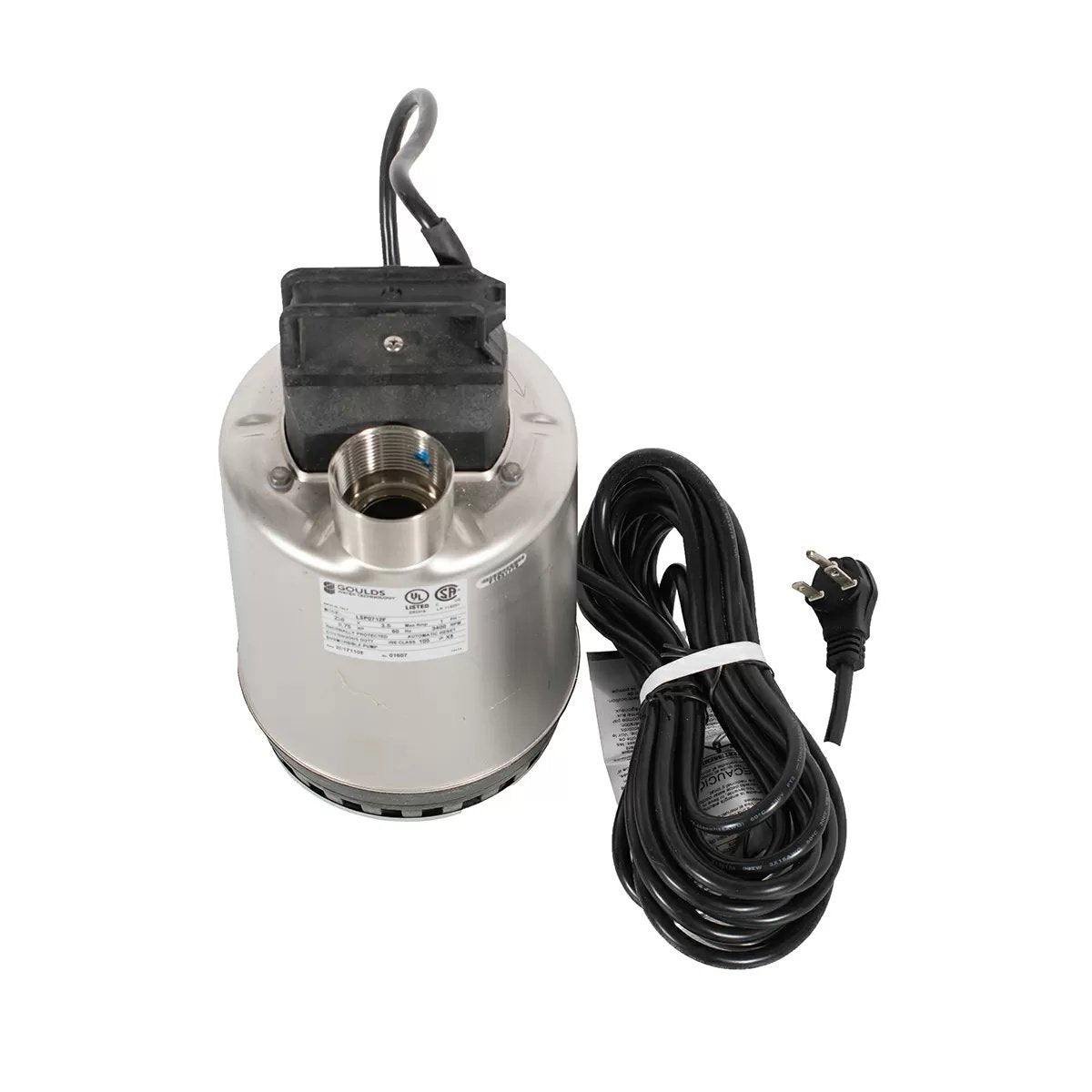

The LSP0711F Submersible Sump is lightweight, portable and easy to service. It works great to get water out of your basement, dewatering and water transfer applications. It features corrosion-resistant construction, stainless steel motor casing and fasteners and a glass-filled thermoplastic impeller and casing.

Features

• A double labyrinth lip seal system protects the motor. It consists of 3 lip seals and a V-ring in addition to an impeller counterblade system to keep solid particles away from the seal unit
• Corrosion-resistant construction
• Stainless steel motor casing and fasteners
• Glass-filled thermoplastic impeller and casing
• Upper and lower heavy duty ball bearing construction
• Motor is permanently lubricated for extended service life and is powered for continuous operation. All ratings are within the working limits of the motor
• Hard coated 400 series stainless steel shaft for improved corrosion resistance
• Float switch is adjustable for various liquid levels on automatic versions. Easily removed for direct pump operation or switch replacement
• Complete unit is lightweight, portable and easy to service

Specifications

• 10 minimum circuit breaker
• Float Switch Style: Plug/no switch
• 20' cord length - 16/3 SJTW with 3-prong grounding plug
• 1 1/2" discharge connection
• Min. On & Off Level: Manual
• Minimum Basin Diameter: 9"
• Discharge Size: 1 1/2" NPT
• Capacities: to 57 GPM
• Maximum Head: 34' TDH
• Maximum Solids: 3/8" spherical
• Temperature: 104° F maximum liquid temperature
• Maximum Pump Submergence: 16'
• 11 lbs

• 1 phase, 3,450 RPM
• 3/4 HP, 115 V, 7.1 amps
• Built-in thermal overload protection with automatic reset
• Permanent-split-capacitor type
• Class B insulation
• Stainless steel shaft
• Air filled design
