Hudson Valve - Gravity/Pressurized Flow - 1"
More about Hudson Valve - Gravity/Pressurized Flow - 1"

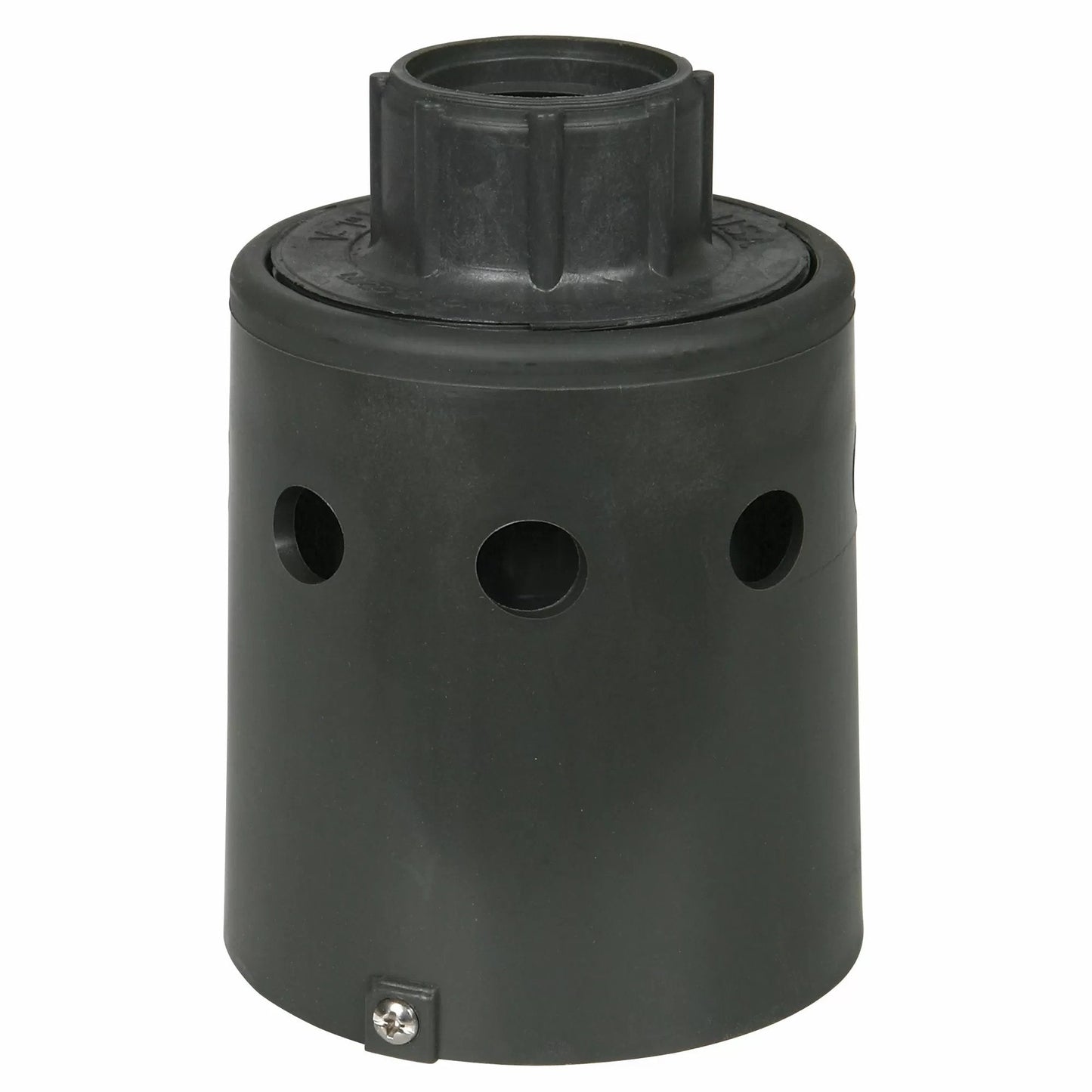

This 1" Universal Hudson Valve was designed to be more versatile and longer lasting. It is made with materials to allow the valve to work in water temperatures up to 175° F.
The Hudson Valve maintains fluid levels in various applications, replacing ball float valves. The Hudson Valve's internal parts are made of ABS plastic, EPDM rubber & stainless steel. Fluid levels force a float to rise and close the diaphragm chamber as the diaphragm expands to stop the incoming flow. When the fluid level drops, the diaphragm escape is opened and allows the fluid to fill the tank. The Hudson Valve is resistant to freezing.

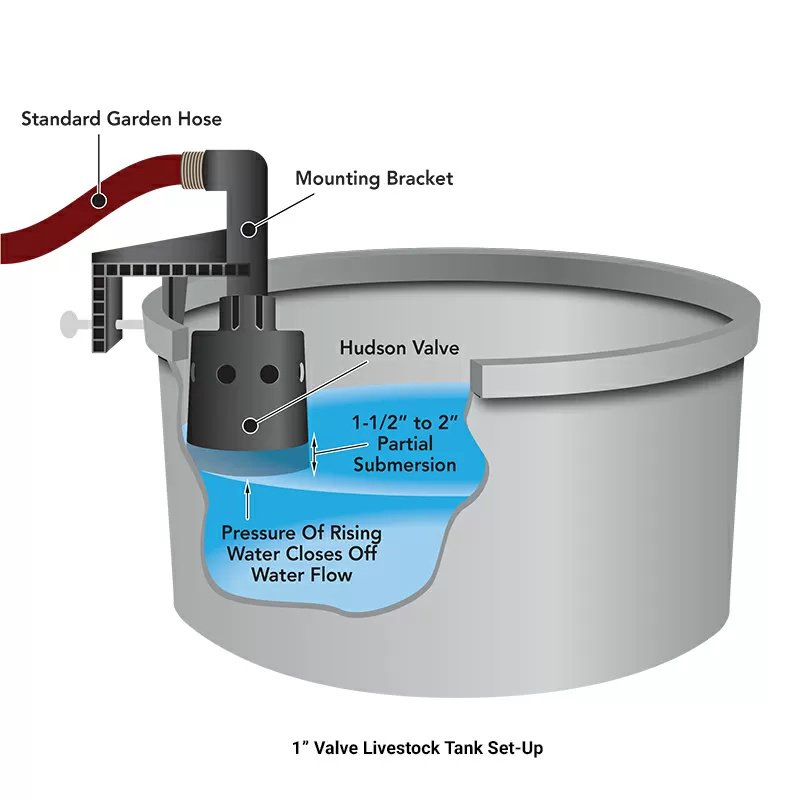

Easily mount your 1" valve to tanks and troughs with a Benson Bracket, QC Part #120032; it only works with the 1" valve. Repairs are made easy with the 1" Hudson Valve Repair Kit, QC Part #120019.
Benefits
- No exterior moving parts
- Installs in seconds
- Rust-proof
- Fills FAST
- Indestructible
- No float ball or lever arm
- Freezing won't damage it
- High volume
- Anti-siphon
Types of Applications: Aquariums, Car Washes, Evaporative Coolers, Fountains, Grounds Maintenance, Holding Tanks, Irrigation Systems, Landscaping, Livestock Tanks, Ponds, Swimming Pools, and many more.
| QC Part # | Female Thread | Height | Diameter | Operating Pressure | Max Fluid Temperature |
|---|---|---|---|---|---|
| 120459 | 1/4" | 2.75" | 2" | 4-80 PSI | 175° F |
| 120031 | 1/2" | 5" | 3" | 4-100 PSI | 175° F |
| 120016 | 1" | 5" | 3.75" | 4-100 PSI | 175° F |
