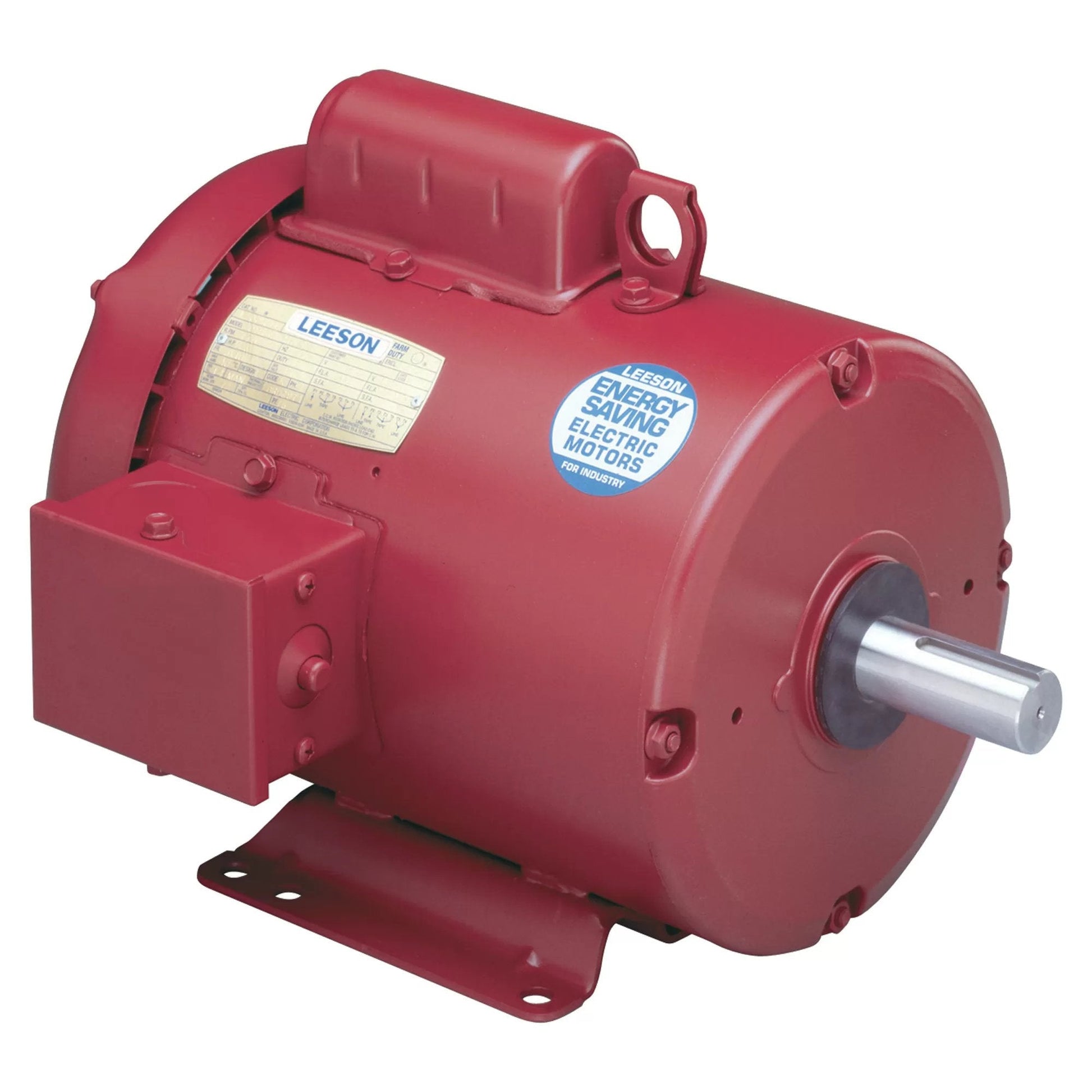

Leeson® 1 HP Farm Duty Hi-Torque Motor - Model 110088
SKU:
QC Part #190053 | MFR # 110088
Regular price
$428
99
Sale price
$428
99
Regular price
Unit price
per
Ships within 2 Business Days
Description
Reviews
Q&A
Documents
More about Leeson® 1 HP Farm Duty Hi-Torque Motor - Model 110088
Designed to withstand harsh environments on the farm, the Leeson Farm Duty Hi-Torque Motor, Model 110088 performs well in a wide variety of farm equipment including fans, feeders, conveyors, grain elevators and silo unloaders. This motor has double-sealed ball bearings prelubricated with Exxon POLYREX® EM Grease with an operating temperature range of -20° F to +350° F and a special formulation to provide extra bearing protection. Single Phase, 60 Hertz. 1 HP, 1725 RPM.
Additional Features/Advantages
- Gasketed Capacitor Housing & Conduit Boxes
- Copper Windings & Varnish
- Manual Overload Protection
- Totally Enclosed Fan Cooled
- Double Shielded Ball Bearings
- Rubber Boot Over Manual Reset for Weather Protection
- Capacitor Start
- Service Factor 1.15
- High Starting Torque
| QC Part # | Model # | HP | RPM | F.I. Amps 230 Volt |
Frame | Voltage | Shaft | Ships | Approx Weight |
|---|---|---|---|---|---|---|---|---|---|
| 190050 | 113256 | 1/3 | 1725 | 3.2 | 56 | 115/208-230 | 5/8 | UPS | 24 lbs |
| 190051 | 110086 | 1/2 | 1725 | 4.4 | 56 | 115/208-230 | 5/8 | UPS | 25 lbs |
| 190052 | 110087 | 3/4 | 1725 | 5.4 | 56 | 115/208-230 | 5/8 | UPS | 28 lbs |
| 190053 | 110088 | 1 | 1725 | 7 | 56 | 115/208-230 | 5/8 | UPS | 31 lbs |
| 190054 | 110089* | 1 1/2 | 1725 | 8.6 | 56H | 115/208-230 | 5/8 | UPS | 41 lbs |
| 190055 | 110090* | 2 | 1725 | 9.2 | 56HZ | 230 | 7/8 | UPS | 48 lbs |
| 190056 | 131541 | 2 | 1740 | 12.4 | 182T | 115/208-230 | 1 1/8 | UPS | 67 lbs |
| 190057 | 131542 | 3 | 1740 | 19 | 184T | 230 | 1 1/8 | Motor Freight** | 99 lbs |
| 190058 | 131543* | 5 | 1740 | 23 | 184T | 230 | 1 1/8 | Motor Freight** | 106 lbs |
| 190621 | 140414* | 10 | 1740 | 40 | 215T | 230 | 1 3/8 | Motor Freight** | 154 lbs |
| 260030 | Power Supply Cords | ||||||||
| *Capacity start/capacitor run design for reduced amperage, others are capacitor start/indication run. **For items shipping via motor freight, we'll contact you with shipping charges |
|||||||||
