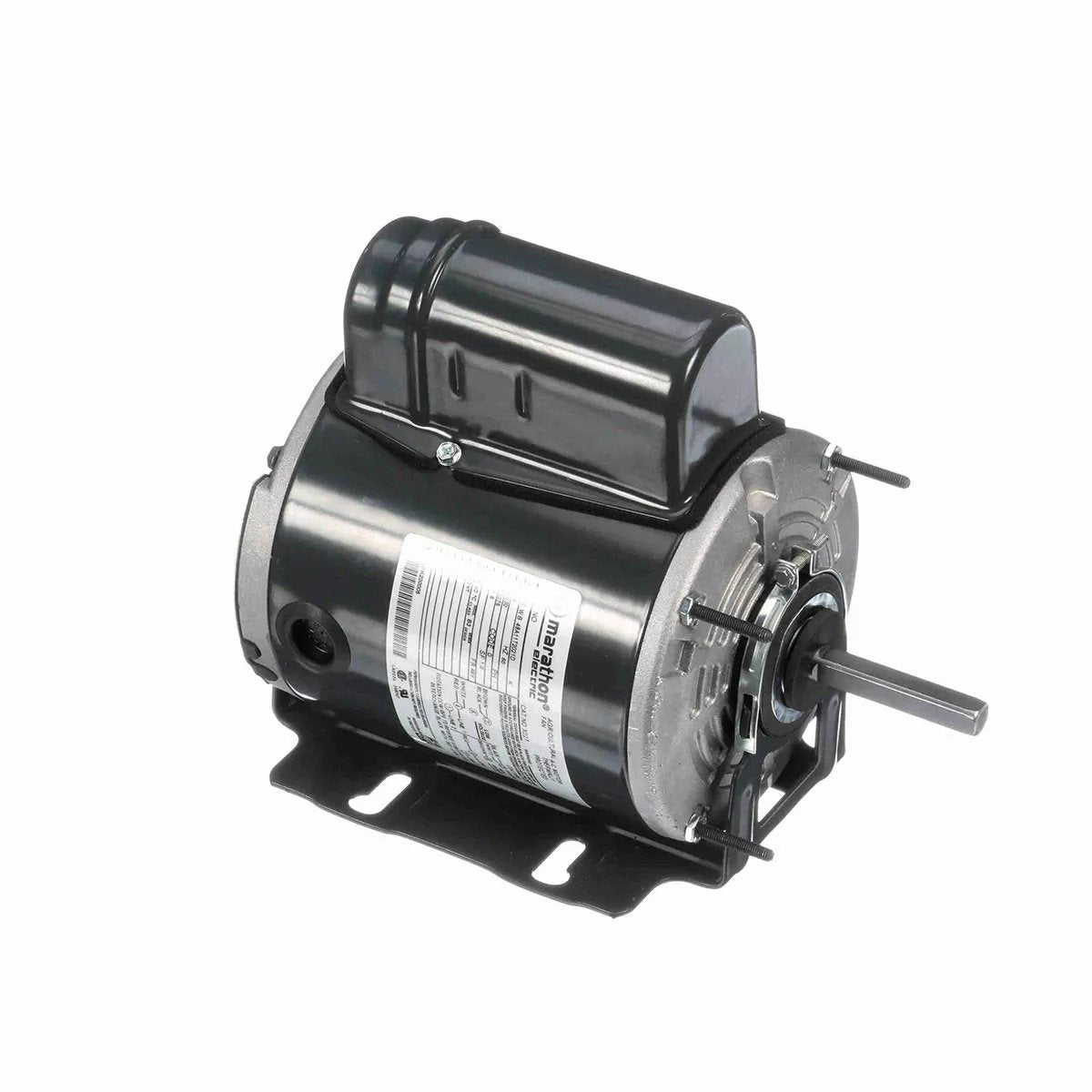

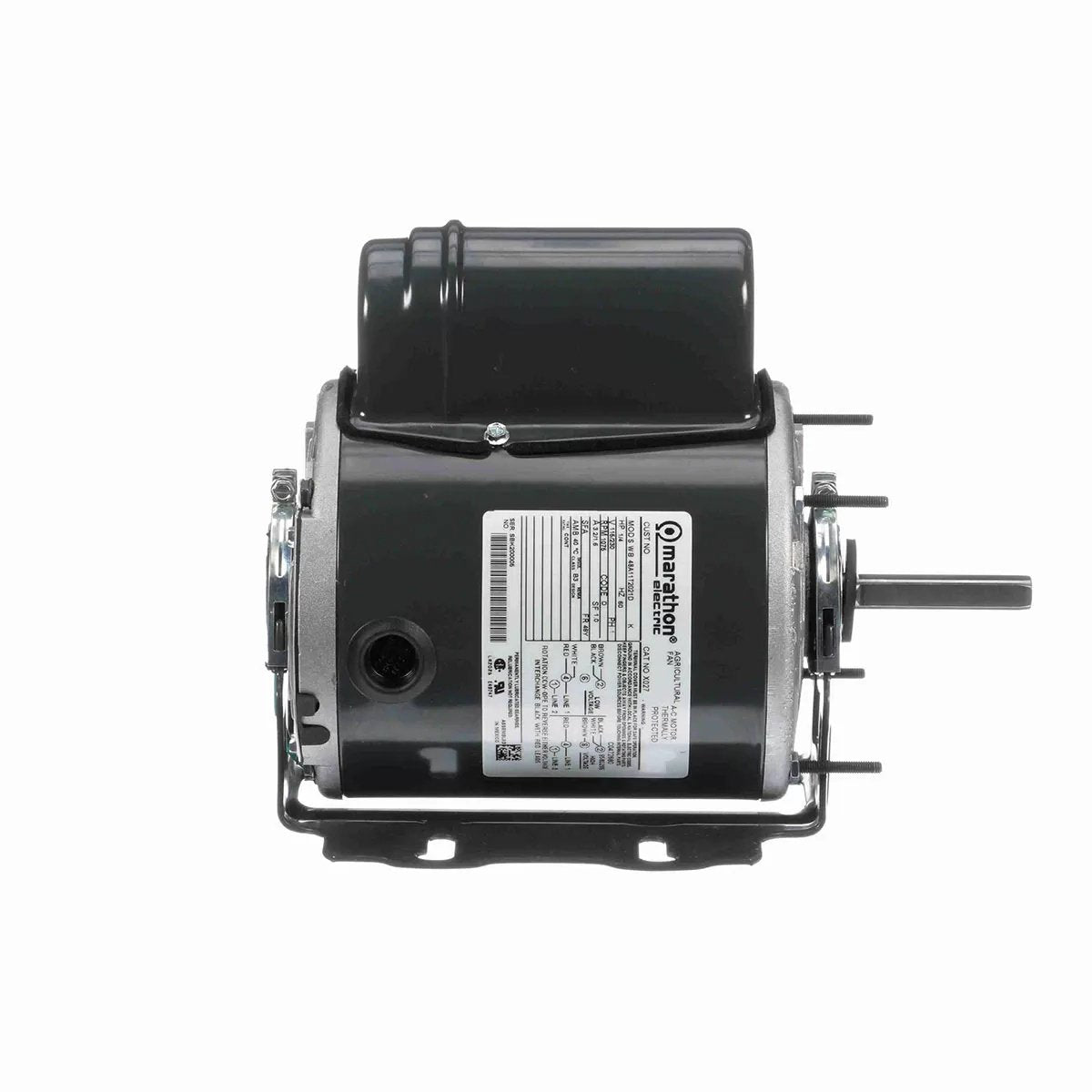

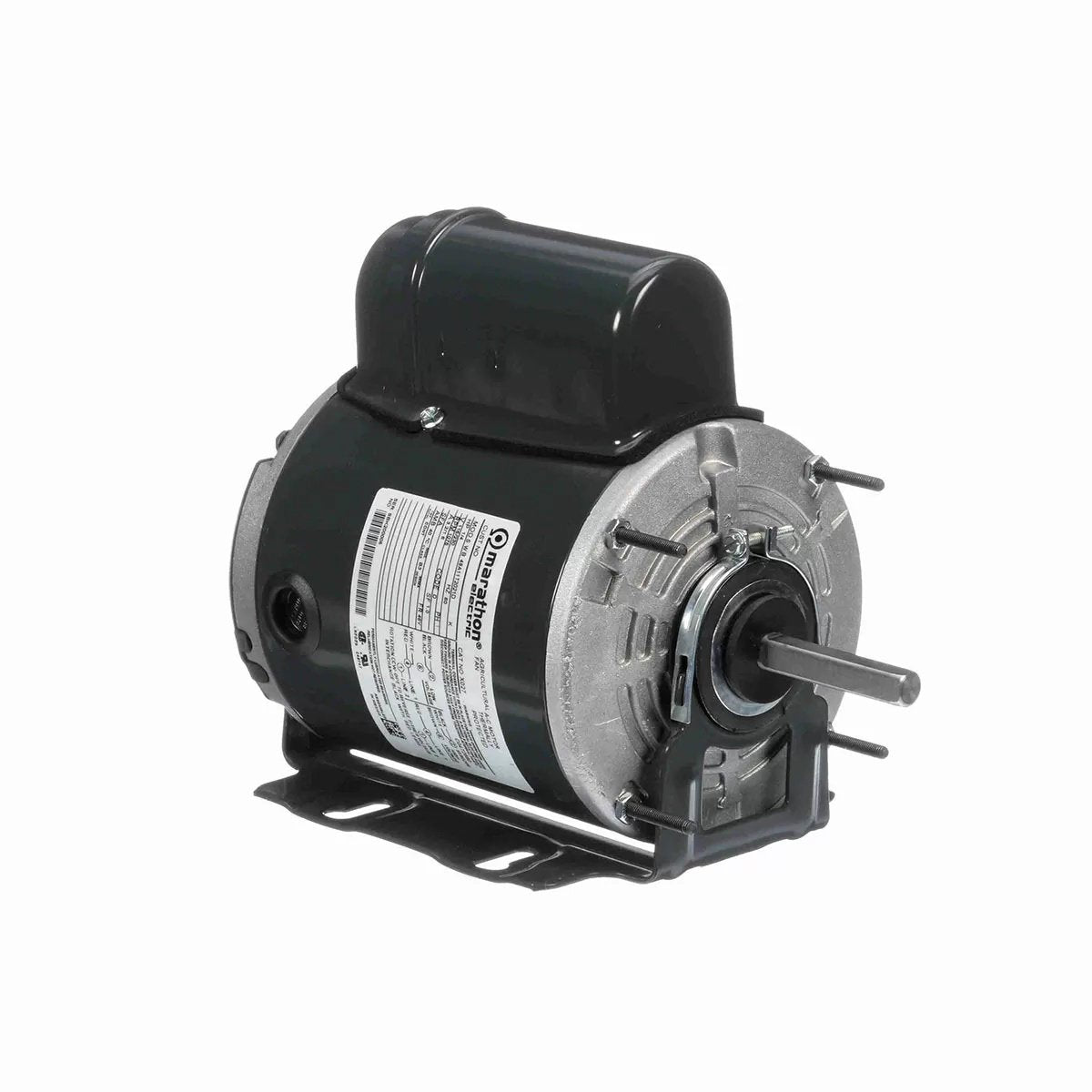

The Marathon General Purpose Farm Duty Motor Model - X027 is a 1/4 horsepower, single-speed, fully enclosed general-purpose motor that can be used for a wide variety of duties on the farm.

Features

• Double-shielded bearings extend the service life of the motor
• EXXON® Polyrex® EM Grease supports temperatures between -20°F and +350°F
• Shaft flingers protect bearings from damage
• Condensation drains allow the motor to expel and drain moisture.

Specifications

• HTC:8501.40.4040
• Output HP:1/4 Hp
• Output KW: 0.19 kW
• Frequency: 60 Hz
• Voltage: 115/230 V
• Current: 3.2/1.6A
• Speed:1075 rpm
• Service Factor: 1
• Phase:1
• Efficiency: 59.5%
• Power Factor: 91
• Duty: Continuous
• Insulation Class:B
• Design Code: None
• KVA Code: D
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 43
• Number of Speeds: 1

Technical Specifications

• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Selective Counterclockwise
• Resistance Main:0 Ohms
• Mounting: Round - Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Single Special Extension
• Overall Length: 10.09 in
• Frame Length: 5.50 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 2.56 in
• Assembly/Box Mounting: F1 ONLY

Dimensions

• Weight: 15.00 lbs
• Length: 12.44"
• Width: 9.13"
• Height: 8.06"
