Modine Hot Dawg® Heater - Model HD
SKU:
QC Part #20855+LP-100BTU | MFR # HD 100AS0121FBAN
Regular price
$1,279
99
Sale price
$1,279
99
Regular price
Unit price
per
FREE SHIPPING on Modine Hot Dawg Heaters. If you're looking for a garage heater or a shop heater, Modine Hot Dawg heaters offer convenience and quality at a great price.
Ships within 2 Business Days
Description
Reviews
Q&A
Documents
More about Modine Hot Dawg® Heater - Model HD
Please inspect all units at the time of delivery & notify shipping company of any damage immediately.
Shipping is included in the price of the heater for US orders (excludes Alaska, Hawaii and Puerto Rico). This offer is valid only for orders placed online. Free shipping is for the heater only. You will be charged shipping for parts and accessories.
If you are purchasing a heater unit that will be installed at an elevation above 2,000 ft., please denote on the order. Modine has changed the process in how they deal with heaters installed at elevations above 2,000'. Modine no longer provides gas orifices to make the adjustment; instead, an adjustment is now made in the field on the unit's gas valve. For additional information, please see the document titled "High Altitude Kit Instructions" below in the Documents section.

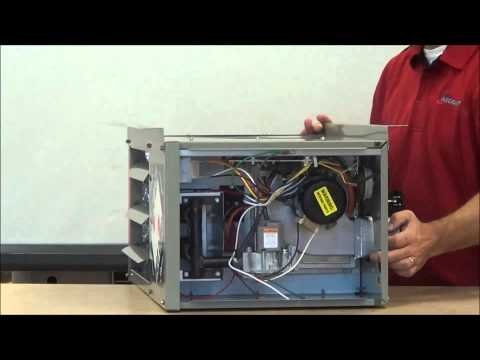

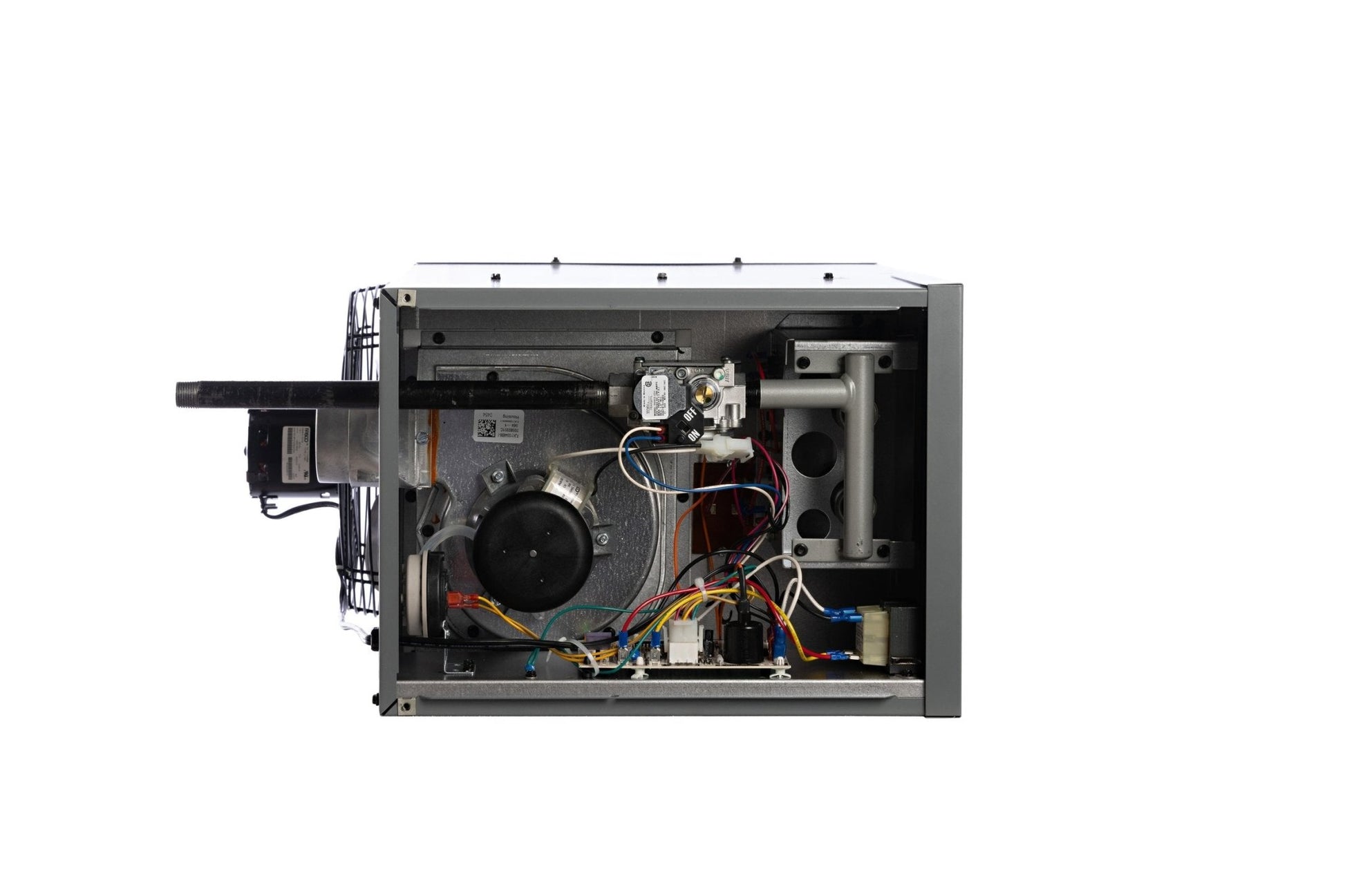

The Installation & Service Manual is located on the inside of the unit and is accessible by removing the side panel.
NOTE: 100,000-125,000 BTU models do not include mounting brackets. These units feature 4 top threaded holes for mounting with 3/8" threaded rod or 3/8" eye bolts and chain.

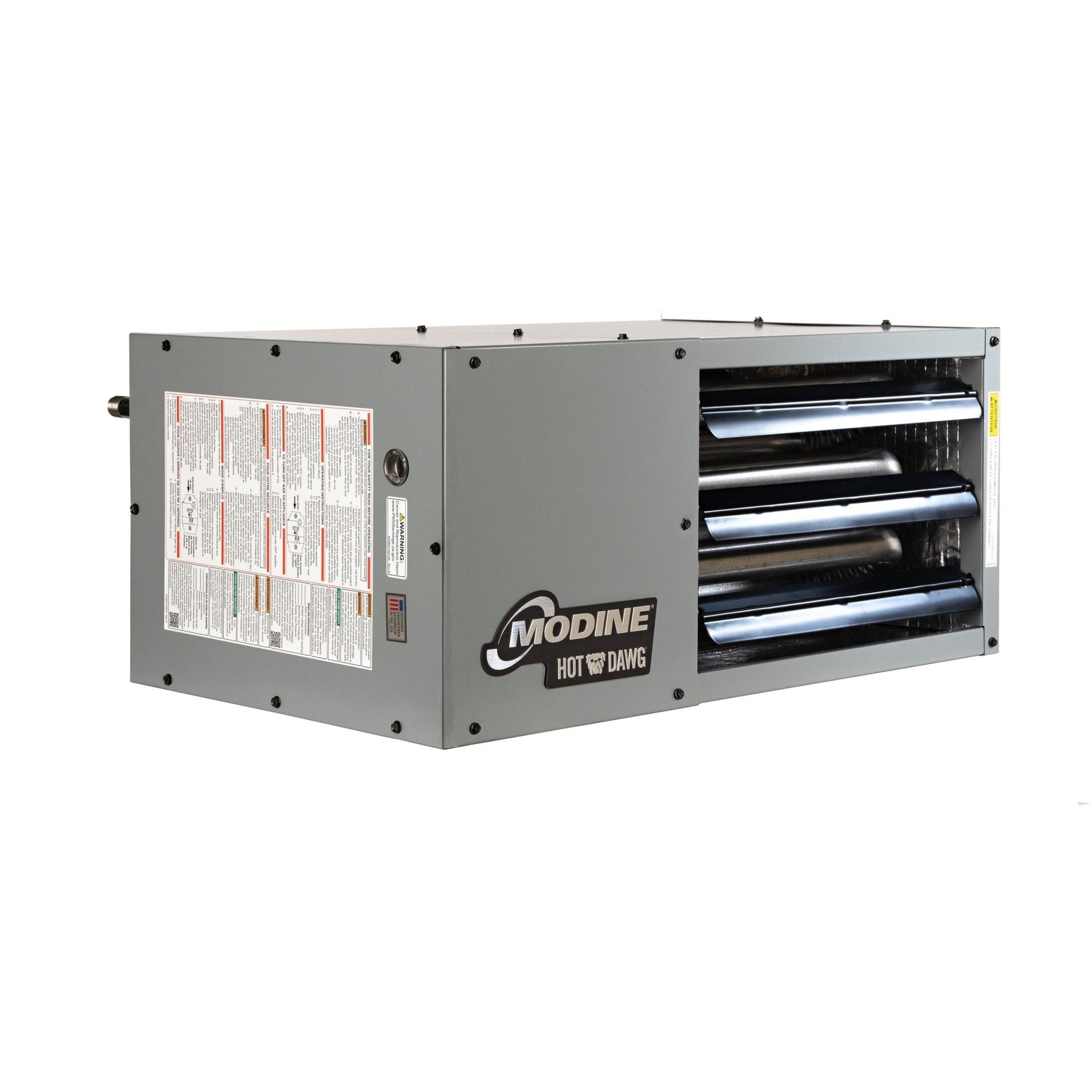

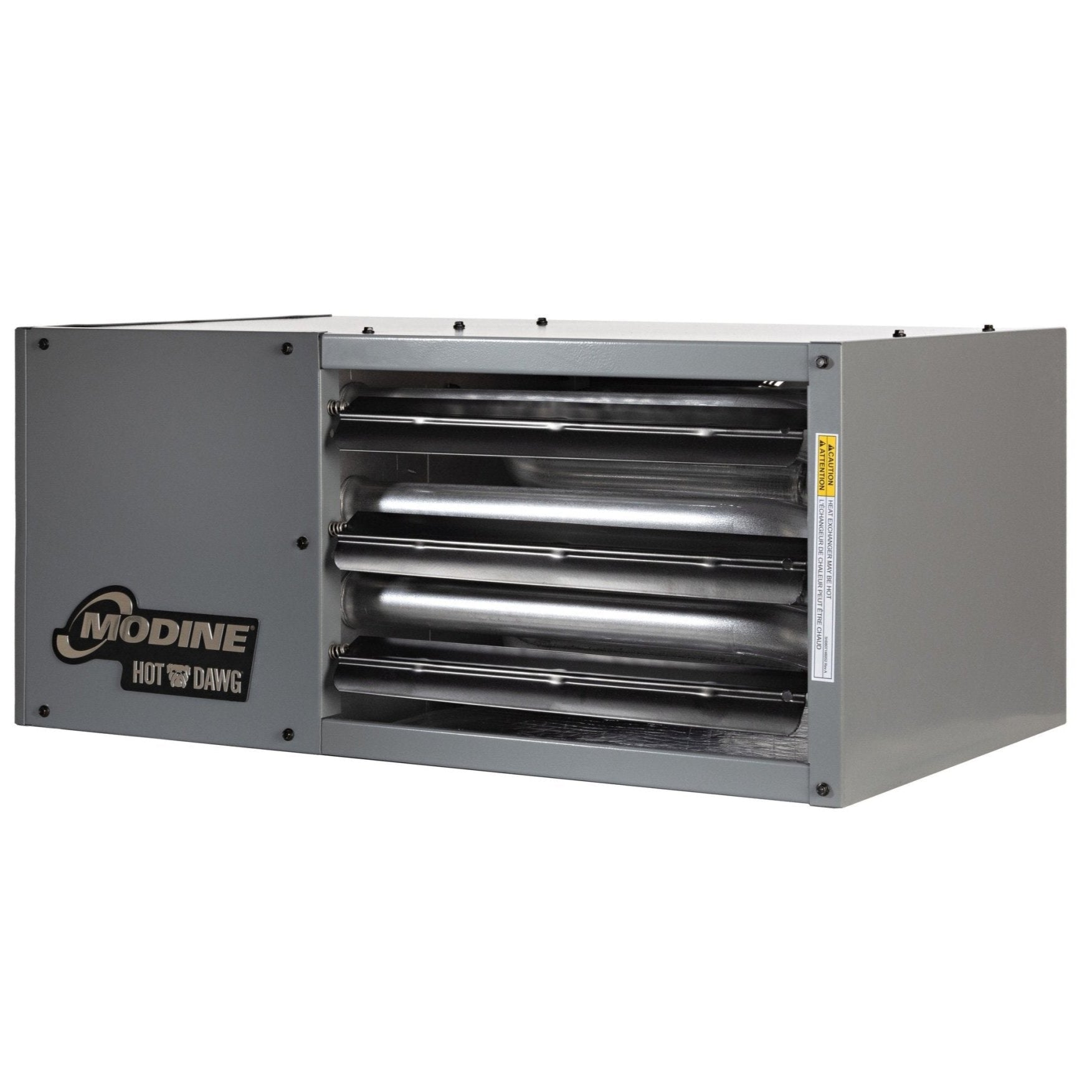

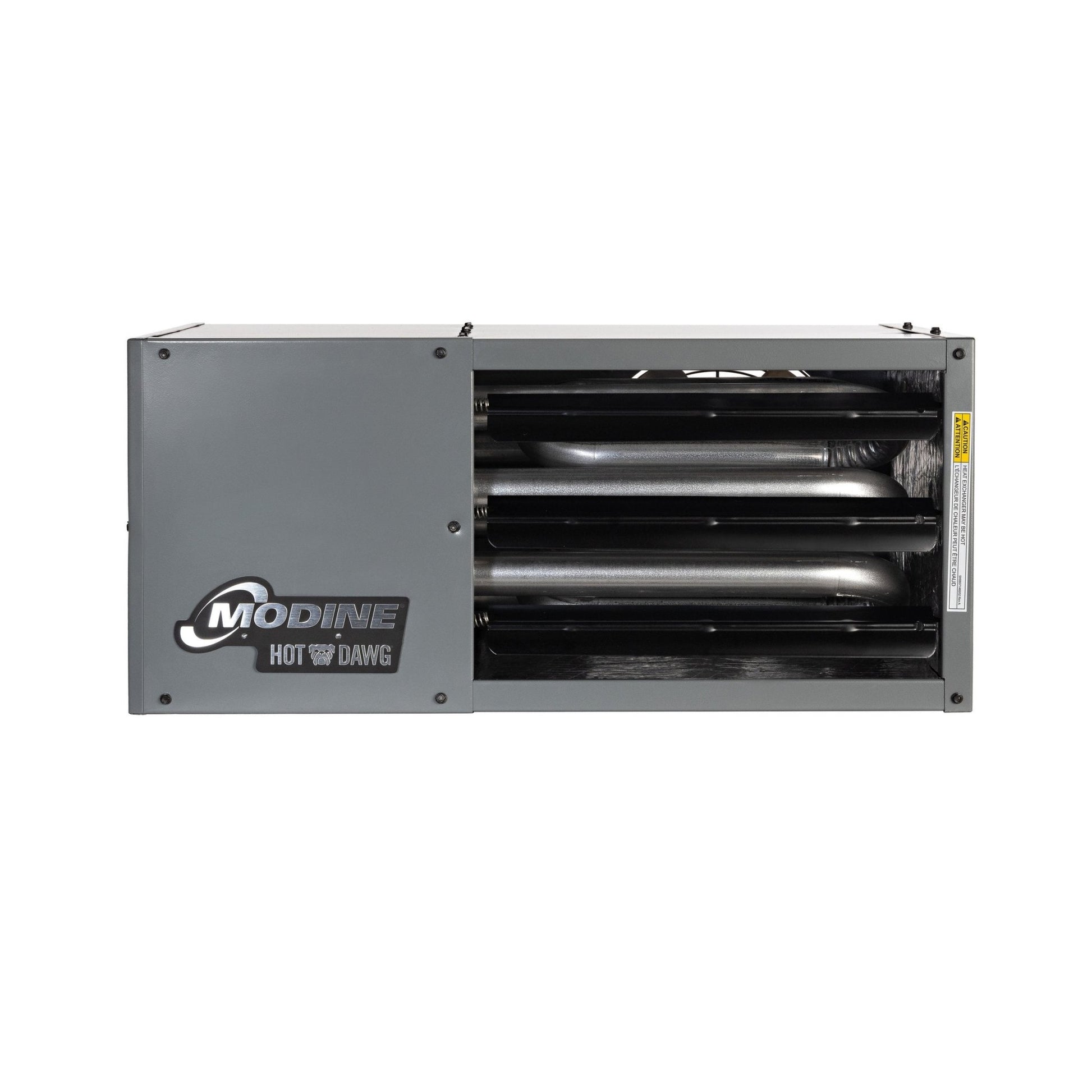

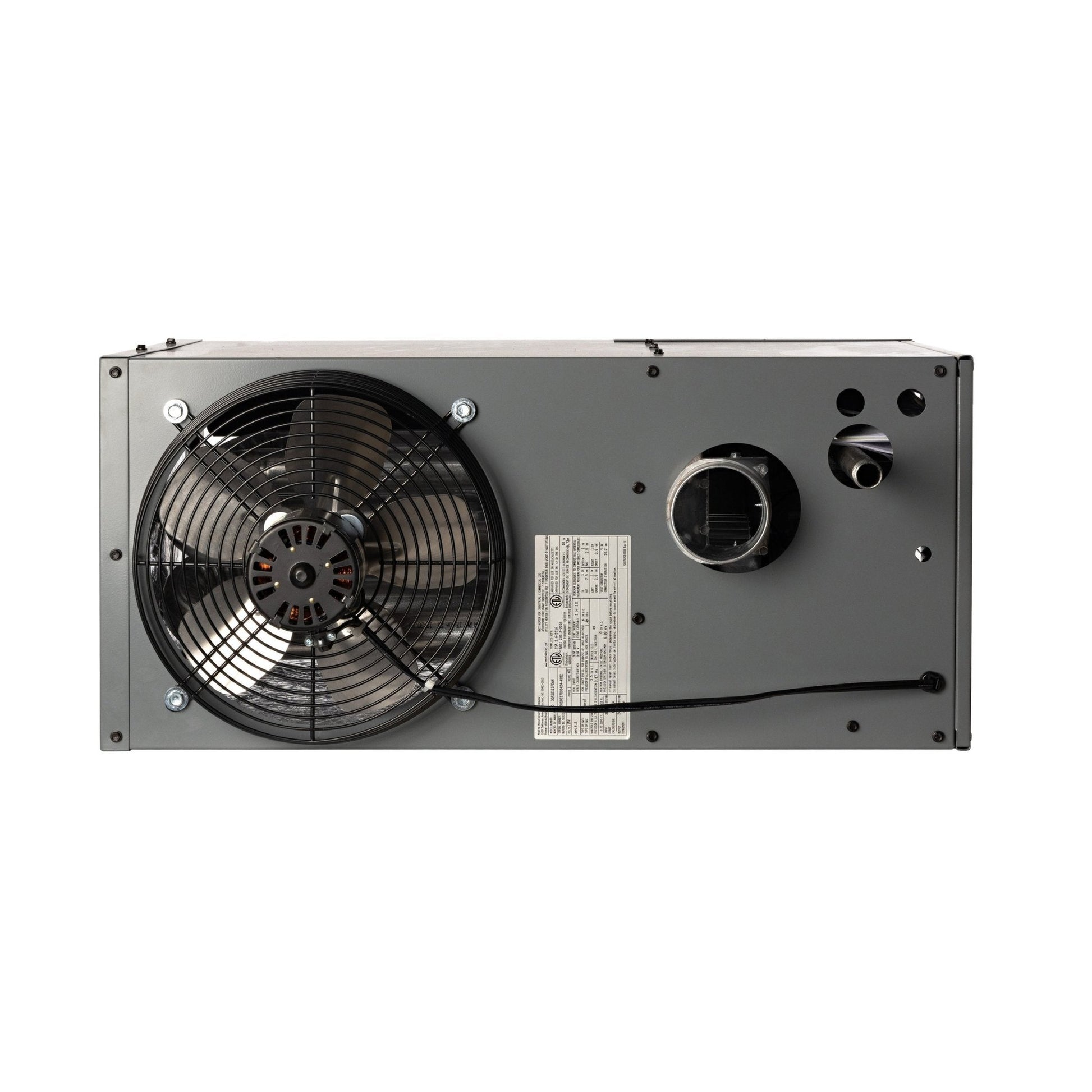

An affordable way to heat your barn, garage, workshop, or warehouse, the HD Model Modine Hot Dawg Heater operates at an impressive 80% thermal efficiency. Easy to install, the heater features a direct spark ignition, low-profile design, and quiet operation. The heater may be fueled with your choice of liquid propane or natural gas. Certified for residential, commercial, and industrial use.
All installation and service of the Modine Hot Dawg Garage and Shop Heaters should be performed by a qualified installation and service agency.
Features & Advantages
- 80% thermal efficiency
- Quiet operation
- Choose from Natural Gas or Propane
- Direct spark ignition
- Low-profile design
- Certified for residential, commercial & industrial use
- Standard power exhaust simplifies side-wall or roof venting
- Versatile design allows for right or left-hand controls and installation; gas, electrical & flue connections can be changed from one side to the other by simply flipping the Hot Dawg over; 30,000-75,000 BTU units only
- Permanently-lubricated motor for trouble-free dependability
- Full 10-year manufacturer warranty on heat exchanger
- 3" vent - 30,000-75,000 BTU
- 4" vent - 100,000-125,000 BTU
- 115V/60Hz/1Ph
- CSA Certified
- Aluminized heat exchanger
- Made in the USA
| Unit | Model # | BTU Input |
BTU Output |
Gas Used | Application | Dimensions L x W x H |
Weight/Shipping |
|---|---|---|---|---|---|---|---|
| HD30A | HD30AS0121 | 30,000 | 24,600 | Propane | 1-1 1/2 Car Garage | 26.8"x 16.5" x 13.2" | 67 lbs/FedEx Shippable |
| HD30A | HD30AS0111 | 30,000 | 24,600 | Natural Gas | 1-1 1/2 Car Garage | 26.8" x 16.5" x 13.2" | 67 lbs/FedEx Shippable |
| HD45A | HD45AS0121 | 45,000 | 36,900 | Propane | 2-2 1/2 Car Garage | 26.8" x 16.5" x 13.2" | 72 lbs./FedEx Shippable |
| HD45A | HD45AS0111 | 45,000 | 36,900 | Natural Gas | 2-2 1/2 Car Garage | 26.8" x 16.5" x 13.2" | 72 lbs./FedEx Shippable |
| HD60A | HD60AS0121 | 60,000 | 49,200 | Propane | 3-3 1/2 Car Garage | 26.8" x 16.5" x 19" | 92 lbs./FedEx Shippable |
| HD60A | HD60AS0111 | 60,000 | 49,200 | Natural Gas | 3-3 1/2 Car Garage | 26.8" x 16.5" x 19" | 92 lbs./FedEx Shippable |
| HD75A | HD75AS0121 | 75,000 | 61,500 | Propane | Shop-Large Garage | 26.8" x 16.5" x 19" | 97 lbs./Freight Only |
| HD75A | HD75AS0111 | 75,000 | 61,500 | Natural Gas | Shop-Large Garage | 26.8" x 16.5" x 19" | 97 lbs./Freight Only |
| HD100A | HD100AS0121 | 100,000 | 82,000 | Propane | Shop-Large Garage | 35.5" x 22" x 21.5" | 143 lbs./Freight Only |
| HD100A | HD100AS0111 | 100,000 | 82,000 | Natural Gas | Shop-Large Garage | 35.5" x 22" x 21.5" | 143 lbs./Freight Only |
| HD125A | HD125AS0121 | 125,000 | 102,500 | Propane | Shop-Large Garage | 35.5" x 22" x 21.5" | 143 lbs./Freight Only |
| HD125A | HD125AS0111 | 125,000 | 102,500 | Natural Gas | Shop-Large Garage | 35.5" x 22" x 21.5" | 143 lbs./Freight Only |
**HD75 units can ship via parcel to certain states, however, we recommend shipping this unit via Motor Freight. Call for details.
Additional Specifications
| Unit | CFM | Air Temp Rise | Mounting Height Max | Heat Throw | Amps | Vent Size |
|---|---|---|---|---|---|---|
| HD30A | 505 | 44° | 10' | 25' | 3.75 | 3" |
| HD45A | 720 | 46° | 10' | 27' | 3.75 | 3" |
| HD60A | 990 | 45° | 12' | 36' | 3.3 | 3" |
| HD75A | 1,160 | 48° | 14' | 38' | 3.3 | 3" |
| HD100A | 1,490 | 50° | 12' | 42' | 5.05 | 4" |
| HD125A | 1,980 | 47° | 16' | 56' | 4.75 | 4" |
Venting Components
| HD30 - HD75 | HD100 - HD125 | ||
|---|---|---|---|
| 3" Pipe | 4" Pipe | ||

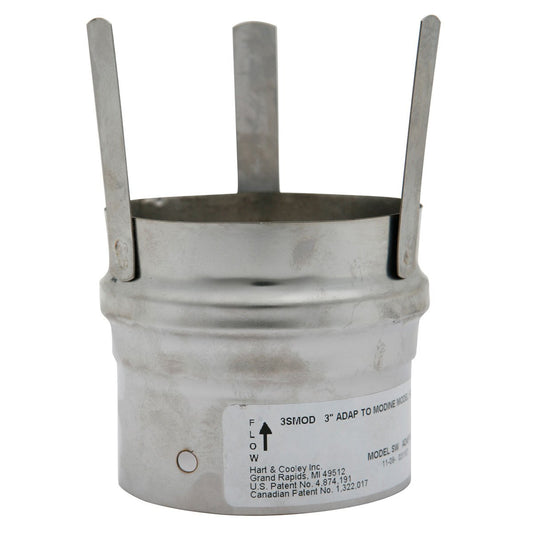

| Flue Adapter | QC Part #21316 | QC Part #21317 | |

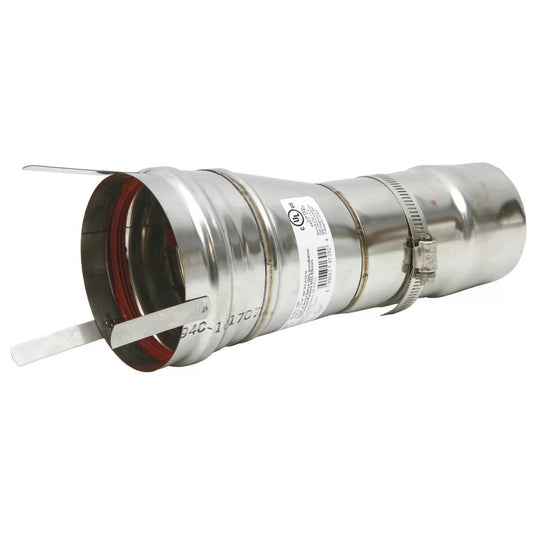

| Increaser | QC Part #21307 | N/A | |
| 5' Pipe | QC Part #21300 | QC Part #21301 | |

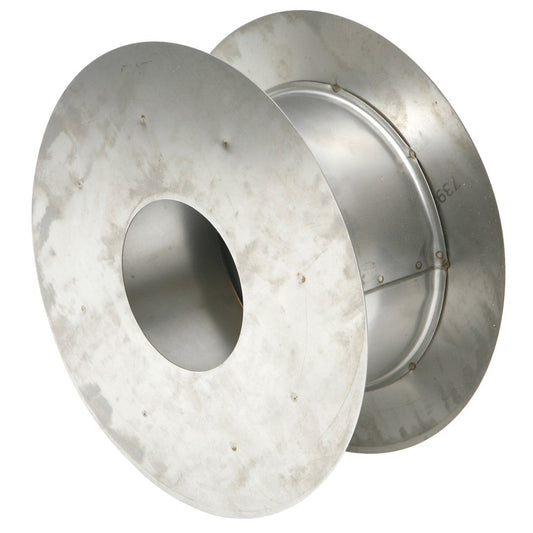

| Thimble | QC Part #21312 | QC Part #21313 | |

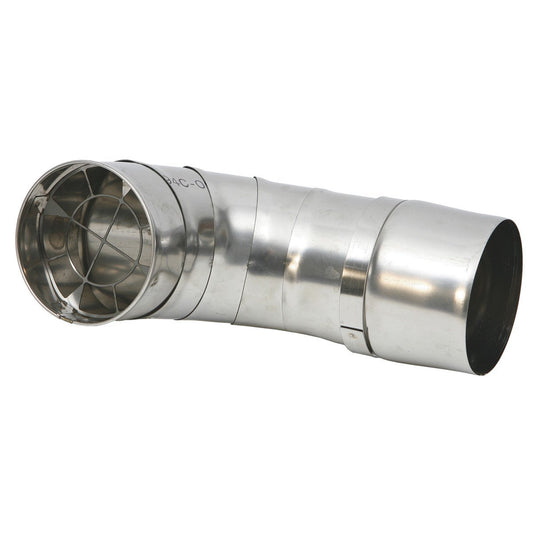

| Vent Cap | QC Part #21314 | QC Part #21315 | |
| Optional | |||

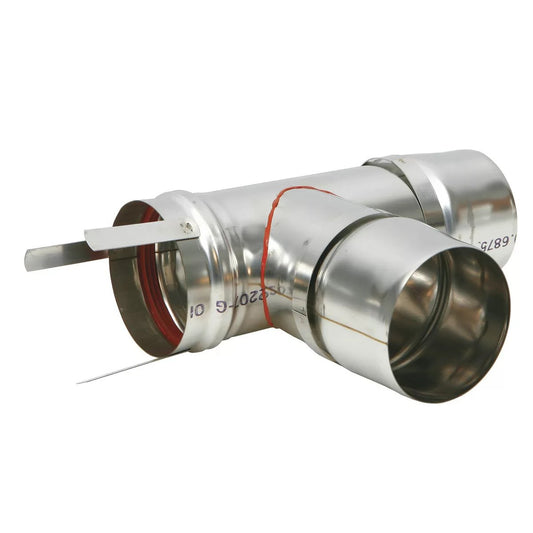

| Tee | QC Part #21308 | QC Part #21309 | |
| T-Cap | QC Part #21310 | QC Part #21311 | |
| Elbow | QC Part #21305 | QC Part #21306 | |
Additional Information
- HD100 & HD125 models require a 4" pipe
- The HD30-HD75 models typically use 3" pipe. They can use 4" pipe, but only when an increaser, QC Part #21307 is used as well
- Check with a local building inspector to determine if your structure is classified as residential or commercial
- All installation and service of the Modine Hot Dawg Garage and Shop Heaters should be performed by a qualified installation and service agency
- When ordering parts for Modine Hot Dawg Heaters, please have the following ready: Model Number, Serial Number, Power Code and Control Code. These can be found on the serial plate on the inside of the side panel
- The Installation & Service Manual is located on the inside of the unit and is accessible by removing the side panel.
