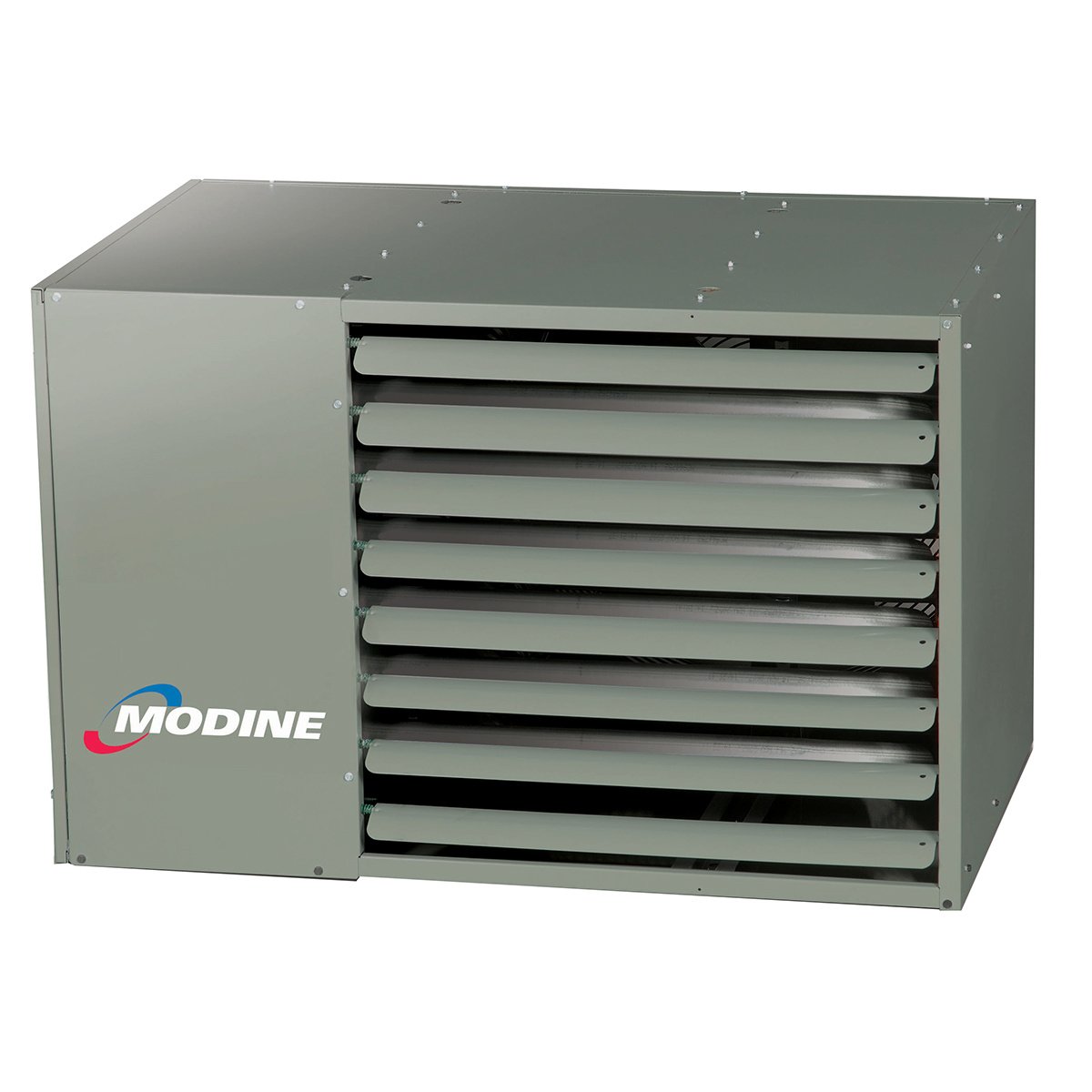

Modine Low-Profile Horizontal Power Vented (PTP) Heater - 200,000 BTU Liquid Propane
This item is temporarily out of stock, but you can still order it. We’ll ship your item as soon as it’s restocked. Contact us for estimated delivery timing.
More about Modine Low-Profile Horizontal Power Vented (PTP) Heater - 200,000 BTU Liquid Propane
The PTP series of heaters from Modine were specifically designed with the customer in mind to provide a high value at a reasonable cost. This 200,000 BTU Liquid Propane Low-Profile Horizontal Power Vented (PTP) Heater delivers 82/83% thermal efficiency in a robust package of design features.
The PTP series is ideal for heating a commercial workspace like a warehouse, workshop or studio. This heater is available in seven sizes from 150,000 to 400,000 BTUs. All models are designed, engineered and assembled in the United States.
Features
- The aluminized heat exchanger is standard on all units, extending the life of your investment
- Optional stainless steel heat exchanger - call our sales department at 888-433-5275 for details
- Bent tube, low-profile design
- Enclosed fan motors and all controls are mounted inside the cabinet for protection from airborne moisture & dust
- 10-year heat exchanger manufacturer warranty, even in greenhouse applications
- Quick & easy installations with wiring terminals and knockouts for quick access to gas & electricity and a roomy controls cabinet for ease of work
- Standard power exhaust simplifies side-wall or roof venting with a small diameter vent pipe
- Permanently-lubricated motor for trouble-free dependability
- Shipping Dimensions: 35" L x 26" H x 43" W
- Shipping Weight: 215 lbs
- Designed, Engineered & Assembled in the USA
PTP Specifications/Performance Data
| QC Part # | Model Size | Gas Type | BTU/Hr Input | BTU/Hr Output | Max Mounting Height | Heat Throw | CFM Range |
|---|---|---|---|---|---|---|---|
| 21761 | 150 | Natural Gas | 150,000 | 123,000 | 15 ft | 51 F-53 F | 2,140-2,180 |
| 21762 | 175 | Natural Gas | 175,000 | 143,500 | 14 ft | 48 F-51 F | 2,550-2,725 |
| 21763 | 200 | Natural Gas | 200,000 | 166,000 | 15 ft | 521 F | 2,870 |
| 21764 | 250 | Natural Gas | 250,000 | 207,500 | 18 ft | 47 F-50 F | 3,700-3,995 |
| 21765 | 300 | Natural Gas | 300,000 | 249,900 | 19 ft | 50 F | 4,460-4,545 |
| 21766 | 350 | Natural Gas | 350,000 | 290,500 | 18 ft | 50 F-53 F | 4,870-5,280 |
| 21767 | 400 | Natural Gas | 400,000 | 332,000 | 21 ft | 51 F-54 F | 5,440-5,995 |
| 21768 | 150 | Liquid Propane | 150,000 | 123,000 | 15 ft | 51 F-53 F | 2,140-2,180 |
| 21769 | 175 | Liquid Propane | 175,000 | 143,500 | 14 ft | 48 F-51 F | 2,550-2,725 |
| 21770 | 200 | Liquid Propane | 200,000 | 166,000 | 15 ft | 52 F | 2,870 |
| 21771 | 250 | Liquid PropaneGas | 250,000 | 207,500 | 18 ft | 47 F-50 F | 3,700-3,995 |
| 21772 | 300 | Liquid Propane | 300,000 | 249,900 | 19 ft | 50 F | 4,460-4,545 |
| 21773 | 350 | Liquid Propane | 350,000 | 290,500 | 18 ft | 50 F-53 F | 4,870-5,280 |
| 21774 | 400 | Liquid Propane | 400,000 | 332,000 | 21 ft | 51 F-54 F | 5,440-5,995 |
Ratings above are shown for elevations of up to 2,000 feet. Units are approved for use in California by CEC.
WARNING: Do NOT locate ANY gas-fired unit in areas with chlorinated, halogenated or acidic vapors in the atmosphere.
