Modine Single Phase Electric Heater 208 Volt/3 Phase
More about Modine Single Phase Electric Heater 208 Volt/3 Phase
Modine's Horizontal (Air Delivery) Type HER Heaters Are Offered in 27 Models and 7 Sizes Ranging from 5 kW Through 25 kW.

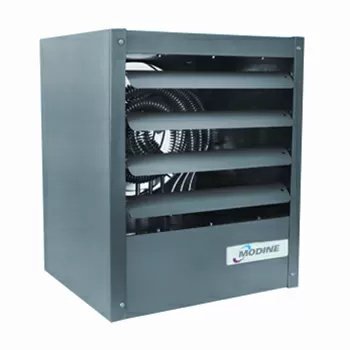

The Modine Electric Unit Heater (model HER) is recommended for lower-ceiling applications. Electric unit heaters have lower installation costs and are easier to install, requiring no venting, piping, valves or traps. Modine Electric Unit Heaters are equipped with horizontal air deflector blades to adjust airflow either up or down. Optional vertical deflector blades are also available to deflect air to the right or left, providing complete directional control over discharge of heated air.
Horizontal delivery units are normally placed around the perimeter of the building where heat loss is greatest, so that the air stream from each heater "wipes" the wall to produce a blanket of warm air along the outside walls.
Features/Advantages:
- Recommended for Lower Ceiling Applications
- Unvented
- Quiet Operation
- Totally Enclosed Motors
- Elements are Nickel Chromium
- Elements Coated with Magnesium Oxide
- Automatic Reset Limit Control
- Application Flexibility
| QC Part # | Model | Volts/Phase | KW | BTU/HR | Max. Mtg. Ht. Ft. |
Temp. Rise | Amps | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|
| 21100 | HER5011 | 208/1P | 5.0 | 17,100 | 8' | 30° | 24.5 | 52 |
| 21101 | HER5012 | 240/1P | 5.0 | 17,100 | 8' | 30° | 21.3 | 52 |
| 21102 | HER5031 | 208/3P | 5.0 | 17,100 | 8' | 30° | 14.3 | 52 |
| 21104 | HER5033 | 480/3P | 5.0 | 17,100 | 8' | 30° | 6.5 | 52 |
| 21106 | HER7512 | 240/1P | 7.5 | 25,600 | 8' | 30° | 31.7 | 52 |
| 21107 | HER7531 | 208/3P | 7.5 | 25,600 | 8' | 45° | 21.3 | 52 |
| 21108 | HER7532 | 240/3P | 7.5 | 25,600 | 8' | 45° | 18.5 | 52 |
| 21109 | HER7533 | 480/3P | 7.5 | 25,600 | 8' | 45° | 9.5 | 52 |
| 21110 | HER10011 | 208/1P | 10.0 | 34,100 | 9' | 38° | 49.4 | 67 |
| 21111 | HER10012 | 240/1P | 10.0 | 34,100 | 9' | 38° | 42.9 | 67 |
| 21112 | HER10031 | 208/3P | 10.0 | 34,100 | 9' | 38° | 29 | 67 |
| 21113 | HER10032 | 240/3P | 10.0 | 34,100 | 9' | 38° | 25.3 | 67 |
| 21114 | HER10033 | 480/3P | 10.0 | 34,100 | 9' | 38° | 13.3 | 67 |
| 21115 | HER12531 | 208/3P | 12.5 | 42,700 | 10' | 48° | 36.0 | 65 |
| 21116 | HER12532 | 240/3P | 12.5 | 42,700 | 10' | 48° | 31.4 | 65 |
| 21117 | HER12533 | 480/3P | 12.5 | 42,700 | 10' | 48° | 16.3 | 65 |
| 21118 | HER15031 | 208/3P | 15.0 | 51,200 | 10' | 57° | 42.9 | 74 |
| 21119 | HER15032 | 240/3P | 15.0 | 51,200 | 10' | 57° | 37.4 | 74 |
| 21121 | HER15031 | 208/3P | 20.0 | 68,300 | 11' | 49° | 56.8 | 97 |
| 21123 | HER20033 | 480/3P | 20.0 | 68,300 | 11' | 49° | 25.3 | 97 |
| 21124 | HER25031 | 208/3P | 25.0 | 85,400 | 12' | 61° | 70.7 | 98 |
| 21125 | HER25032 | 240/3P | 25.0 | 85,400 | 12' | 61° | 61.4 | 98 |
| 21126 | HER25033 | 480/3P | 25.0 | 85,400 | 12' | 61° | 31.4 | 98 |
