Bring flexibility and versatility to your fingertips with a 6 Module Phason AutoFlex Mini Connect II Modular Control Unit. This controller will allow you to control and manage ventilation, supplemental cooling, heating, lighting, feeding, and more.

AutoFlex II is modular and adapts to your needs, whether you are running a large operation with several dozen sites or a small facility with one or two buildings. It allows you to build out your control as you determine what additional inputs and outputs you need. AutoFlex Connect II becomes more economical as your operation expands.

Smart Modules are available to control variable or fixed-speed fans, air inlets, curtains, lighting, feed loops, and more. On the input side, you can choose to monitor conditions such as temperature, humidity, ammonia, carbon dioxide, and more.

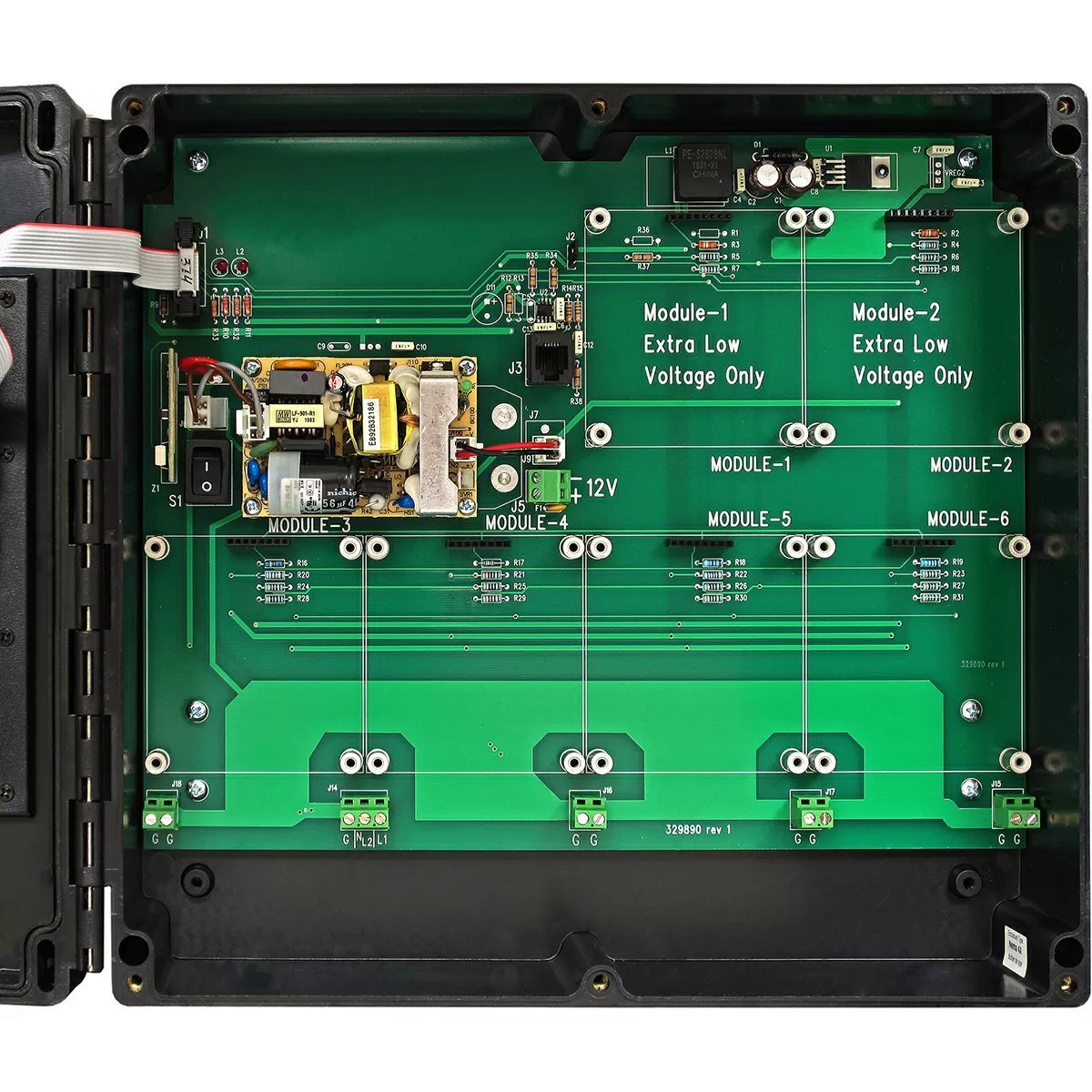

While this unit comes ready for 6 modules, by adding an expansion box, you can add additional capacity.

AutoFlex II Provides Solutions to Your Control Needs

• Ventilation Customize to provide optimum environmental conditions
• Evaporative Cooling Avoid heat stress with supplemental cooling & maintain production
• Lighting Schedule lighting programs to achieve excellent production results
• Feeding Manage feed schedules & inventory
• Analytics Create charts & reports to help you understand & manage your operation
• Alarms & Notifications Configure alarms & notifications you want sent to your phone & e-mail

Features

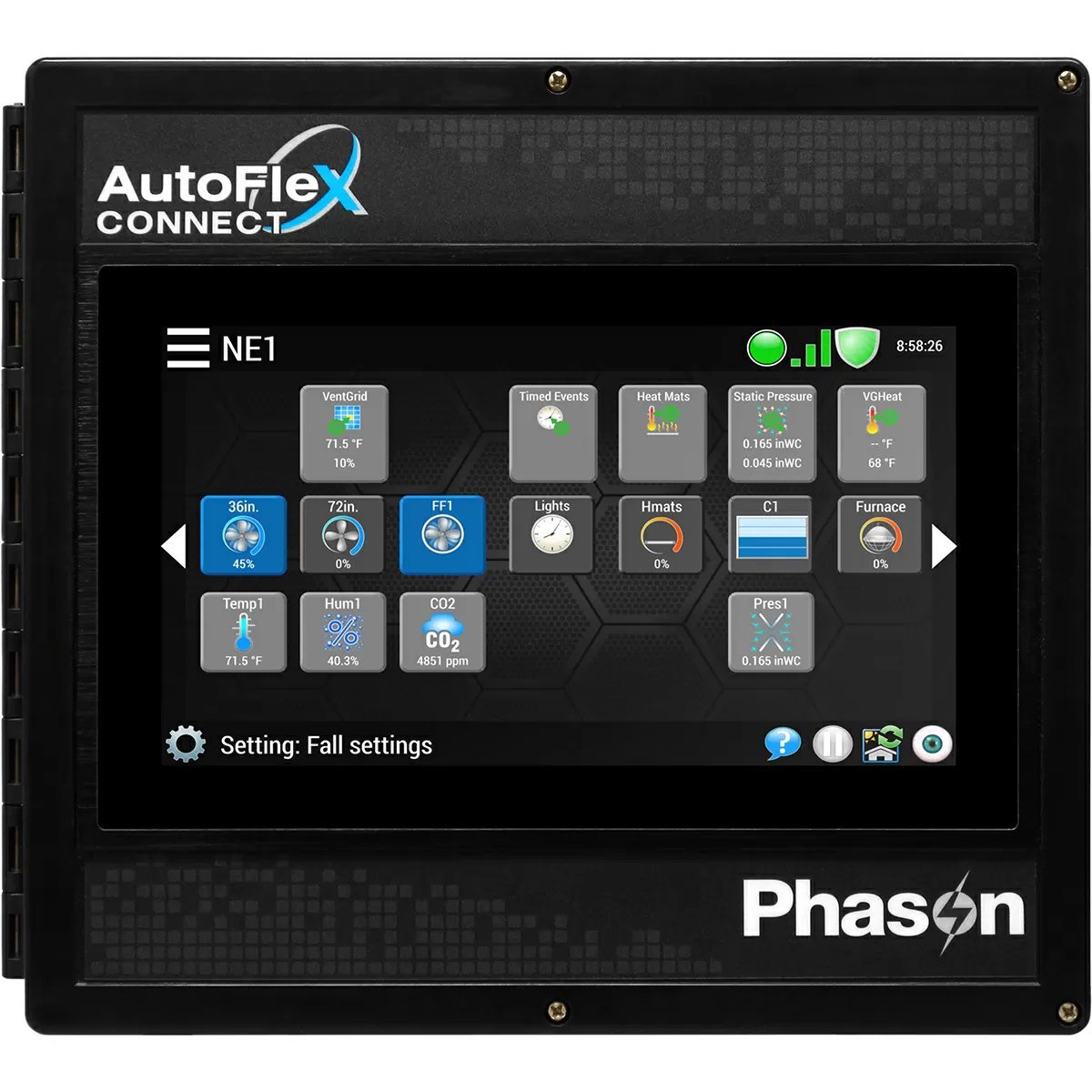

• Intuitive user interface 10" capacitive touch display
• Local configuration & monitoring at the control using the touchscreen
• Remote configuration & monitoring from any web-enabled device
• Smart Modules for controlling equipment & monitoring sensors
• Available Expansion Boxes to increase module capacity
  • EXPANSION-14: 14 modules
  • EXPANSION-6: 6 modules
• NEMA 4X enclosure (corrosion-resistant, water-resistant & fire-retardant)
• CE certification
• QPS certification
• 2-year manufacturer warranty
• 2 ventilation control modes, traditional staged & VentGrid™ combi table
• 16 zones available for control & monitoring
• Full analytics package with customizable reports sent at your convenience

Monitor or Manage: Temperature Humidity, Carbon dioxide (CO2), Ammonia (NH3), Static pressure, Barometric pressure, Wind speed, Wind direction, Rain, Light level, Current, Digital switches, Pulses, THI, Wind chill

Ratings

• Control Power
• 85 to 264 VAC, 50/60 Hz
• Alarm Relay
• 0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load
• 0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load
• Actuator Modules (ACT-1 & ACT-1V)
• 15 A at 120/230 VAC, general-purpose (resistive)
• 1/2 HP at 120 VAC, 1 HP at 230 VAC
• 0-10 V DC signal feedback (ACT-1V only)
• Relay Module (RM-2) Loop Drive (AFX-FEED-LOOP)
• 20 A at 120/230 VAC, general-purpose (resistive)
• 1 HP at 120 VAC, 2 HP at 230 VAC
• 3-Phase Relay Module (RM-2-3PH)
• 1 HP at 120 VAC, 2 HP at 230 VAC
• 230 VAC coil, 70 VA inrush, pilot duty
• Relay Module (RM-4)
• 15 A at 120/230 VAC, general-purpose (resistive)
• 1/2 HP at 120 VAC, 1 HP at 230 VAC
• Variable AC Module (VAC-1)
• 7 A at 120/230 VAC, general-purpose (resistive)
• 4.9 FLA at 120/230 VAC, PSC motor
• 1/2 HP at 120 VAC, 1 HP at 230 VAC
• 800 W at 120 VAC, 1600 W at 230 VAC
• Variable Chimney Module (VCM-DC) Variable DC Module (VDC-4)
• 0 to 10 VDC, 2K Ω load
