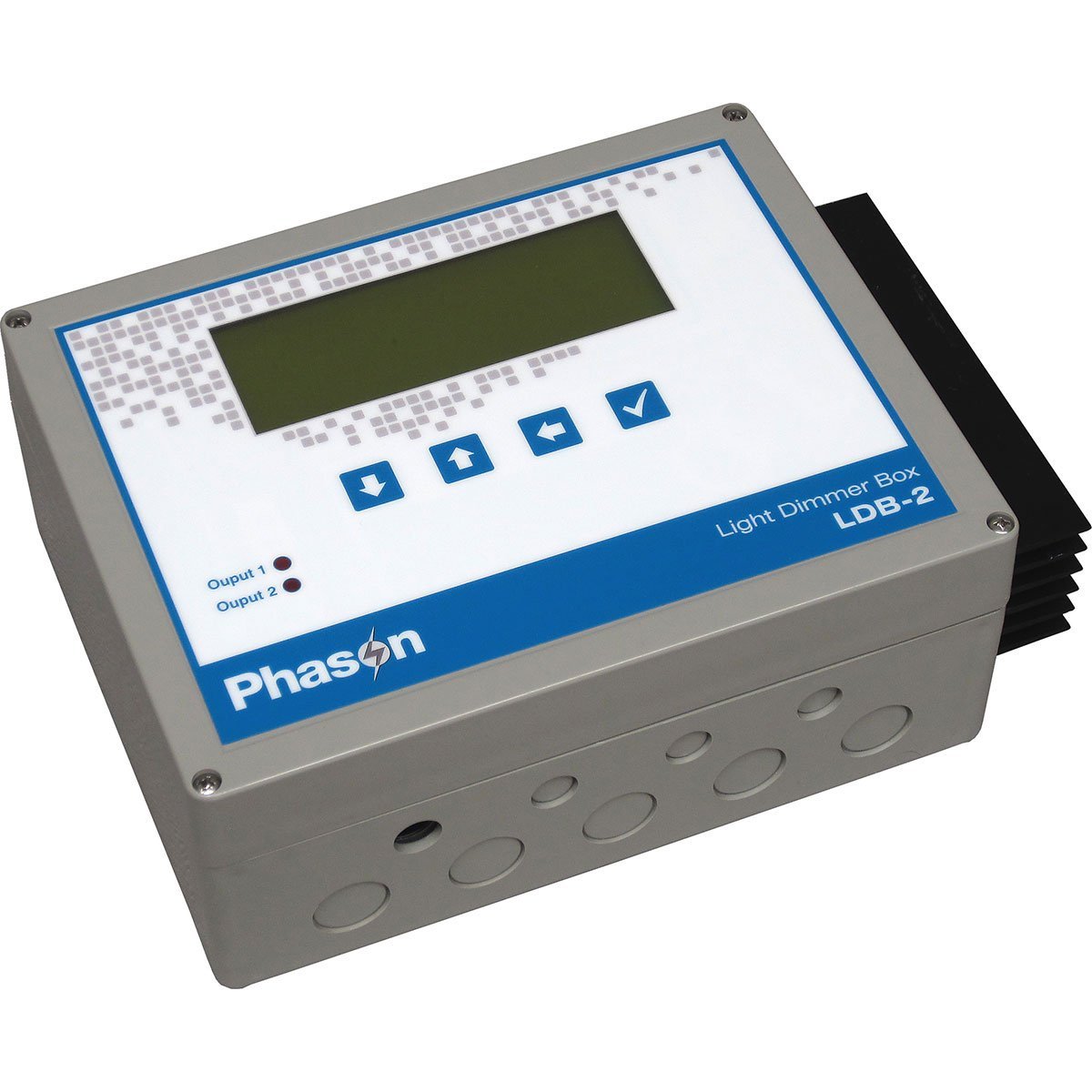

Phason Light Dimmer Box - LDB-2 is a two-channel control designed around its functionality and ability to control AC or DC-powered LED, CFL, or incandescent lights.

Benefits of a properly controlled lighting system:

• Correct light intensity and duration can have positive effects on the health, fertility, and productivity of dairy cattle.
• In poultry, light can be a tool to optimize growth, age of sexual maturity, egg weight, and egg production.
• In greenhouses, the quality of light has a positive effect on photosynthesis, reproduction, climate response and plant shape.

Features:

• Flicker-free lighting control
• LED, CFL, and incandescent compatibility
• Two automatic modes
• Power mode controls by 0 to 100% power output
• Sensor mode controls by measured lux output. (Requires DOL 16 light sensor)
• Configurable 365-day lighting program
• Independent programs for each channel
• Up to 20 schedules/lighting periods, per control mode
• Up to 12 events per schedule
• Separate ramp-up and ramp-down durations
• Automatic program restart option

• Two variable AC channels
• Two DC-signal (0 to 10 V) channels
• Two internal disconnect relays
• Two light sensor connections
• Light output calibration

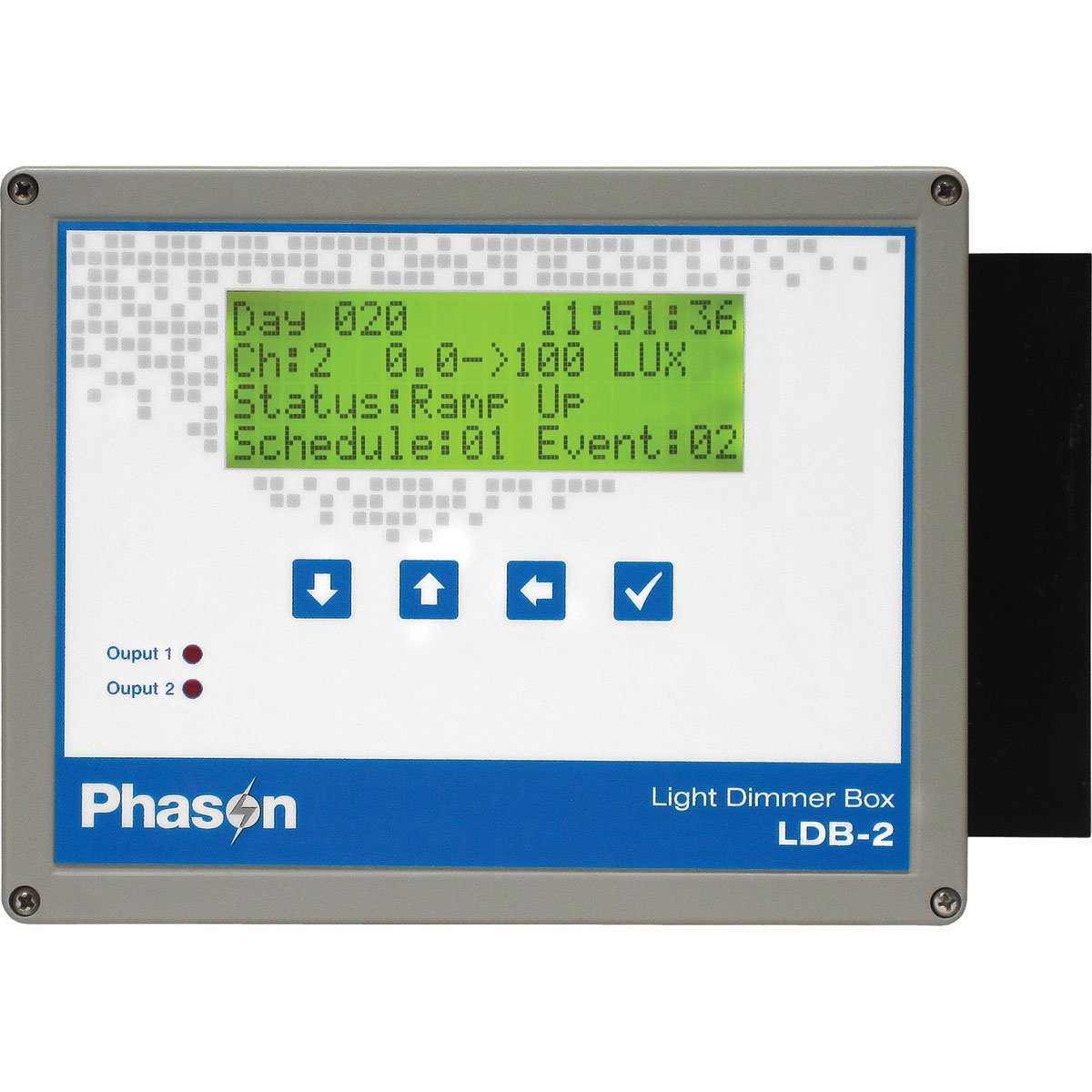

• Twenty-character, four-line backlit LCD display
• Real-time clock with power-failure settings protection
• Corrosion, water and fire resistant
• Manual override
• CSA approval
• 2 year warranty

Ratings

• Incoming power: 120/230 VAC, 50/60 Hz
• Control fuse: 250 V, 1 A fast-acting glass
• Variable AC (2): 8.5 A at 120/230 VAC, general-purpose (resistive), 1000 W at 120 VAC, 2000 W at 230 VAC
• Variable AC fuses (2): 15 A, 250 VAC ABC-type ceramic
• Variable DC: 0 to 10 V, 50 Ω, 200 mA
• Relays (2): 10 A at 120/230 VAC, general-purpose (resistive), 1/3 HP at 120 VAC, 1/2 HP at 230 VAC and 360 W tungsten at 120 VAC
• Relay fuses (2): 12 A, 250 VAC ABC-type ceramic
• Alarm relay: 0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load and 0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load
