The Phason Single Stage Variable DC Controller - FC-1T-1VDC has a 0 to 10 VDC signal output and a disconnect relay that allows you to easily control variable frequency drives.

Other applications include controlling expansion controls, modulating valves, or other equipment requiring a DC signal.

How it works:

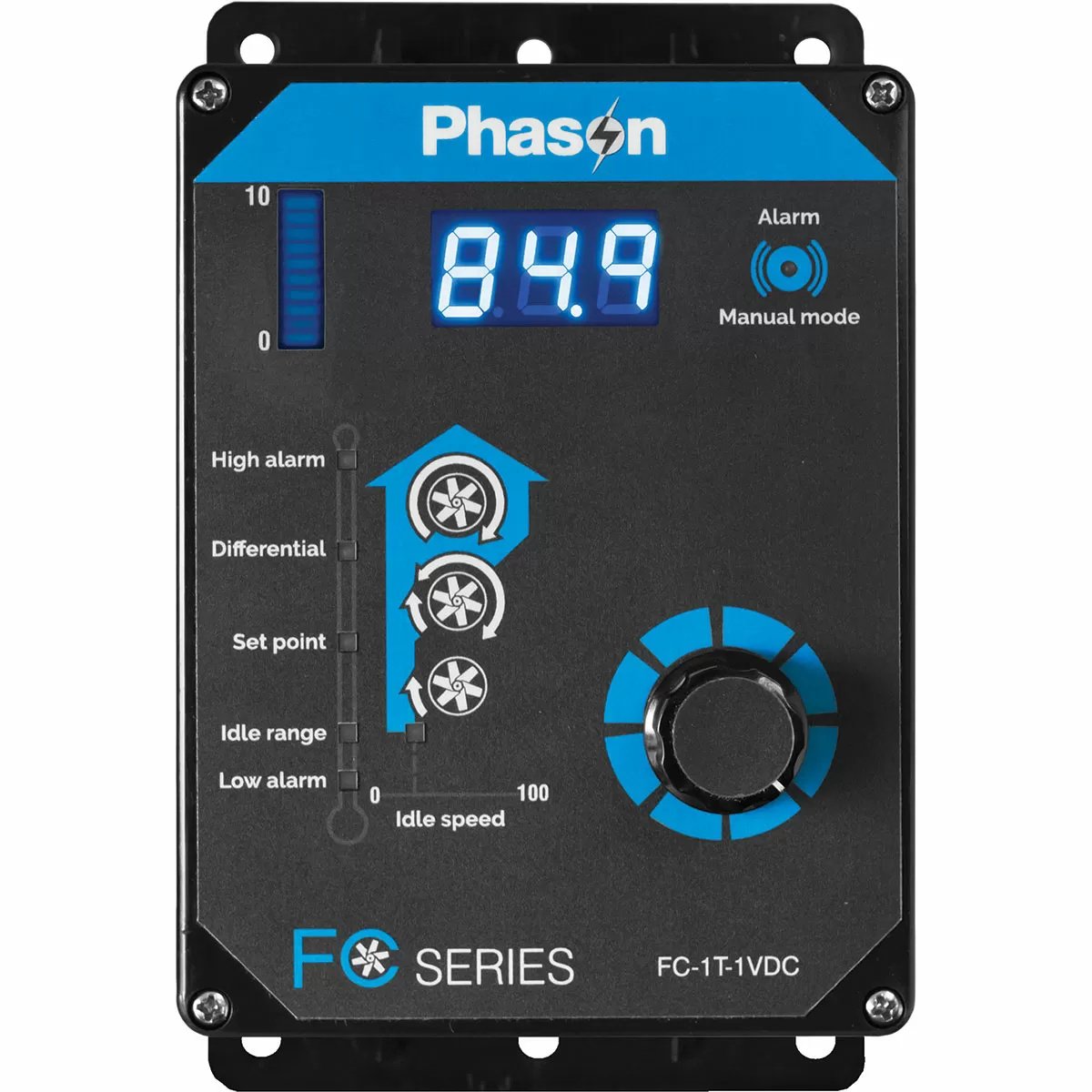

The display shows temperatures, signal output, programming information, and alarm codes. The indicator lights show which settings you are editing. The knob allows you to move between and adjust settings.

Features

• Automatic temperature-based control, range: 32 to 99°F
• One variable 0 to 10 VDC output
• One disconnect relay
• Alarm relay for an external alarm system or siren
• Three-second full-power-turn-on for minimizing fan ice-up
• Three-character LED display
• Status and programming LEDs
• Alarm code display
• Customizable alarm settings
• Power-failure settings protection
• Six-foot temperature probe, extendable to 500 feet
• Corrosion, water and fire resistant
• cCSAus Approval
• Two-year limited warranty

Electrical ratings

• Input: 120/230 VAC, 50/60 Hz
• Variable DC 0 to 10 VDC, 2K Ω load
• Disconnect relay: 5 A at 250 VAC, 5 A at 30 VDC, resistive load. 2 A at 250 VAC, 2 A at 30 VDC, inductive load.
• Alarm relay: 0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load. 0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load
