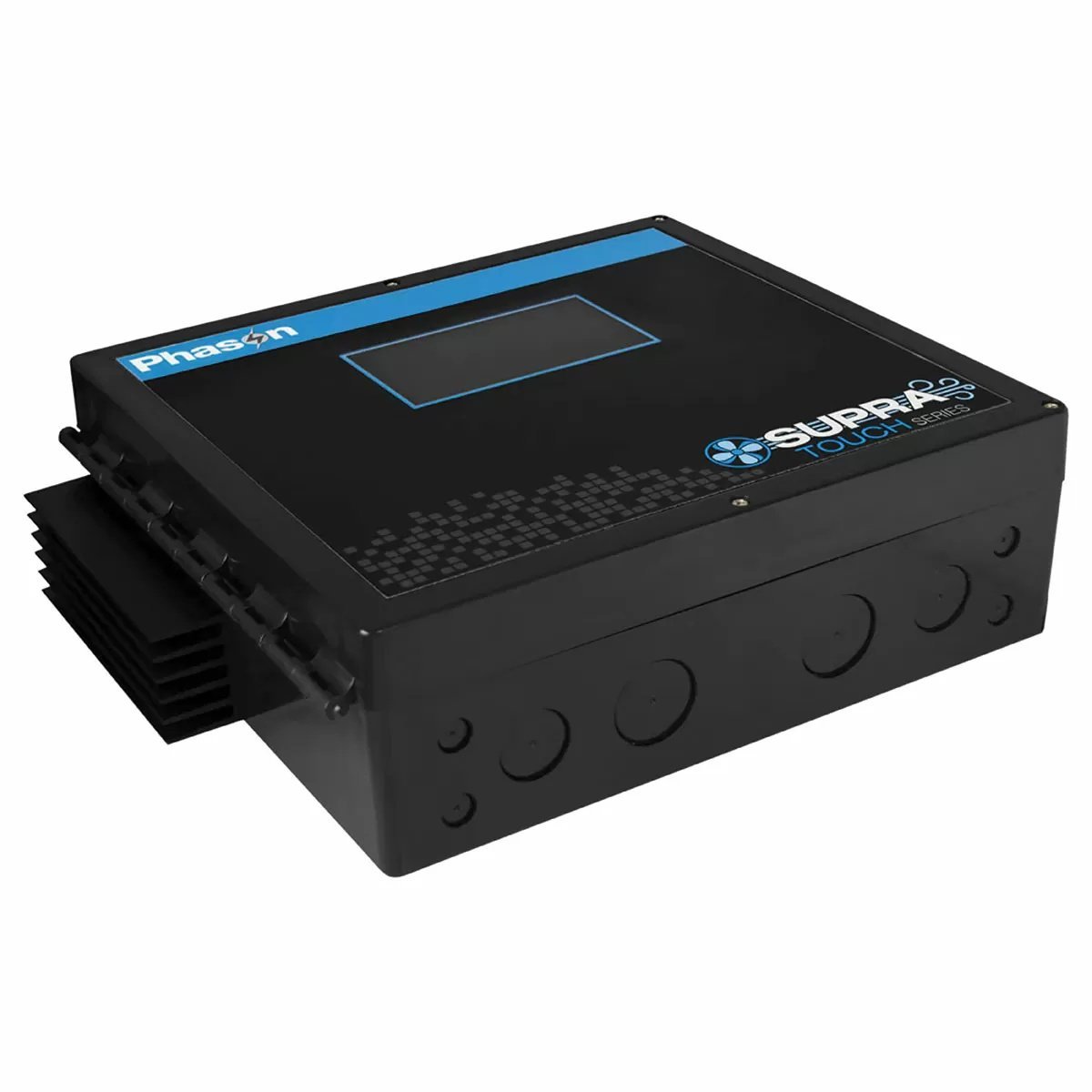

The Phason Supra-Touch is an easy-to-use climate controller for up to four independent zones. It monitors temperature, humidity, ammonia, carbon dioxide, and more and uses its finding to to influence how it controls equipment. For example, if the humidity is too high, it can switch heaters on or increase ventilation to reduce it.

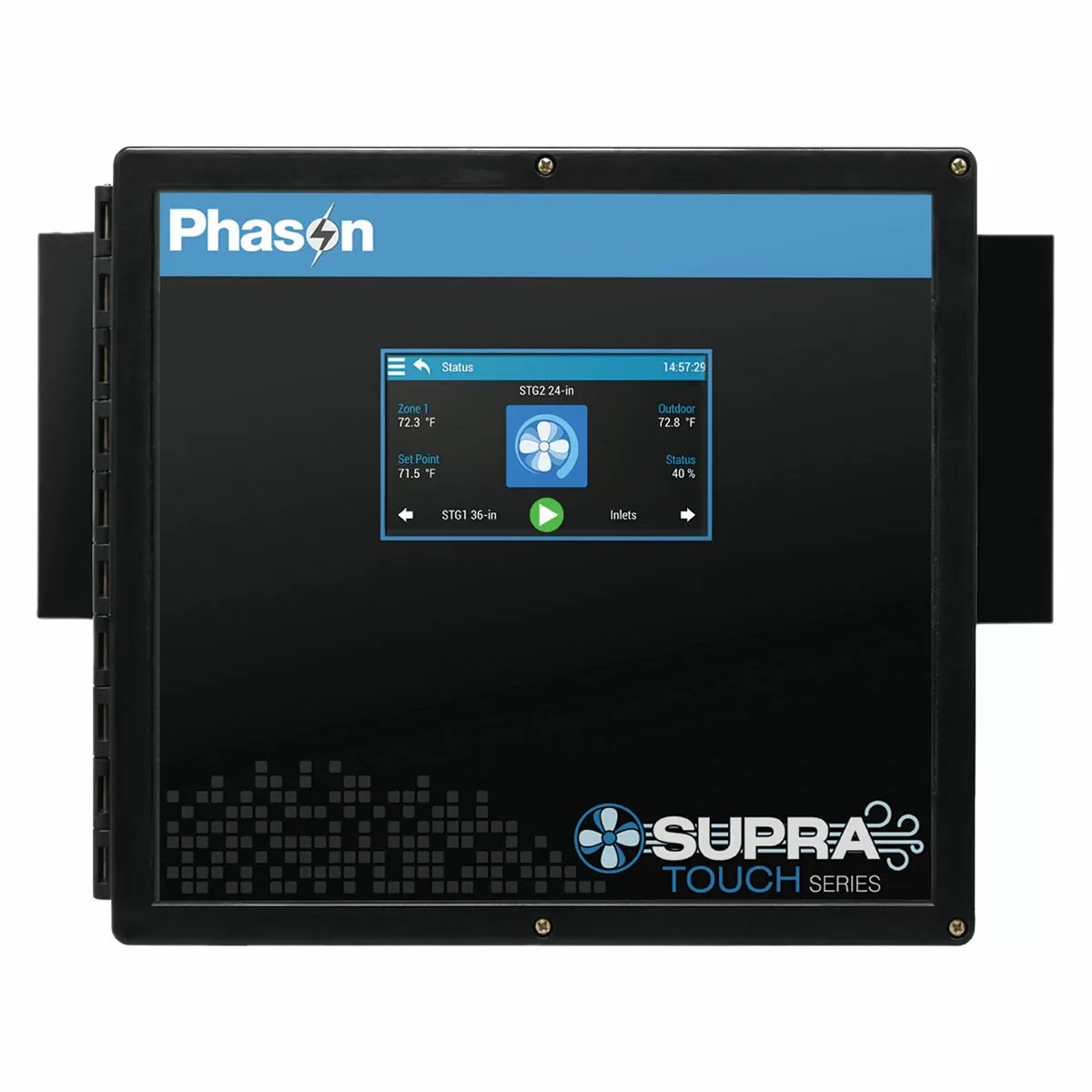

Supra Touch has an uncomplicated, intuitive icon-based display paired with a 5-inch touchscreen, making it quick and easy to navigate and program.

In addition to traditional staged control, Supra Touch offers VentGrid merged ventilation. Merged mode provides optimized ventilation control with smooth transitions.

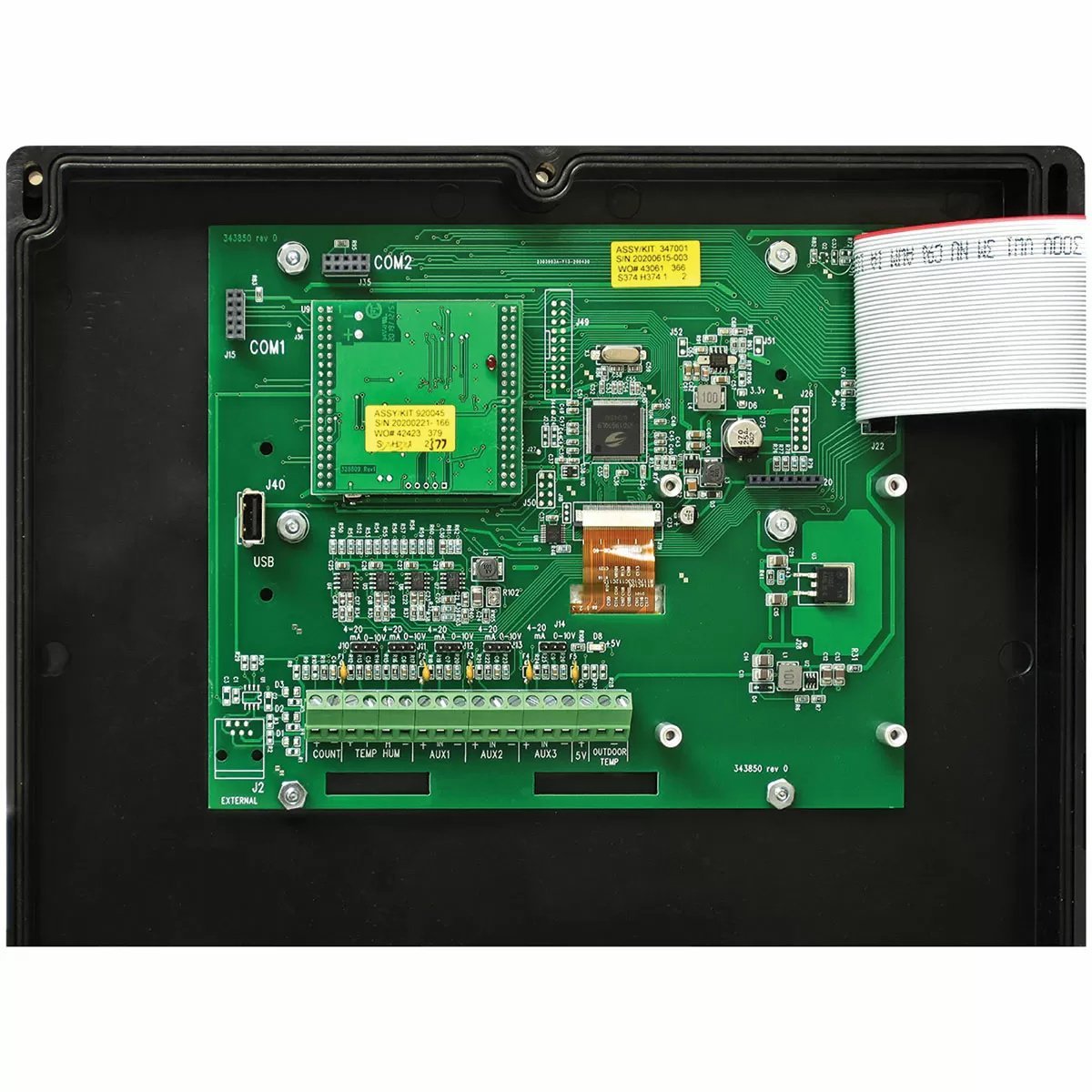

Supra Touch is easy to install by providing ample room for wiring, the ability to override temperature readings to test equipment, and built in diagnostics for troubleshooting.

Features

• 5-inch touchscreen with an uncomplicated, intuitive icon-based display
• VentGrid™ merged ventilation provides optimized ventilation control with smooth transitions
• Monitors temperature, humidity, ammonia, carbon dioxide to influence how it controls equipment

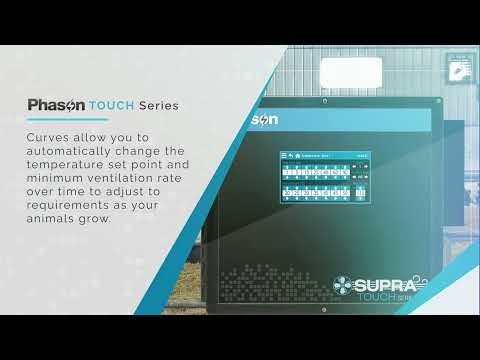

• Growth Curves allow you to change the temperature and ventilation as your animals grow
• Simple installation
• Two-year manufacturer's warranty

Ratings

• Incoming power: 120/230 VAC, 50/60 Hz
• Variable AC stages
  • 10 A at 120/230 VAC, general-purpose (resistive)
  • 7 FLA at 120/230 VAC, PSC motor
  • 1/2 HP at 120 VAC, 1 HP at 230 VAC, PSC motor
• Variable AC stage fuses
  • 15A, 250 VAC ABC-type ceramic
• Relay stages
  • 10 A at 120/230 VAC, general-purpose (resistive)
  • 1/3 HP at 120 VAC, 1/2 HP at 230 VAC
  • 360 W tungsten at 120 VAC
• Alarm relay
  • 0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load
  • 0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load
