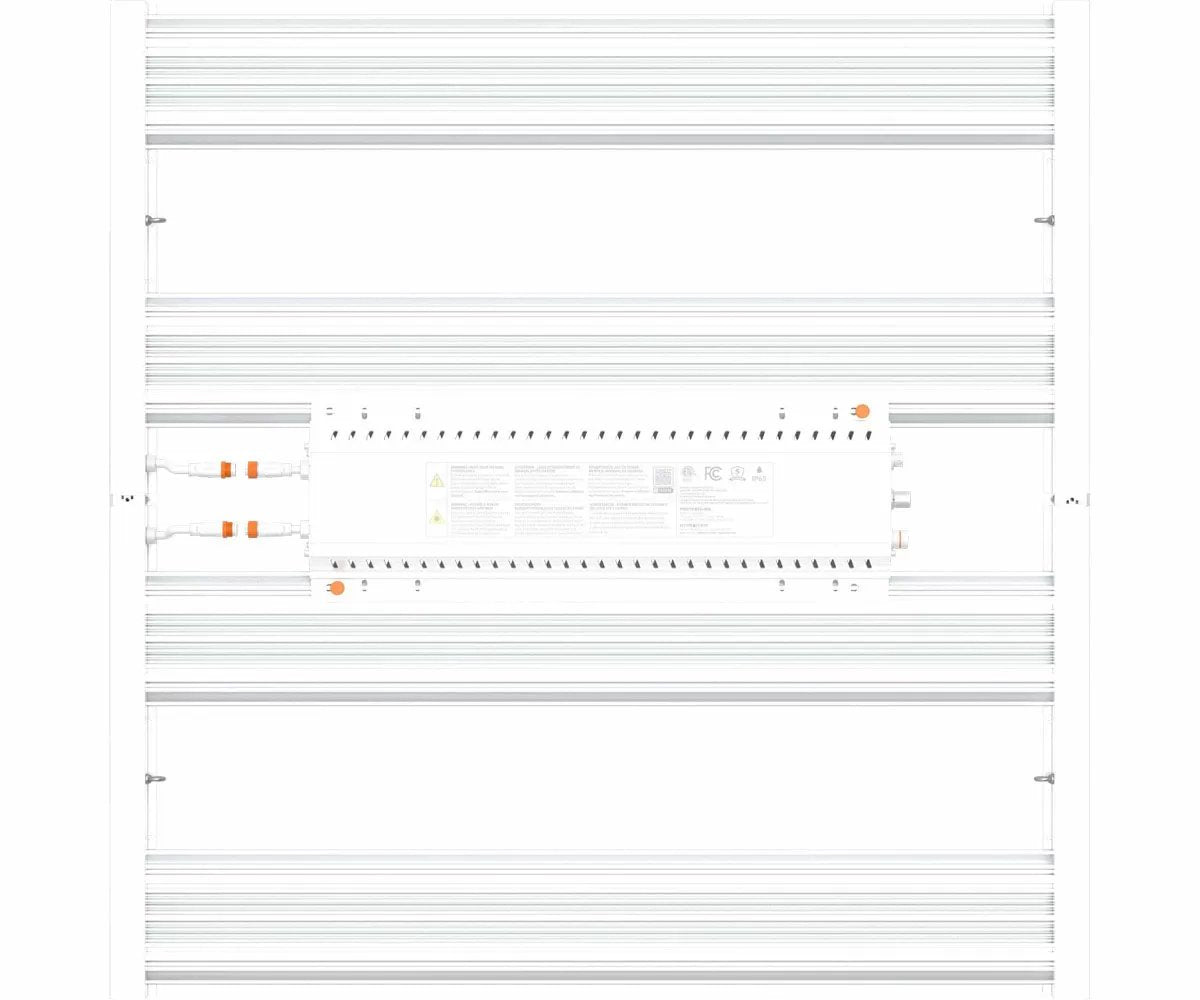

The PHOTOBIO MX LED, 680 Watt, 100-277 Volt is a light fixture for serious horticultural professionals who are looking to reduce power consumption while improving crop performance and yield. The PHOTOBIO MX delivers 15% more light to your canopy while using 35% less power than a 1000W DE fixture. Increase yields while driving down operational costs.

PHOTOBIO•MX uses a more efficient contiguous circuit board to deliver unparalleled PPFD uniformity to the canopy. Thermal modeling and testing was conducted to ensure diodes remain below the operating temperature to maintain consistent light output and yields. 0-10V PHOTO•LOC Light Output Control allows you to precisely regulate the amount of light delivered to your plant canopy.

The iLOC Integrated Light Output Control on board dimming knob allows the grower to adjust the photon output intensity to accommodate the various stages of plant growth for optimal photosynthesis activation. With the knob adjusted to 100% using 240V, the MX uses 664W and puts out 1700 μmol/s photon flux (PPF). With the knob adjusted to 40%, the MX uses 270W and puts out 40% of the photon flux.  The high-efficiency S4 spectrum does not change when using the dimmer knob and still provides the ideal red to blue ratio for vigorous growth and maximized flower development.

PHOTOBIO•MX design is multilayer rack centric, providing the ability to double or triple your canopy square footage within your existing structures footprint. The driver is mounted below the fixture to maximize vertical grow space and has the ability to be remotely mounted.

PHOTOBIO•MX   The PHOTOBIO•MX is also a qualified product listed with DLC, which makes the fixture eligible for energy rebates for further cost savings while also saving significant energy while optimizing plant growth and health.

FEATURES:

• 1768 umol/s Photon Flux @ 277V
• 2.6 µmol/J Efficacy @ 277V
• iLOC Integrated Light Output Control allows manual adjustment of light output
• Dim Settings are 40%-55%-70%-85%-100%-PX Control
• Precisely control photon output when paired with Autopilot PX series controller (PX2 and above)
• Slim design maximizes vertical growing space with a remote capable driver
• Robust commercial design keeps LEDs running cool
• Auto adjusting 100-277V driver input range
• IP65 rated protection against water and dust
• Includes PHOTO•LOC DC signal cable
• Includes AC power cable
• DLC listed (H-RR6RGRH) and qualifies for utility rebates, which play a significant role in optimizing the cost-effectiveness of a lighting project

Specs

• Average life hours: 50,000
• Frequency: 50/60
• Rated Wattage: 680
• Weight: 47.5 LBS
• Width: 44"
• Length: 43.3"
• Height: 1.78"
• Voltage: 100-277

Registrations:

• CE_Registration
• ETL_Registration
• FCC_Registrations
• ROHS_Registraion
