Manufacturer Recommends Using the Quick-Sling Rafter Mount Heater Swivel Hanging System on Heaters Weighing LESS Than 200 lbs.

An easy way to install your Modine® heater, the innovative Quick-Sling Flush Mount Swivel Heater Hanging System, Model QSWI-3000, cuts down the installation time by as much as 90%.

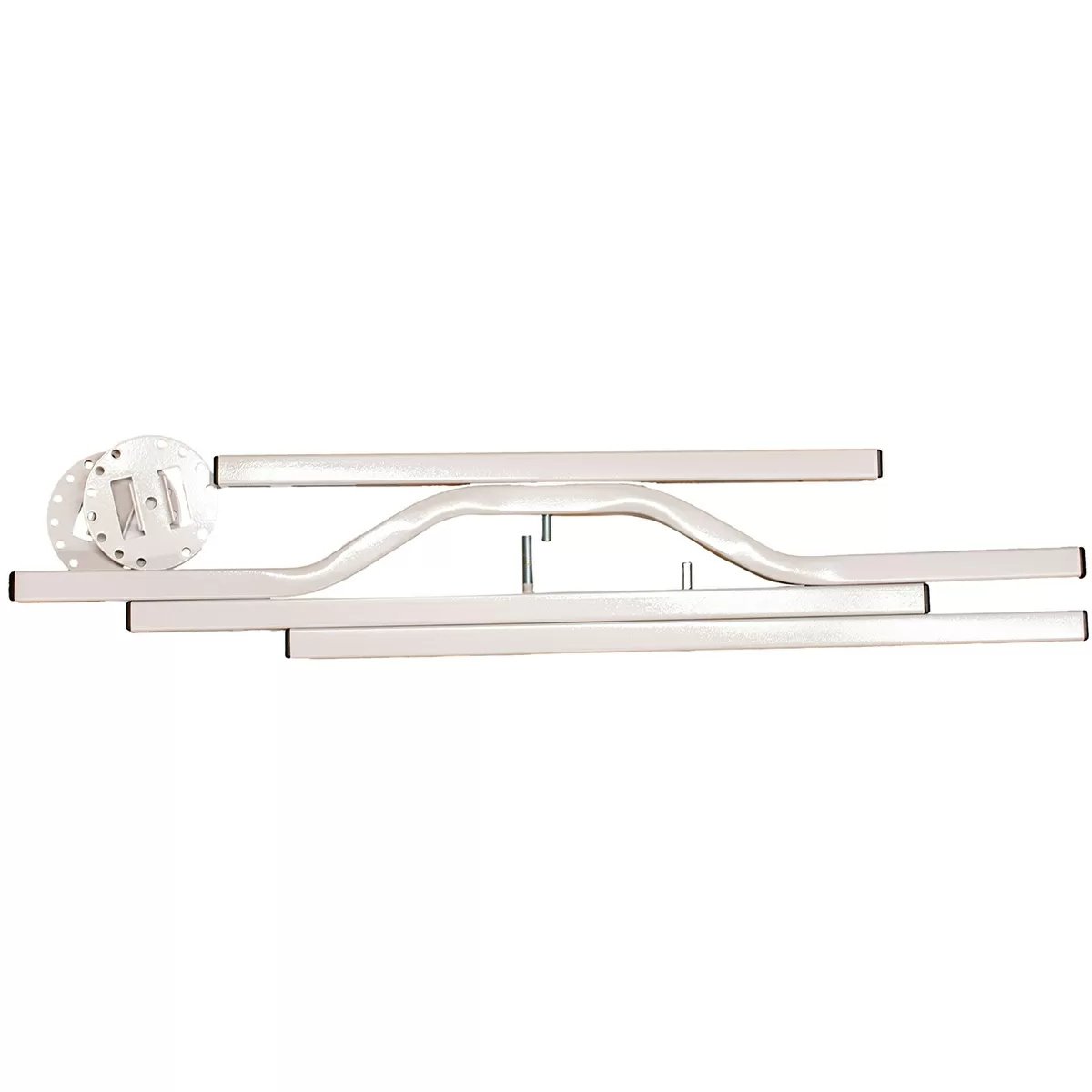

Tested to hold over 500 lbs., this flush mount system is made of durable, powered-coated metal to provide a long-term stable platform. Includes an innovative swivel-locking wheel, safety hitch clips, locknuts and lock-washers for mounting bracket hardware.

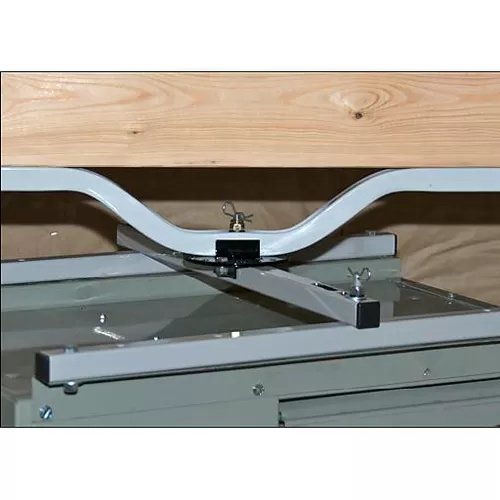

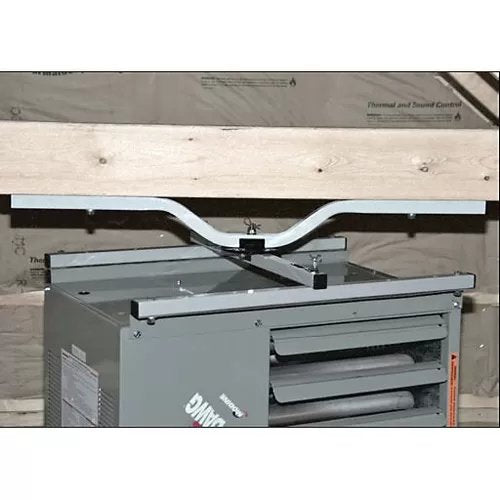

This system is out of the box and installed with a heater in under 5 minutes. All of the installation hardware is included - it comes with pressed-in-stud technology for easy handling, assembly and installation. The unit mounts either parallel with the ceiling joist or straddles two joists either 24" or 32" on center.

This is the only hanging system on the market that allows for 360° of unit rotation. This feature creates directional output accuracy and total flexibility with fuel source and venting requirements. Once connected, the unit locks in place for safety, but offers complete unit access for downstream service by simply unlocking the swivel wheel. Fits nearly all of the unit heaters on the market today (from 18.5" wide to 20.75" wide and 25" long to 27.75" long). Use Quick-Sling Swivels for a consistent, professional look for every installation.

Proudly Made in America!

Shipping Dimensions: 34.5" L x 12" W x 3.5" H
Shipping Weight: 12 lbs.

Compatible with the following Modine® Heater Models:

• Hot Dawg® 30-125 - Model HD, QC Part #20855 & Hot Dawg® Model HDS, QC Part #20840
• PTS150, PTS175
• BTS150, BTS175
