Manufacturer Recommends Using the Quick-Sling Rafter Mount Heater Swivel Hanging System on Heaters Weighing LESS Than 200 lbs.

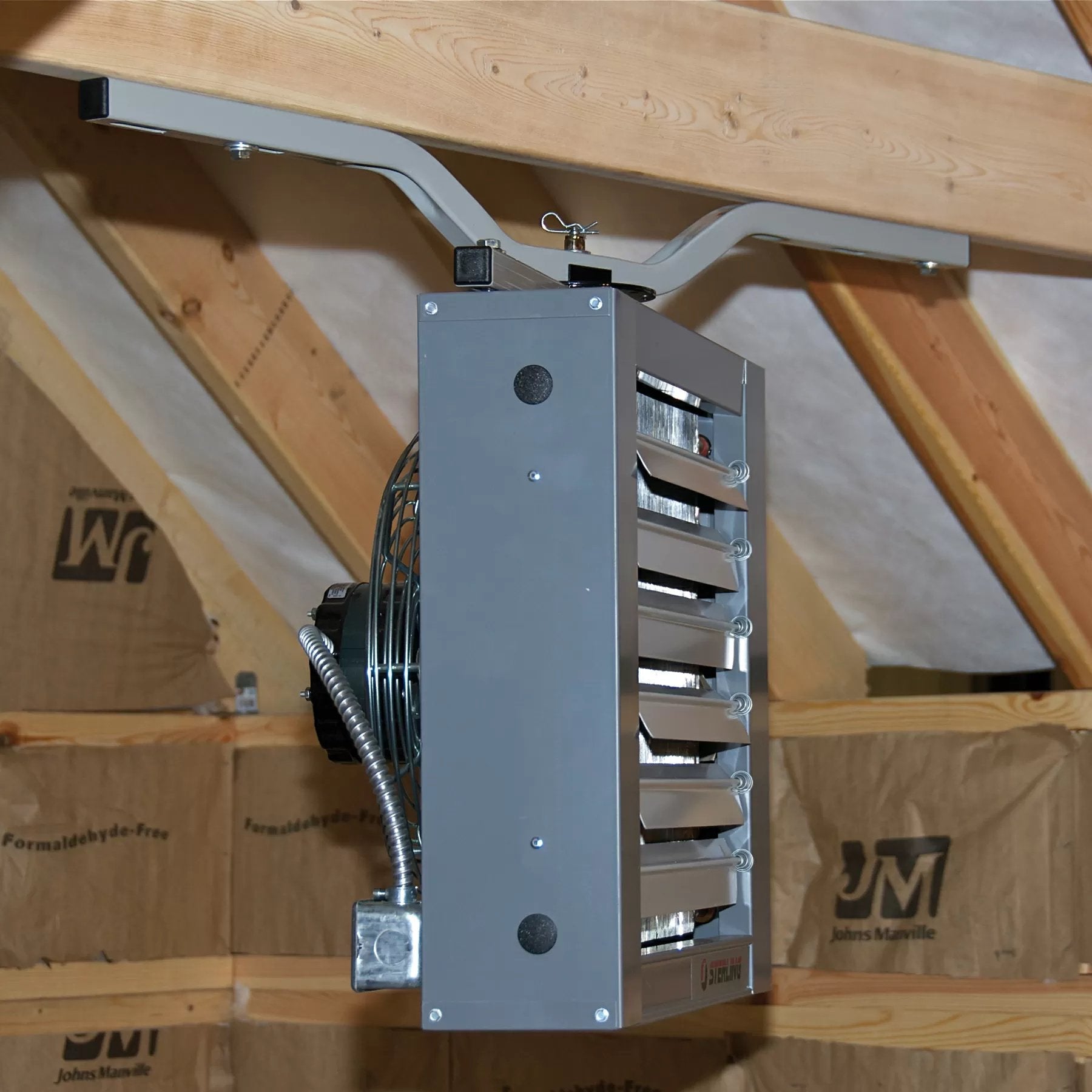

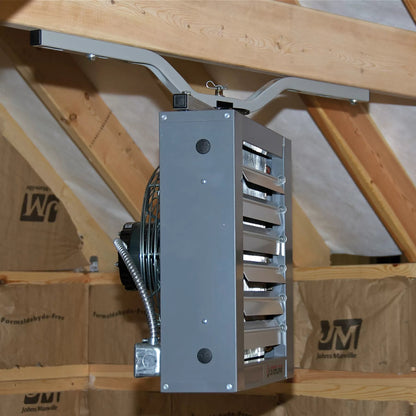

(Model QSWI-4000) Mount your unit heater flush with a rafter with this Quick-Sling Flush Heater Mount with I-Bracket. It will mount parallel to the joist or across joists at 24" or 32" on center. This mount allows for 360-degree rotation and direct flow of heat for maximum efficiency. Locks in place after installation for safety. Anti-vibration grommets and hardware included. Manufactured in America — all fabricating, powder coating, assembling, packaging, shipping and warehousing are done in Massachusetts.

Features:

• 14-gauge steel construction
• Four-piece construction
• All open ends are fitted with plastic push-in end caps
• Flush mount parallel or perpendicular to ceiling joists
• Arm swivels 360° and locks into position

Safety: Includes innovative swivel locking wheel, through-bolt technology, anti-vibration isolation, safety hitch clips, locknuts and lock-washers for mounting bracket hardware.

Quick & Efficient: Out of the box and installed with a unit in under 5 minutes. All installation hardware included - comes in pre-assembled sections with pressed-in stud technology for easy handling, assembly and installation. Unit mounts either parallel with ceiling joist or straddles two joists 24" or 32" on center.

Exciting: Quick-Sling Swivel mounts are the only device on the market allowing for 360° unit rotation. This feature creates directional output accuracy and total flexibility with fuel source and venting requirements. Once connected, the unit locks in place for safety while offering complete unit access.

Shipping Dimensions: 34.5" x 12" x 3.5"
Shipping Weight: 8 lbs.

Compatible with the following Modine® Heater Models:

• PDP150, PDP175 (#20700)
• HER50 - HER250 (#21100 - #21126)
• BDP150, BDP175
