Manufacturer Recommends Using the Quick-Sling Rafter Mount Heater Swivel Hanging System on Heaters Weighing LESS Than 200 lbs.

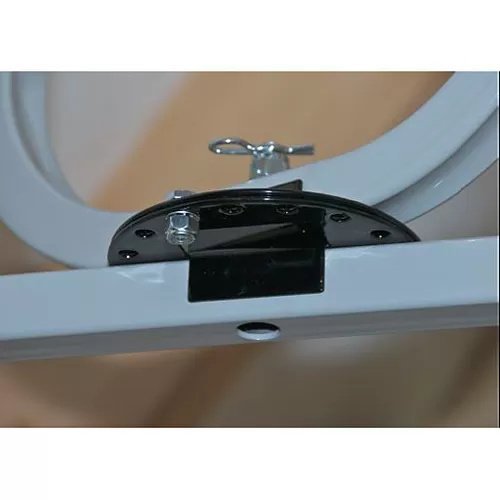

(Model QSWI-1000) The innovative Quick-Sling Rafter Mount Swivel Heater Hanging System saves you time and money when installing unit heaters. This flush mount system includes an innovative swivel locking wheel, through-bolt technology, anti-vibration isolation, safety hitch clips, locknuts and lock-washers for mounting bracket hardware. It was tested to hold over 500 lbs.

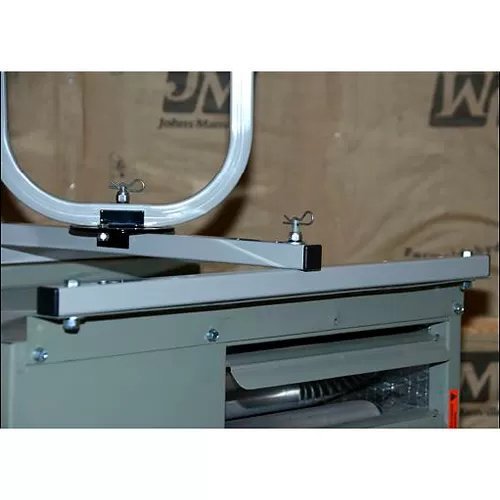

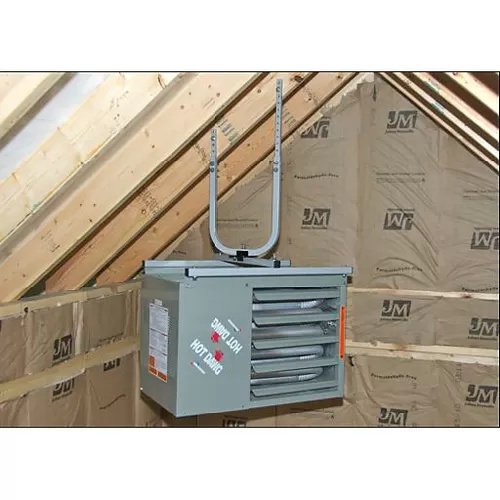

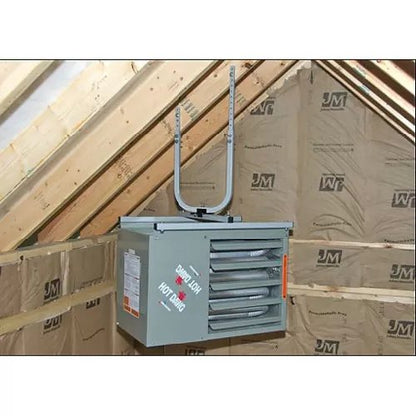

This system is out of the box and installed with a unit in under 5 minutes. All of the installation hardware is included — it comes with pressed-in-stud technology for easy handling, assembly and installation. The unit mounts either parallel with the ceiling joist or straddles two joists either 24" or 32" on center.

Installation time is cut by as much as 90%. No need to create your own unique hanging device from cut Unistrut and threaded rod. On single or multiple unit requirements, controlled installation time will make the difference in meeting or exceeding upfront job costing.

This is the only device on the market that allows for 360° of unit rotation. This feature creates directional output accuracy and total flexibility with fuel source and venting requirements. Once connected, the unit locks in place for safety, but offers complete unit access for downstream service by simply unlocking the swivel wheel. Fits nearly all of the unit heaters on the market today (from 18.5" wide to 20.75" wide and 25" long to 27.75" long).

Be proud of the professional appearance created by the Quick-Sling Swivel line. All have a durable powder coating, long-term stable platform, all to provide a consistent, professional look for every installation.

Proudly Made in America!

Shipping Dimensions: 34.5" L x 12" W x 3.5" H
Shipping Weight: 12 lbs.

Compatible with the following Modine® Heater Models:

• Hot Dawg® 30-125 - Model HD (#20855) & HDS (#20840)
• PTS150, PTS175
• BTS150, BTS175
