Manufacturer Recommends Using the Quick-Sling Rafter Mount Heater Swivel Hanging System on Heaters Weighing LESS Than 200 lbs.

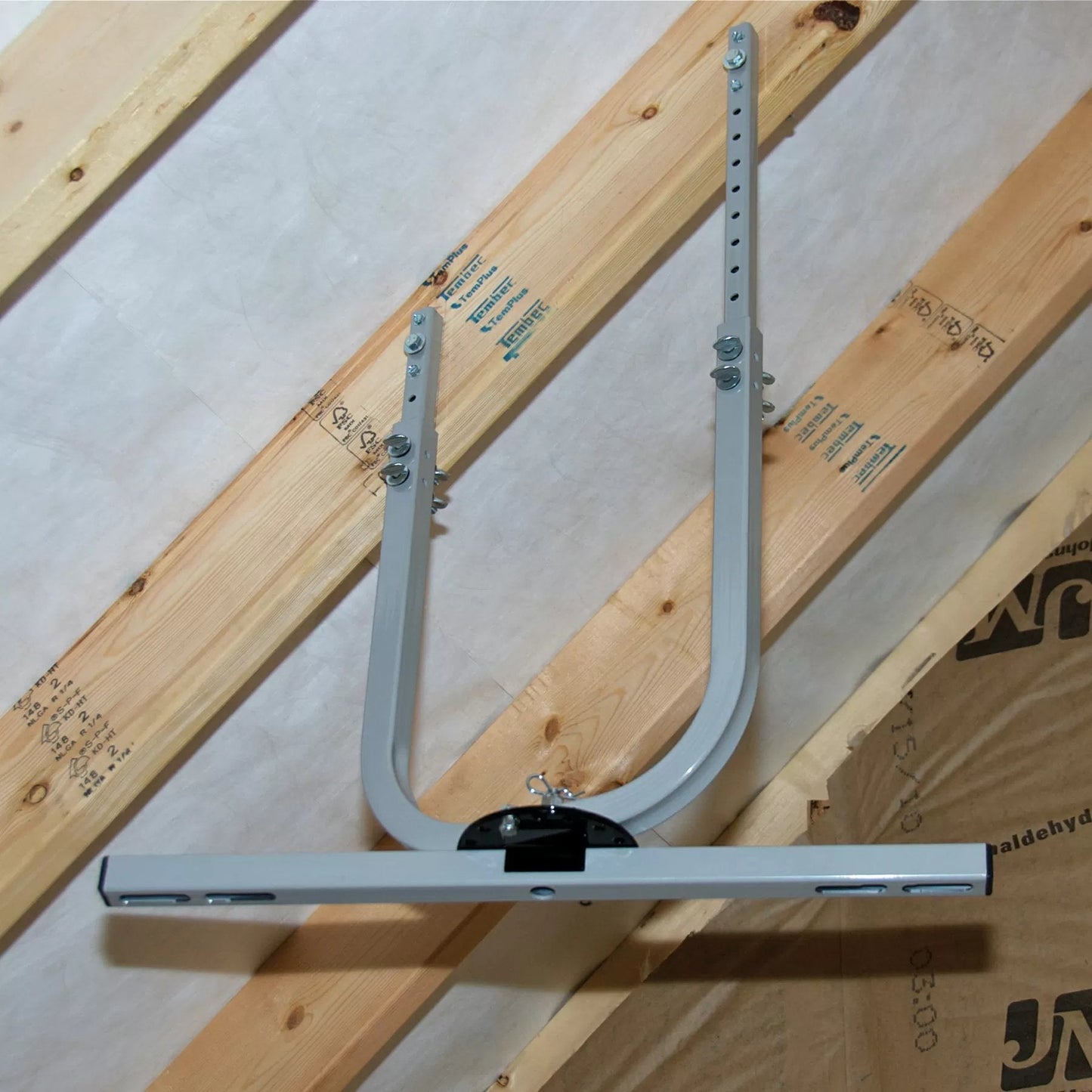

(Model QSWI-2000) Mount smaller heaters indoors with a Quick-Sling Rafter Mount with I-Bracket. This mount allows for 360° unit rotation and direct flow of heat for maximum efficiency. It provides total flexibility for adjustment when connecting to fuel source and venting pipe. Lock the location of the heater in place after installation for safety. Anti-vibration grommets and hardware are included. Manufactured in America — all fabricating, powder coating, assembling, packaging, shipping and warehousing are done in Massachusetts.

Features:

• Constructed with 14-gauge steel
• Holes on both faces of the U-Bar allow arms to rotate 90°
• All open ends are fitted with plastic push-in end caps
• Hanger arms are individually adjustable in 1" increments and can be rotated 90°
• Arm swivels 360° and locks into position

Safety: Includes innovative swivel locking wheel, through-bolt technology, anti-vibration isolation, safety hitch clips, locknuts and lock-washers for mounting bracket hardware.

Quick & Efficient: Out of the box and installed with a unit in under 5 minutes. All installation hardware included - comes in pre-assembled sections with pressed-in stud technology for easy handling, assembly and installation.

Exciting: Quick-Sling Swivel mounts are the only device on the market allowing for 360° unit rotation. This feature creates directional output accuracy and total flexibility with fuel source and venting requirements. Once connected, the unit locks in place for safety while offering complete unit access.

Shipping Dimensions: 34.5" L x 12" W x 3.5" H
Shipping Weight: 8 lbs.

Compatible with the following Modine® Heater Models:

• PDP150, PDP175 (#20700)
• HER50 - HER250 (#21100 - #21126)
• BDP150, BDP175
