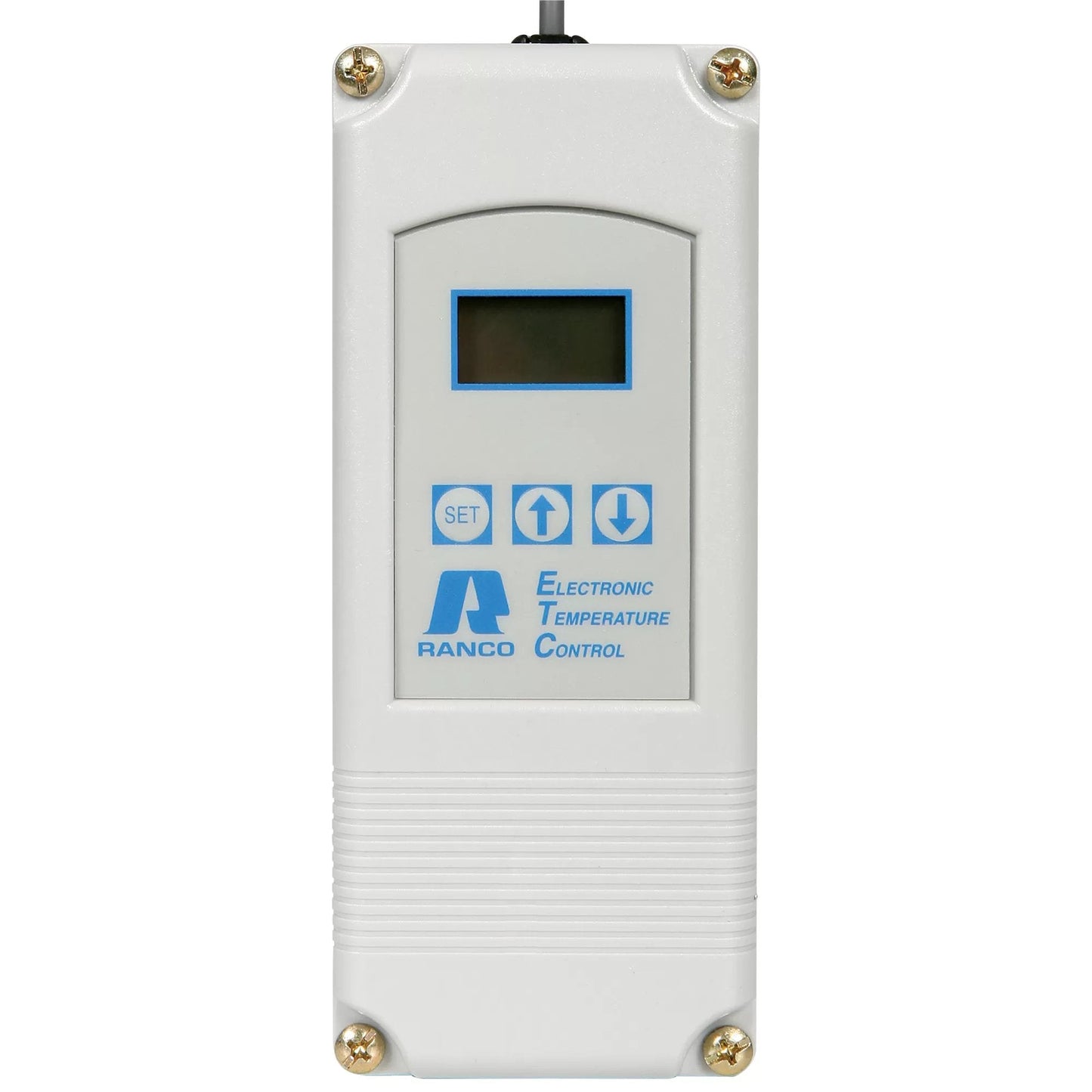

This Ranco Digital Thermostat NEMA 1X is an electronic temperature control designed to provide on/off control of heating, ventilating, air conditioning, and refrigeration equipment. The unit constantly displays the current temperature and a touch of the keypad will display the set point temperature.

Features/Specifications

• Lockout switch to prevent tampering by unauthorized personnel
• NEMA 1X box
• 8' temperature probe
• Fahrenheit/Celsius
• Full Load Single Stage: 16 Amp/120 Volt; 8 Amp/208/240 Volt
• Full Load 2-Stage: 9.8 Amp/120 Volt; 4 Amp/208/240 Volt
• Locked rotor amps: 96/120 Volt; 48/208/24 Volt Amp
• Resistive amps: 15/120 Volt; 8/208/240 Volts
• Temperature Range: -30° F to 220° F
• Differential Range: 1° F - 30° F
• Input Voltage: 120VAC, 208, 240VAC
• Pilot duty: 125VA at 120/208/240VAC
• Horsepower: 1/120 Volts; 1/208/240 Volts
• Dimensions: 6.52" H x 2.7" W x 2.48" D
• Weight: 1.5 lbs
