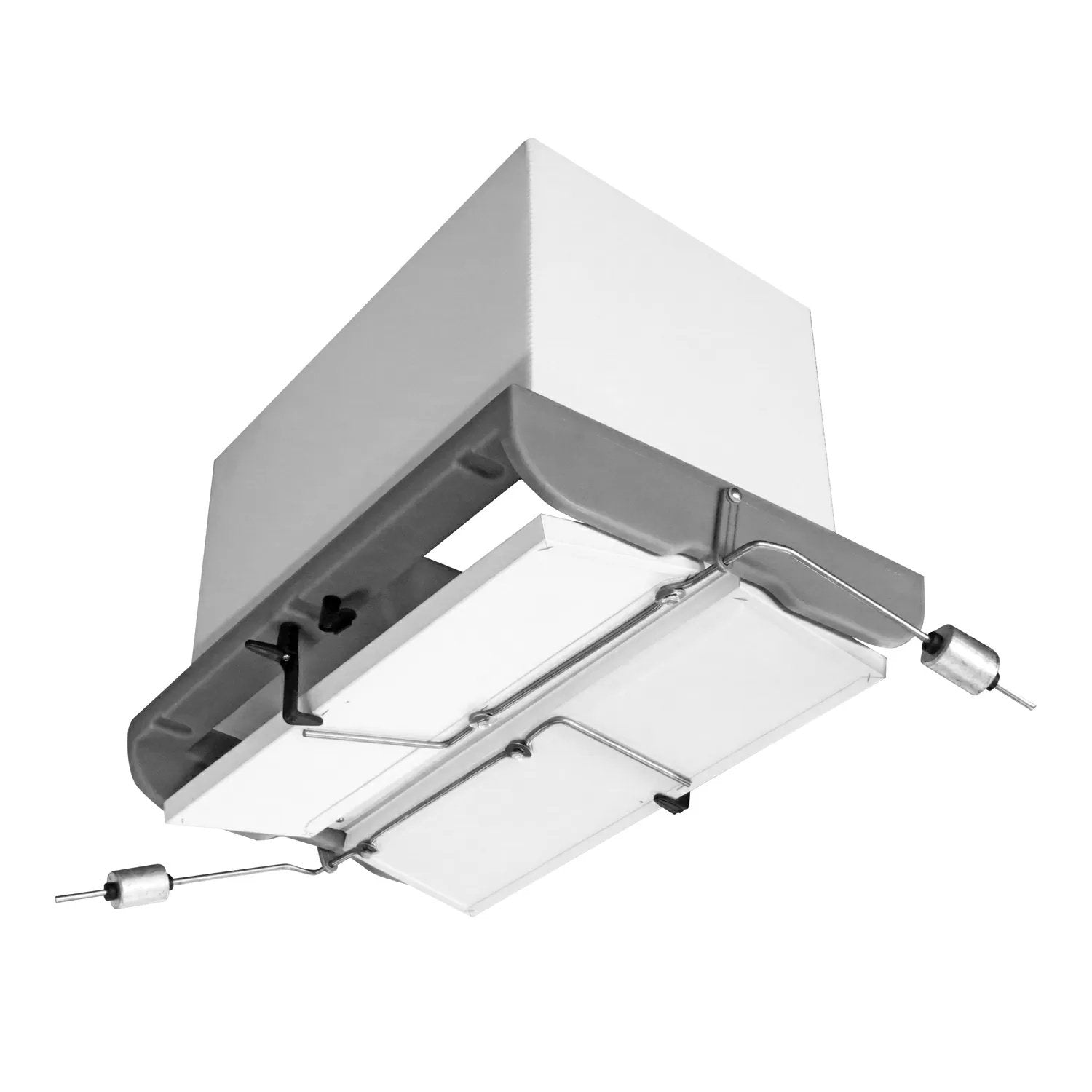

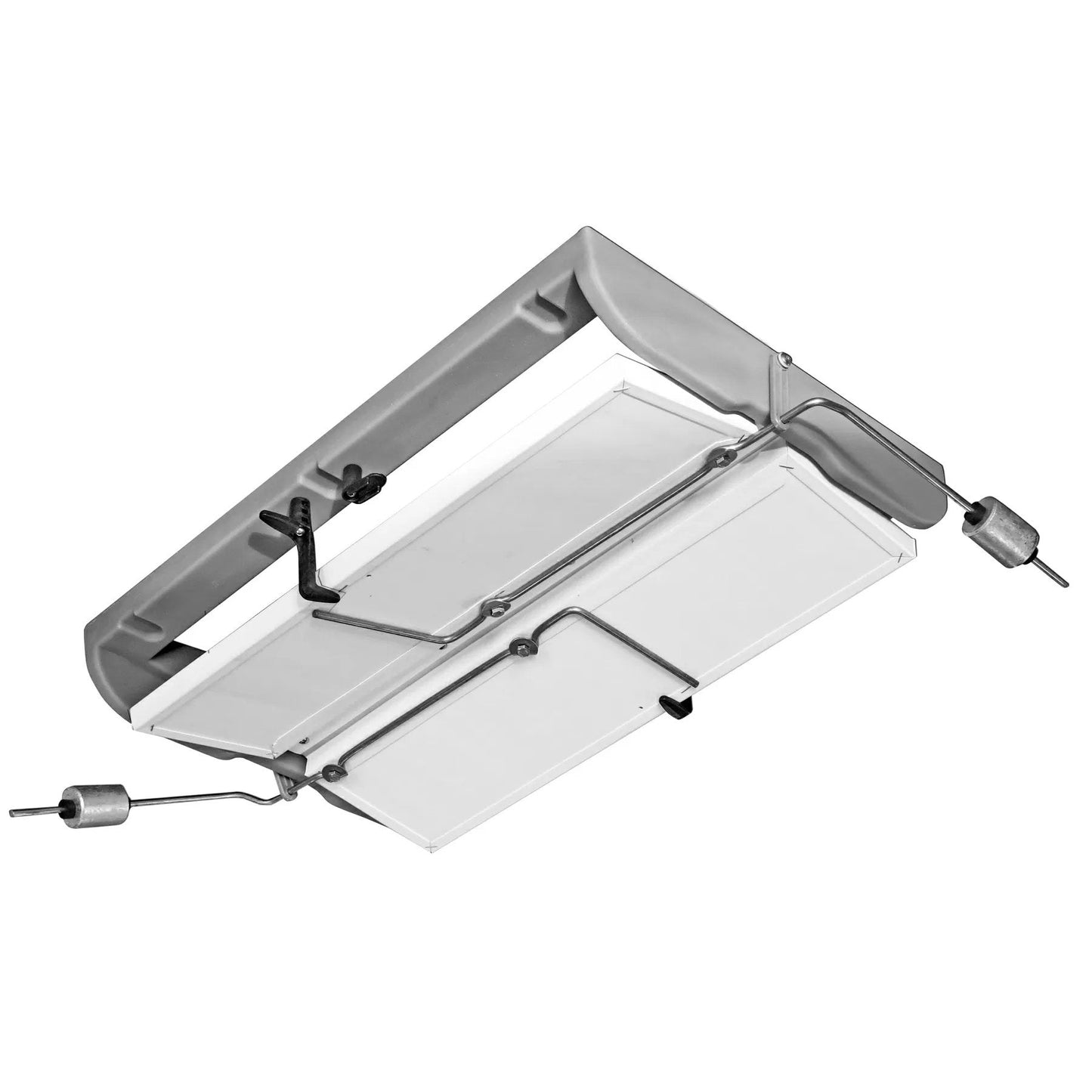

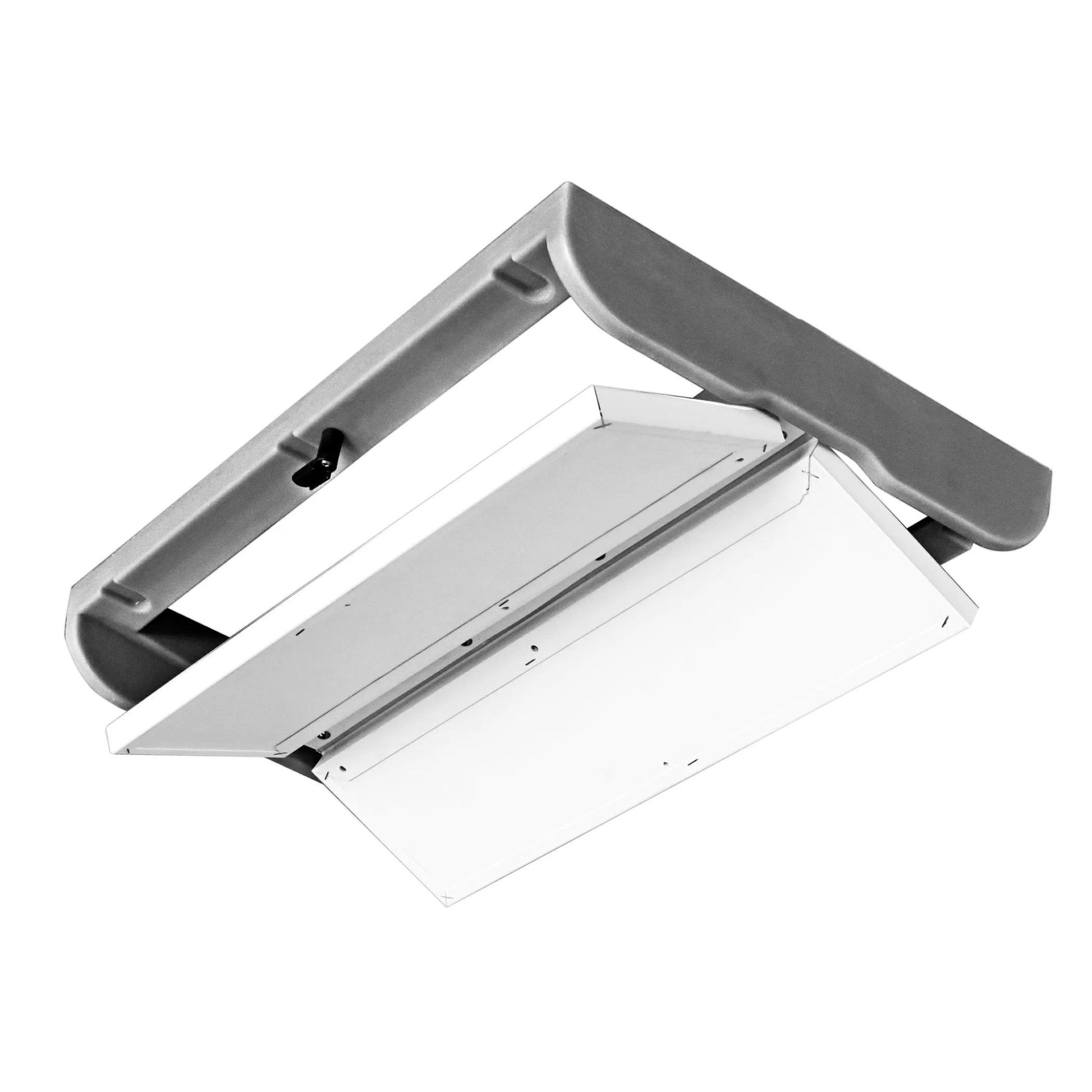

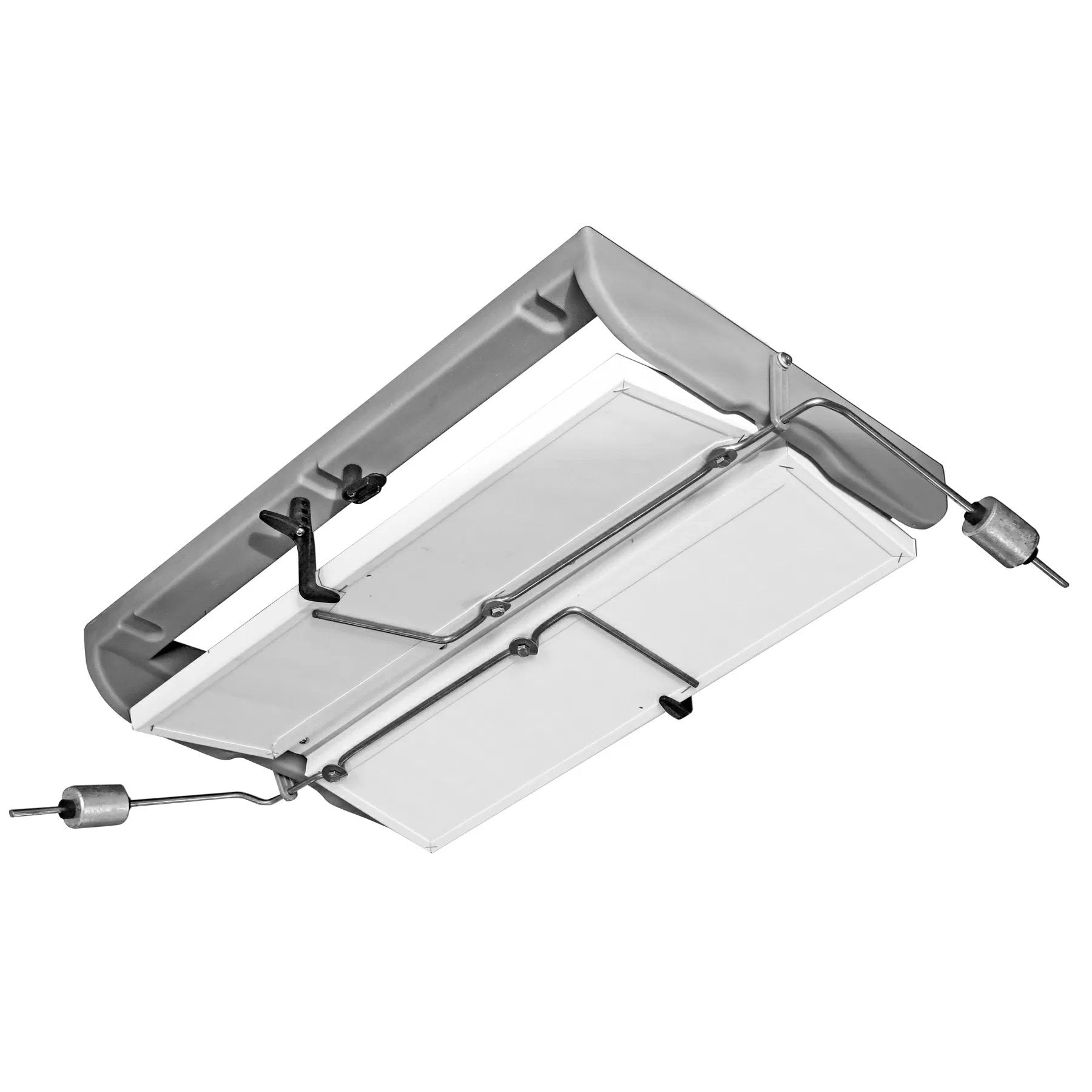

More about RD1200 Actuated & Counterweighted TwoWay Insulated Inlets
RD1200 Two-Way Insulated Inlet is great for precise control of air movement. Designed to withstand harsh environments and cold weather conditions. Available actuated or counterweighted; both available with or without an attic sleeve.
- Withstands harsh environments and cold weather conditions
- Great for minimum to maximum ventilation for precise control of air movement
- Direct air along ceiling for proper air mixing
- Constructed of a single piece, corrosion-resistant, rotomolded housing with 1" thick, fully insulated lids to minimize condensation, dripping and inlet freeze-up
- Frictionless styrofoam PVC covered lids on a continuous PVC hinge swing down to allow clean attic air into main room
- When lids are closed, inlet is fully sealed against air leakage and light
QC Part # | Model # | Mfg Part # | Type | CFM @0.5 SP | Rough Opening W x H |
---|---|---|---|---|---|
11440-A | JD2600 | 90840 | Actuated | 2,400 CFM | 29" x 24.5" |
11440-CW | JD2600 | 90841 | Counterweighted | 2,400 CFM | 29" x 24.5" |
111441-A | JD2900 | 90837 | Actuated | 2,490 CFM | 27.5" x 24.5" |
11441-CW | JD2900 | 90836 | Counterweighted | 2,490 CFM | 27.5" x 24.5" |
11430 | RD1200 | 90810 | Actuated | 1,200 CFM | 23" x 14" |
11432 | RD1200 | 90809 | Counterweighted | 1,200 CFM | 23" x 14" |
11433 | RD1200 | 90809 | Counterweighted w/Attic Sleeve | 1,200 CFM | 23" x 14" |
11438 | RD2400 | 90814 | Actuated | 2,400 CFM | 34" x 18.5" |
11437 | RD2400 | 90814 | Actuated w/Attic Sleeve | 2,400 CFM | 34" x 18.5" |
11435 | RD2400 | 90813 | Counterweighted | 2,400 CFM | 34" x 18.5" |
11436 | RD2400 | 90813 | Counterweighted w/Attic Sleeve | 2,400 CFM | 34" x 18.5" |
