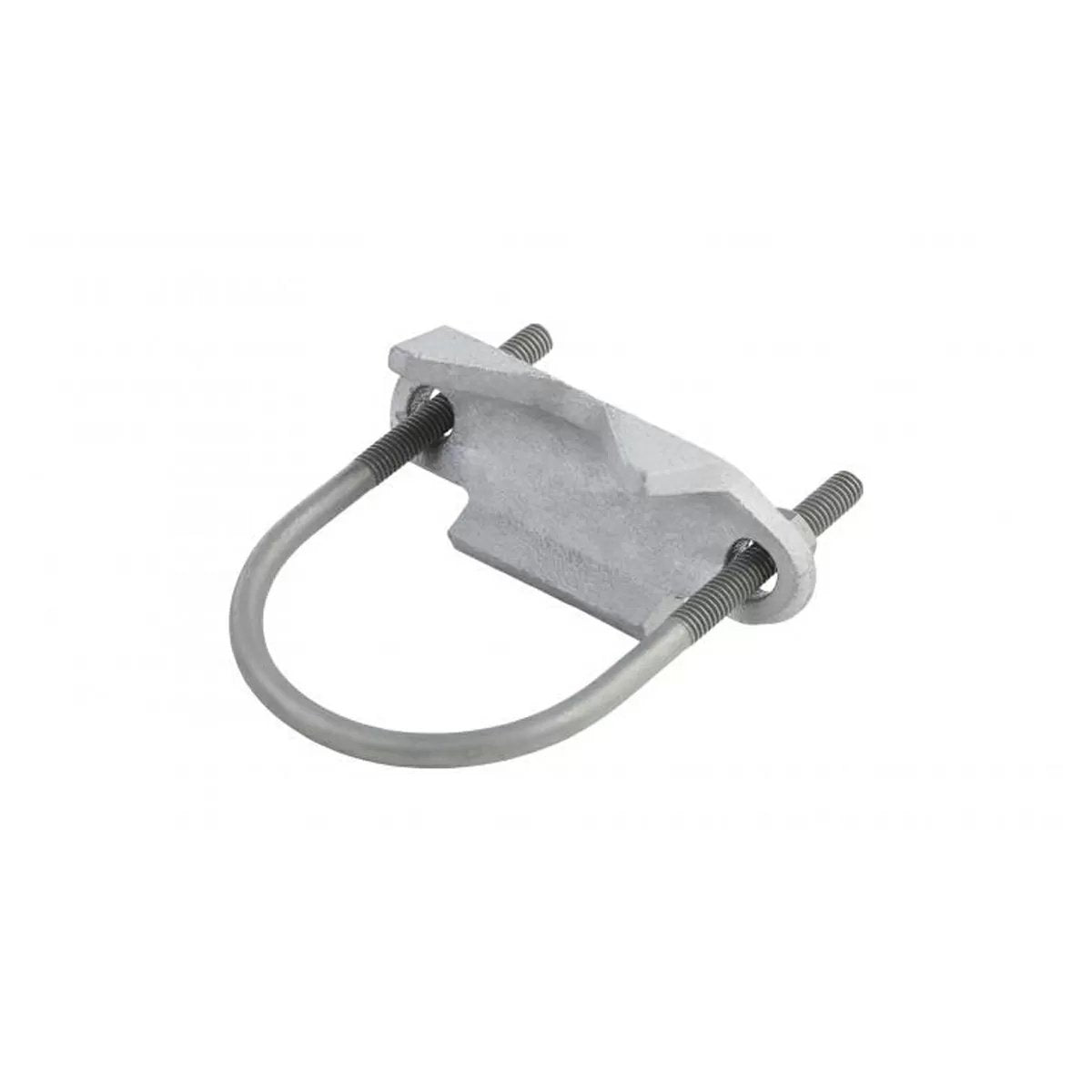

Right Angle Clamp - 1-1/2" is designed to secure Galvanized Rigid Conduit (GRC), Intermediate Metal Conduit (IMC), or Electric Metallic Tube (EMT) conduit across or parallel to the beam, channel and angle supports.

Features

• Designed to secure GRC, IMC, or EMT perpendicular to beam, channel & angle supports
• Two hex nuts
• RoHS compliant
• Trade Size 1-1/2"
• Finish: Hot-dip galvanized
• Material: Malleable Iron
• Standard Materials: Malleable Iron
• Standard Materials: Steel U-Bolts & Nuts
• Standard Finish: Right Angle Clamp Hot-Dip Galvanized
• Standard Finish: U-Bolt-Mechanically Galvanized

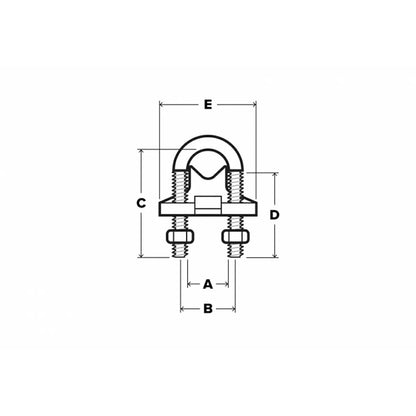

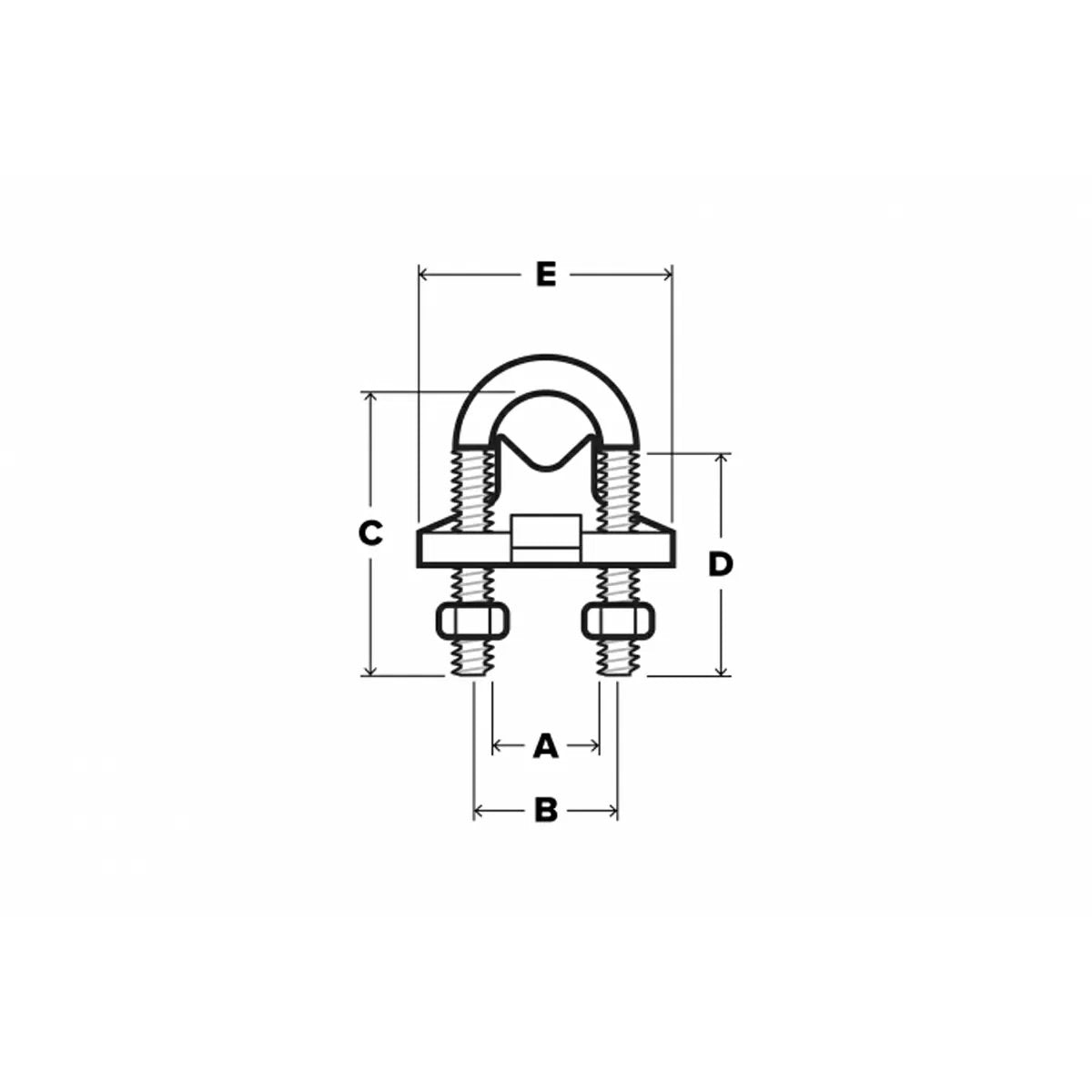

Dimensions

• Dimension A: 1-3/8"
• Dimension B: 1-5/8"
• Dimension C: 3-1/16"
• Dimension D: 1-13/16"
• Dimension E: 2-9/16"
