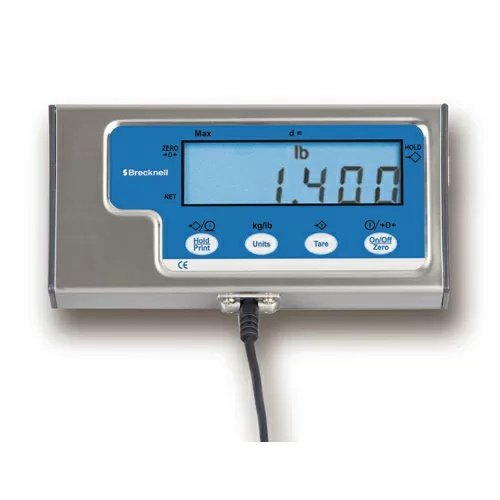

The easy-to-use Salter Brecknell SBI-140 Indicator can be used in a variety of applications. Housed in a stainless steel/ABS case, this compact indicator comes with a mounting bracket that makes it ideal for wall or bench mounting. It has an easy-to-read, five-digit 0.625" high LCD screen to ensure accurate readings.

Other Features

• Full duplex RS-232 output for printer etc. is standard
• Comes standard with NCI protocol
• Interfaces to most common shipping software, including UPS™, Worldship Online & FedEx®
• Keyboard Features: on/off, tare (100% subtractive) kg/lb switching (decimal lbs and lbs and oz) & hold
• Hold feature enables weight to be displayed even after the item is removed from the platform
• Auto zero tracking is standard
• Auto-off to increase battery life; switches itself off after 2 minutes of inactivity
• Front panel calibration makes the indicator easy to install and calibrate

Specifications

• Capabilities: Drives up to 4 loadcells
• Connection: 7.7" cable fixed to indicator with connector. Additional 16.4' pigtail cable with a connector that attaches to the indicator connector
• Dimension: 6.5" L x 3.2" W x 1.2" H
• Display: 0.625" high LCD
• RS-232: Supplied complete with a 10' cable (9 pin to 9 pin type connector, bi-directional full-duplex)
• Keyboard: On/Off/Zero, Tare, Units (lb/kg), Hold
• Calibration: Front panel accessible
• Units: lb, kg, lb/oz
• Power: [4] "AAA" batteries, AC power adapter - both included
• Battery Life: Approximately 20 hrs, continuous
• Operating Temperature: 41° F - 95° F
• Packaging Dimension: 9.25" L x 7.25" W x 3" H
• Resolution: Displayed up to 1:10,000; internal 1:520,000

Works With The Following Salter Brecknell Scales: PS500 QC Part #80345, PS1000 QC Part #80350 & PS2000 QC Part #80360.
