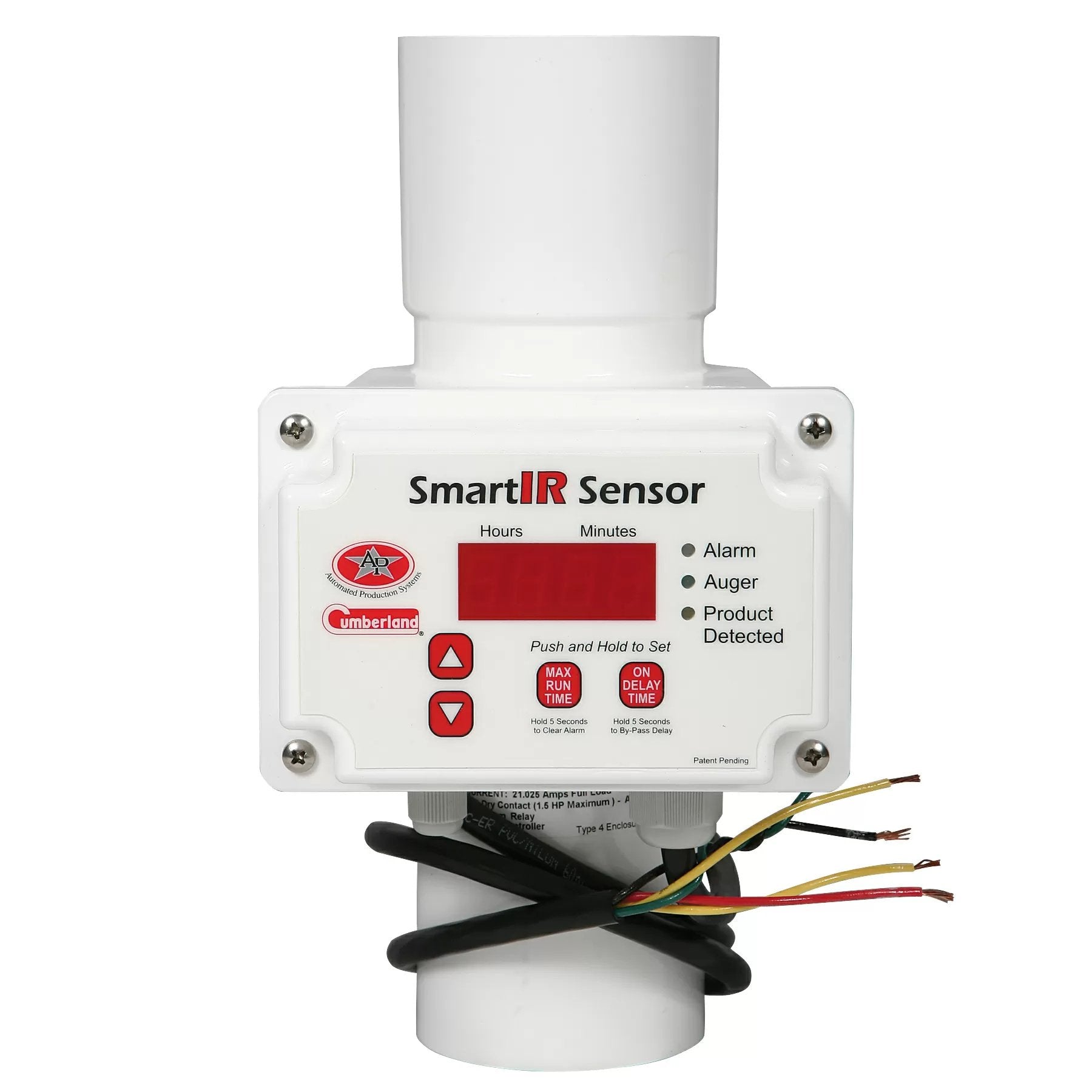

The SmartIR Feed Sensor Unit utilizes infrared sensing technology to detect the level of feed and control all functions of your feed delivery system. It does not require sensitivity adjustment and is not affected by changes in temperature, humidity, moisture content, or feed type.

Features

• Digital display with easy-to-see system status LEDs
• Push-button programming to adjust max run time & delay time
• 230 Volts, compatible with 1 PH and 3 PH Flex-Flo Control Units
• Motor Contact, 20 amp dry contact/Maximum 1.5 HP @ 230 Volts
• Alarm Contact, 1 amp/125 V dry contact
• On delay timer adjustment from 0 min to 24 hrs
• Maximum run timer adjustable from 1 min to 24 hrs
• Over Current Protection, PPTC Auto Reset Fuses
• 42" Cord, 16 AWG/5 Conductors
• Inlet has a 2.4" ID & Outlet has a 3.5" OD

Dimensions: 12" H x 6.4" W x 7.5" D
Weight: 6 lbs
