Hit Products Corp

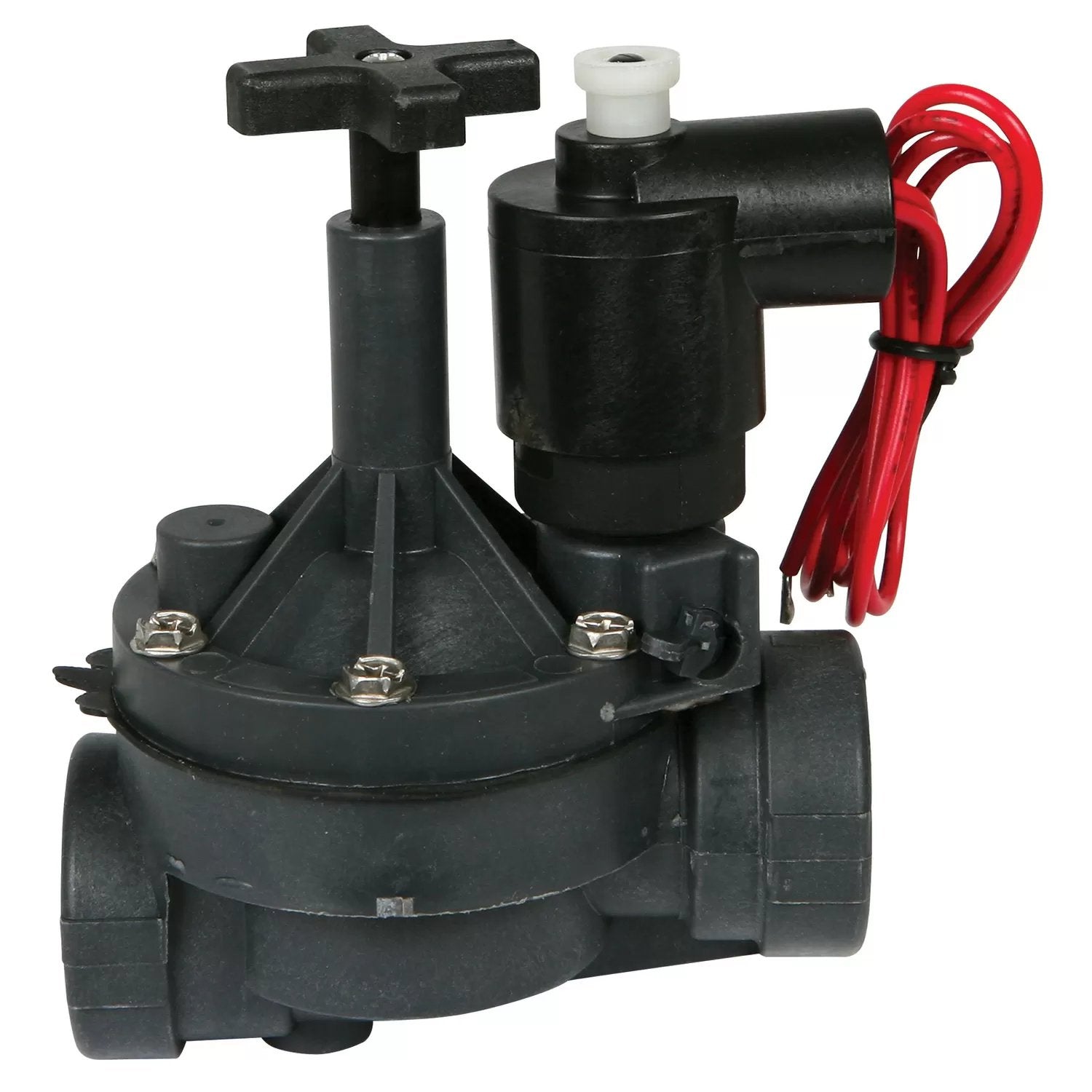

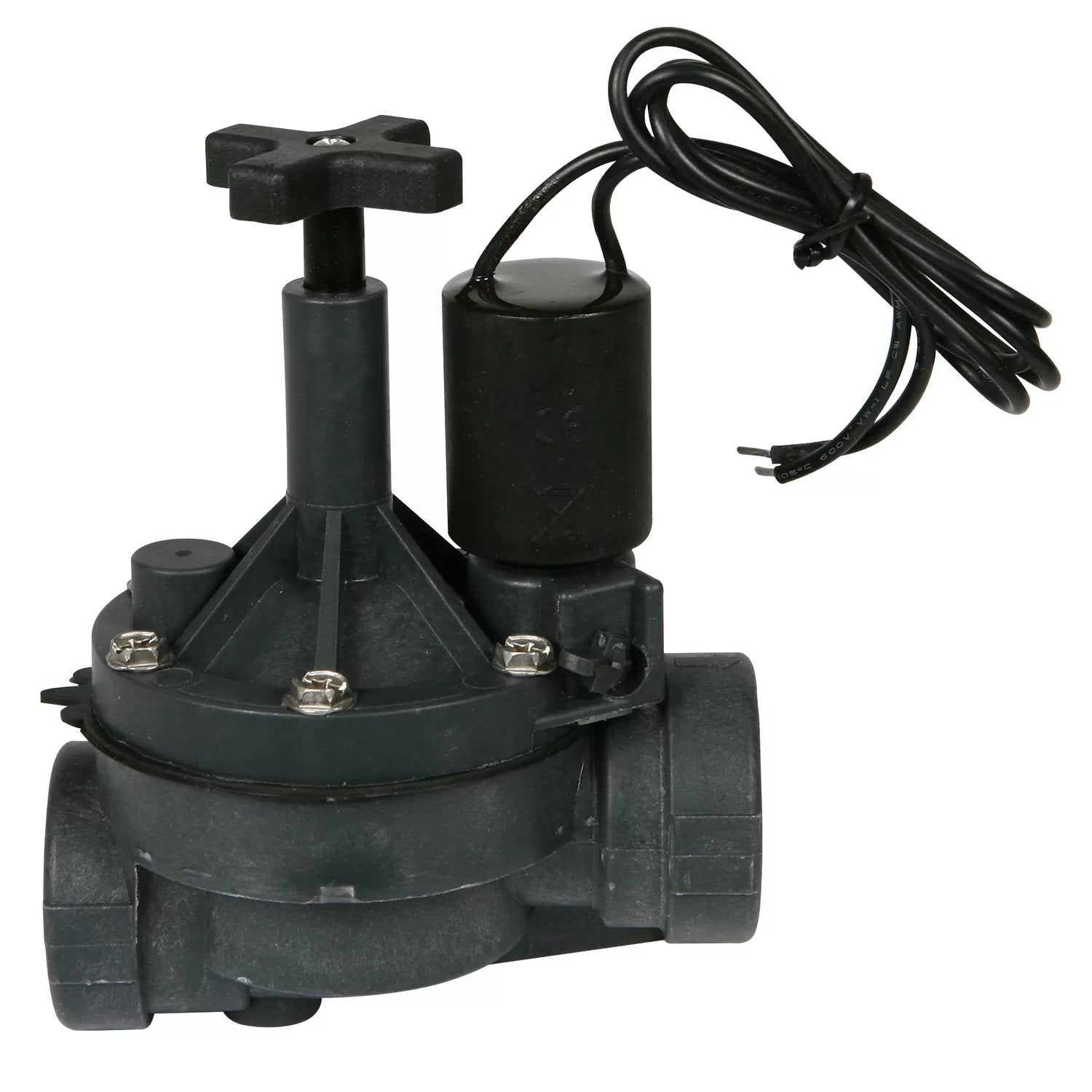

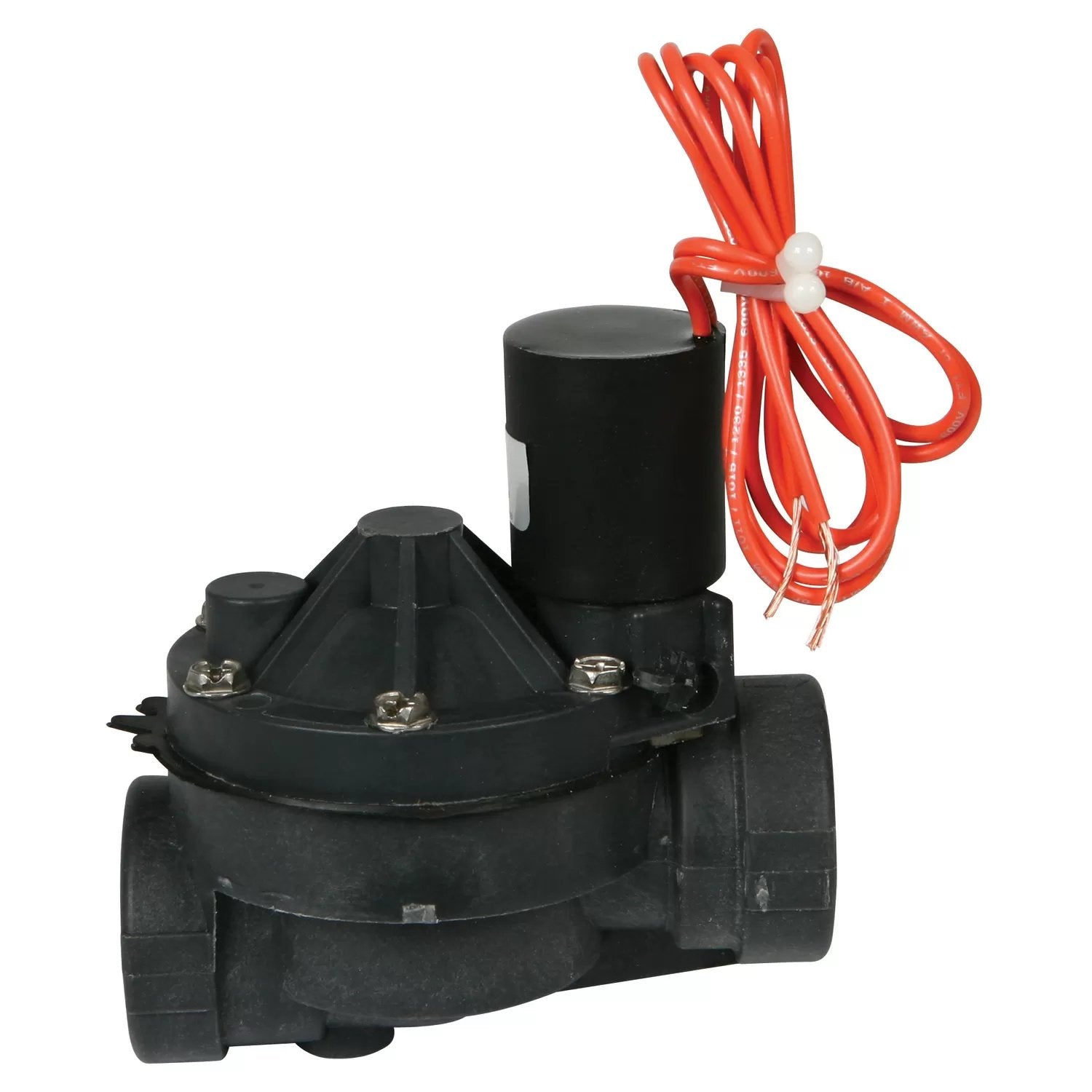

Solenoid Valve 1" Female Thread

QC Part #120150-220
$41 99
$41 99
Sale Sold out
Solenoid Valve with Flow Control.
Voltage
Ships within 2 Business Days

View full details
Description
Reviews
Q&A
Documents

More about Solenoid Valve 1" Female Thread

These 1" Female Thread Solenoid Valves handle 50 gallons per minute.

Features/Advantages:

  • Tough plastic valves have minimum pressure loss for maximum system efficiency
  • Flow control adjustable (exception #120150-220)
  • Rugged ribbed body/bonnet construction
  • Manual bleed control lever
  • Manually operable in case of power failure
  • Normally closed
  • Made of a commercial-grade glass poly-pro material

Specifications:

  • Operating Temp Range: Up to 150° F
  • Pressure Range: 10 PSI Min - 160 PSI Max
  • Flow Range: 5 - 50 GPM
  • Weight: 3 lbs.

1" Options:

  • #120150-24 - 24 Volt
  • #120150 - 110 Volt
  • #120150-220 - 220 Volt
Filter by rating

Customer Reviews

Based on 14 reviews
93%
(13)
7%
(1)
0%
(0)
0%
(0)
0%
(0)
C
C&G
Good product

As described and works very well.

B
Bryan
Quality product

Bought this as a replacement for my open loop geothermal system. Works great!

K
Kent
Great

Easy to install, works great

J
JS
PN 120150 Solenoid Valve - works fine but I only installed them today

Hooked up the solenoid valves today and they work fine. I have the [****] VAC coil version with the handle for "Flow Control". I assume I increase the flow by turning the handle CCW just like a faucet??? I want the valve to open wide open when I apply 120 VAC but you cannot see any change inside the valve when you hear the click when applying voltage to the coil. Nevertheless, the valve seems to open. One will need to pass about 14 GPM when it opens.... It could use a spec sheet telling how to adjust the flow and perhaps a note that you cannot see the valve open when you look inside with power on the coil.

k
krunch
awesome

great product, great price
